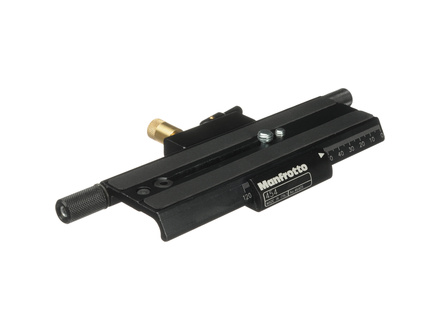

Manfrotto 454 - Micro-Positioning Sliding Plate is a quick release system that allows for some positioning within the clamp for fore-aft macro adjustments.

It is the ideal tool to make precise positioning movements to achieve the perfect framed shot, for macro photography, QTVR and other precise copy/repro work. This plate has finger-tip control for ultra-fine positioning, but has a simple lock-release lever for fast set-up.

Two plates can be interlocked at 90° for full lateral/forward/back movement over 120mm. Made of extruded aluminium, the plate has 1/4"-20 and 3/8" holes and screws for tripod and camera mounting.

Technical Specifications

• Attaches by: 1/4" and 3/8" screws attachment type
• Attachment: 3/8" female thread attachment type
• Depth: 5.75 cm
• Height: 1.5 cm
• Length: 18.0 cm
• Load capacity: 8 kg
• Maximum length: 120.0 mm
• Weight: 0.45 kg
