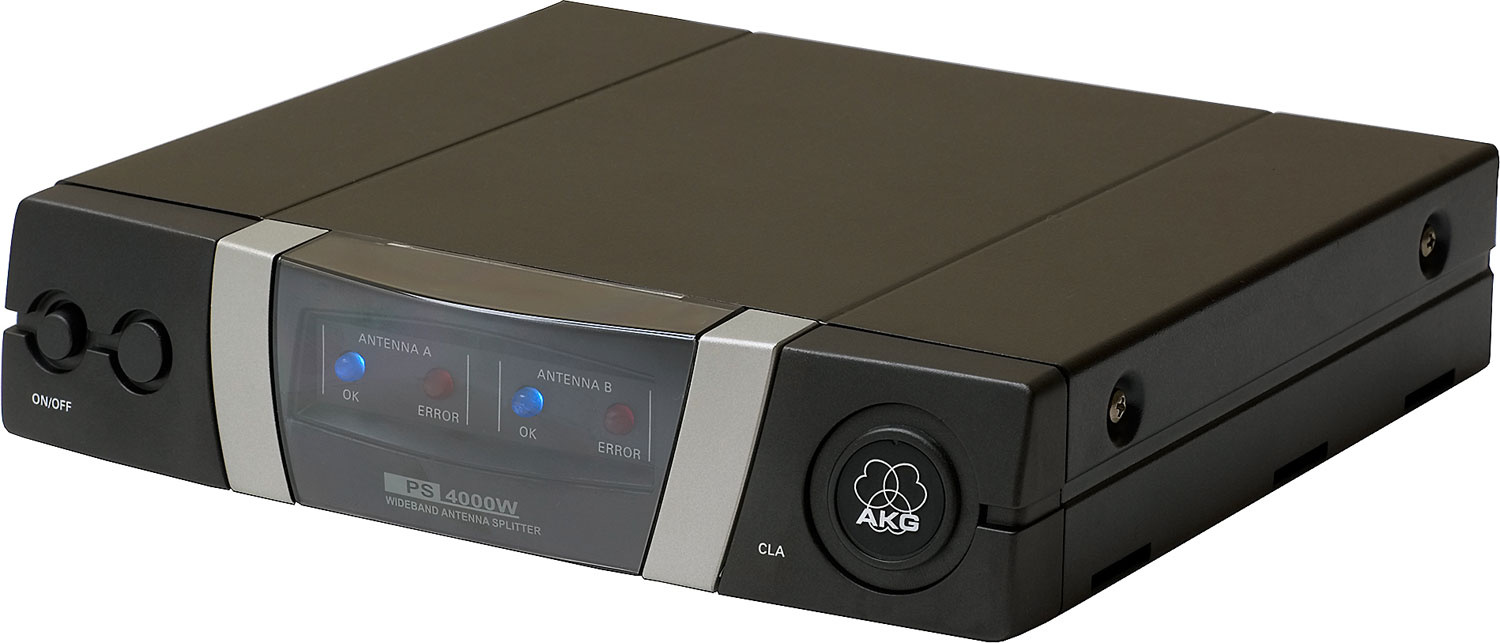

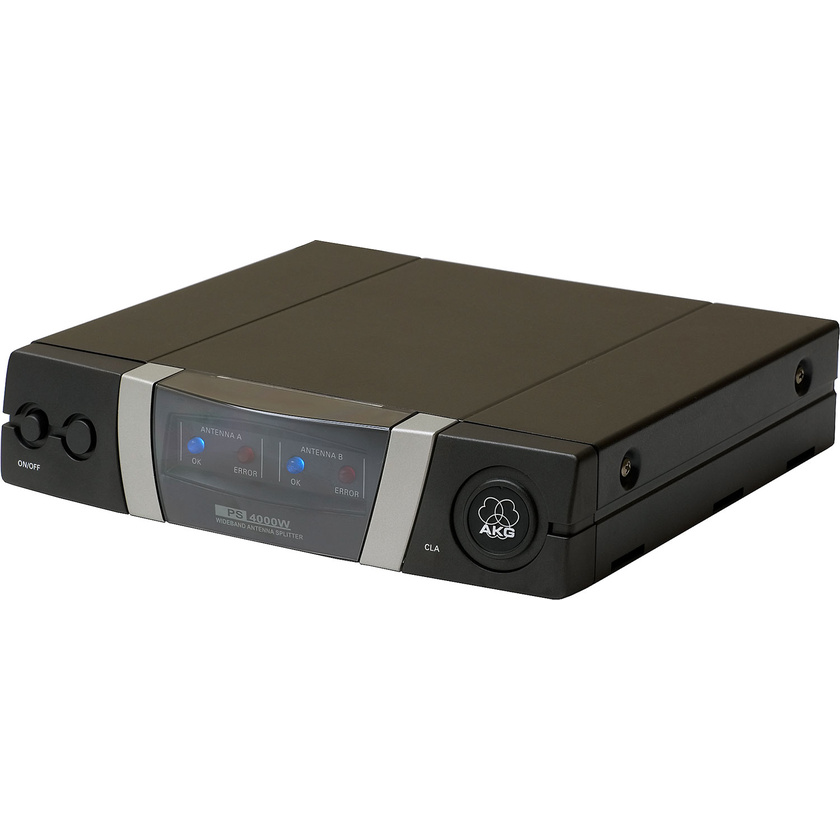

Multi-coupler splitter with all-metal case for SR4000, SR470 or SR450 receivers
365 MHz bandwidth for use with all WMS4000, WMS470 or WMS450 channels
Adjustable cable attenuation compensation
2 BNC antenna inputs, 4 diversity output pairs on 8 BNC sockets
Expansion outputs for daisy-chaining antenna splitters for more than 50 receivers
One or several PS4000W multi-couplers can be used to set up complex systems with long antenna cables, distributed antenna networks for room sharing applications, or to feed the signal from a single antenna pair to several receivers. The combination of dedicated optional AKG antennas and the high quality amplification and distribution circuitry of the PS 4000 W ensure maximum reliability of reception. Highly visible channel LEDs provide a clear status indication even from a distance. A gain selector switch allows you to compensate for cable attenuation to ensure optimum signal quality.
The PS4000W also powers active antennas through the antenna cables, eliminating the need for separate antenna power cables.
Technical Specifications:
- Carrier frequency range: 500 to 865 MHz
- Attenuation: 0, 2, 4, 6, 8, 10, 12, 14 dB, selectable
- RF inputs: 2 BNC sockets, 50 ohms
- RF outputs: 10 BNC sockets, 50 ohms
- Operating voltage: 12 VDC
- Dimensions: 200 x 190 x 44 mm
- Weight: 970 g
