Audac AMP23 Web-Based Mini Stereo Amplifier (2 X 15w)
Product #76134 | SKU AMP523
Usually ships in 2 - 3 weeks
0.0 (no ratings yet) Thanks for your rating!


Audac AMP23 Web-Based Mini Stereo Amplifier (2 X 15w)

Product #76134 | SKU AMP523
Usually ships in 2 - 3 weeks


Product Features
  • S-Box™ modular enclosure
  • 4 x Stereo line inputs
  • 1 x Balanced microphone input
  • Phantom power & priority on microphone
  • TCP/IP & RS-232 Control
Customer Reviews
0.0 (no ratings yet) Thanks for your rating!
Product Details
  • Product: #76134
  • SKU: AMP523

Related Products
KEF Q750 Floorstanding Speaker Pair (Walnut) KEF Q750 Floorstanding Speaker Pair (Walnut)
KEF Q150 Bookshelf Speakers (Black) Pair KEF Q150 Bookshelf Speakers (Black) Pair

Description

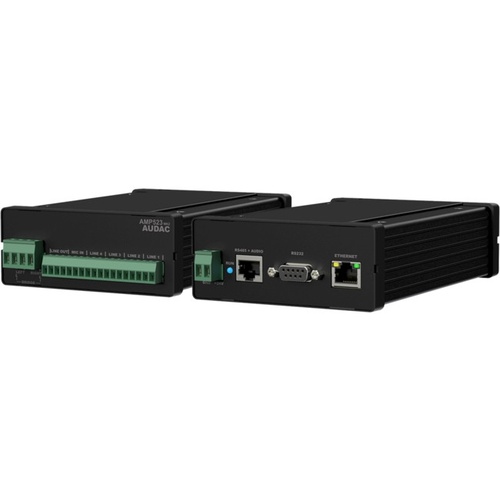

The Audac AMP23 Web-Based Mini Stereo Amplifier (2 X 15w) is a mini stereo amplifier with an integrated web based control unit featuring four stereo line inputs and one balanced microphone input with phantom power. It has an output power rating of 2 x 15 Watt.

The simple and compact but versatile functionalities make it perfectly suited for small speaker systems requiring compact and economical audio solutions which are comprehensive and easily controllable. Some typical applications are classrooms where the audio system will be used in combination with a smartboard, offices and meeting rooms where the music should switch automatically from background music to speech or playback when the presentation starts, ?. and many other similar applications.

Key Features:

  • S-Box™ modular enclosure
  • 4 x Stereo line inputs
  • 1 x Balanced microphone input
  • Phantom power & priority on microphone
  • TCP/IP & RS-232 Control
  • Stereo line output
  • 2 x 15 Watt output power (1 x 30 Watt in Bridge)
  • Class-D Technology
  • Compact & lightweight Class-D amplifier

The compact size and very high efficiency even makes it possible to hide it in a closet, on a false ceiling or mount it under a desk or table.

The various stereo line inputs allow simultaneous connections for different sources such as laptops, CD or MP3 players and tablets while having a microphone connected.

The switching between the inputs, volume regulation and other function controls can be done in multiple ways: an integrated website makes it possible to control all the functions from any computer with a web browser without requiring additional software while the RS232 connection makes it possible to control the AMP523 with any device supporting serial communication such as a computer or even a home or industrial automation system.

Another option is to control the system through smartphones and tablets using the special developed AUDAC Touch™ app.

Using the freely available AUDAC Touch™application for smart devices guarantees total system control and configuration from any device on any location and at any time.

To make the installation even more complete, an optional MWX43 or MWX45 wall panel can be installed to control the signal routing and volume level from one or multiple fixed locations.

The Class-D amplifier technology, standby mode and included switching power supply makes this device compliant to the highest energy efficiency and environmental requirements.

Specifications

Product type Power Amplifiers
Rated ouput power (1kHz @ 4 Ohms) 2 x 15 W
Rated ouput power (1kHz @ 8 Ohms) 2 x 7.5 W
Rated ouput power (1kHz @ 8 Ohms, bridged) 30 W
Total Harmonic Distortion (THD) < 0.1 %
Signal/noise ratio> 95 dB
Crosstalk < -75 dB
Input impedance (kOhms) 20 kOhm
Protection circuits limiter , short circuit , thermal overload
Line inputs 4
Line input connectors 18-pin Euro Terminal Block (Pitch - 3.81 mm)
Mic inputs 1
Mic inputs 18-pin Euro Terminal Block (Pitch - 3.81 mm)
Loudspeaker outputs 1
Speaker output connections 4-pin Euro Terminal Block (Pitch - 5,08 mm)
Operating voltage 24 V DC
Width 108 mm
Height 44 mm
Depth 165 mm
Weight 0,92 kg

In The Box

  • Audac AMP23 Web-Based Mini Stereo Amplifier (2 X 15w)

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review
Details
  • Product: Audac AMP23 Web-Based Mini Stereo Amplifier (2 X 15w)
  • Manufacturer: Audac
  • Model: AMP523
  • SKU: AMP523
  • RM Product #: 76134
