The 105 Series is a high quality UHF camera-mount wireless system that features 92 User-Selectable frequencies to assure you of always finding a "free" channel.

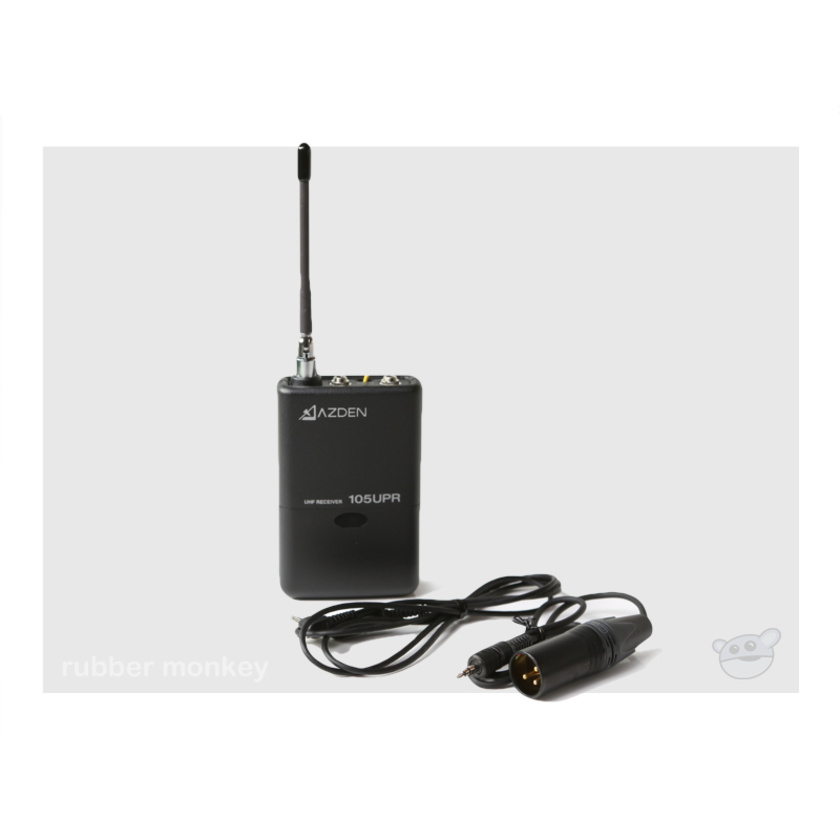

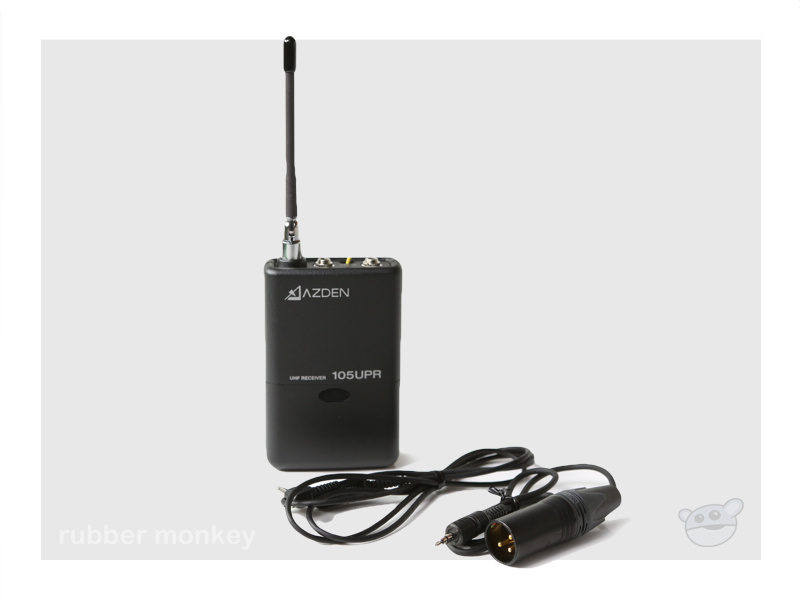

The series consists of the 105UPR On-Camera receiver, the 15BT Belt-Pack transmitter, the 15HT Handheld microphone/transmitter and the 15XT Plug-In transmitter.
SYSTEM FEATURES
Compact Camera-Mount System 92 Selectable UHF Freq. (566.25-589.75 MHz) New, Pivoting High-Gain Antenna New Case Design with Attached Shoe-Mount 3.5 mm Mini-Jack Output w/ Supplied 26" Mini-Cable Optional Balanced 46" Mini-To-XLR Cable (MX-1) Headphone Output with Volume Control Power ON/Receiving Signal LED Powered by 2 “AA” Batteries (not included)
Specifications - Overall System:
Operating Range: 200-300 feet
Operating Freq.: UHF band, 566.25 MHz to 589.75 MHz
Number of Channels: 92 User-selectable
Modulation Mode: FM
Oscillator: Phase Lock Loop synthesizer
Operating Temp. Range: -10 C to +50 C (-50 F to -122 F)
Specifications - 105UPR Receiver:
Frequency Response: 50 Hz - 12 kHz
RF Squelch level: -92 dBm
Adjacent Channel Selectivity: = 67 dBm
Intermodulation: = 62 dBm
Noise Reduction: Expander(TOKO)
Audio Output: -22 dBm (balanced) @ 1 kHz ± 40 kHz
Output Impedance: 2 k O (balanced)
S/N Ratio: >57 dB (± 5 kHz)
Power Require.: 2 “AA” Batteries (Alkaline)
6-8 hours runtime
