The Biamp Devio DCM-1 Ceiling Microphone includes Beamtracking™ technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The DCM-1 microphone actively tracks and intelligently mixes conversations from around the table, allowing far-end conference participants to experience the conversation naturally. The Devio DCM-1 has four software-selectable elevation angle modes for optimal sound pickup, and a second DCM-1 microphone can be added to the meeting room if needed.

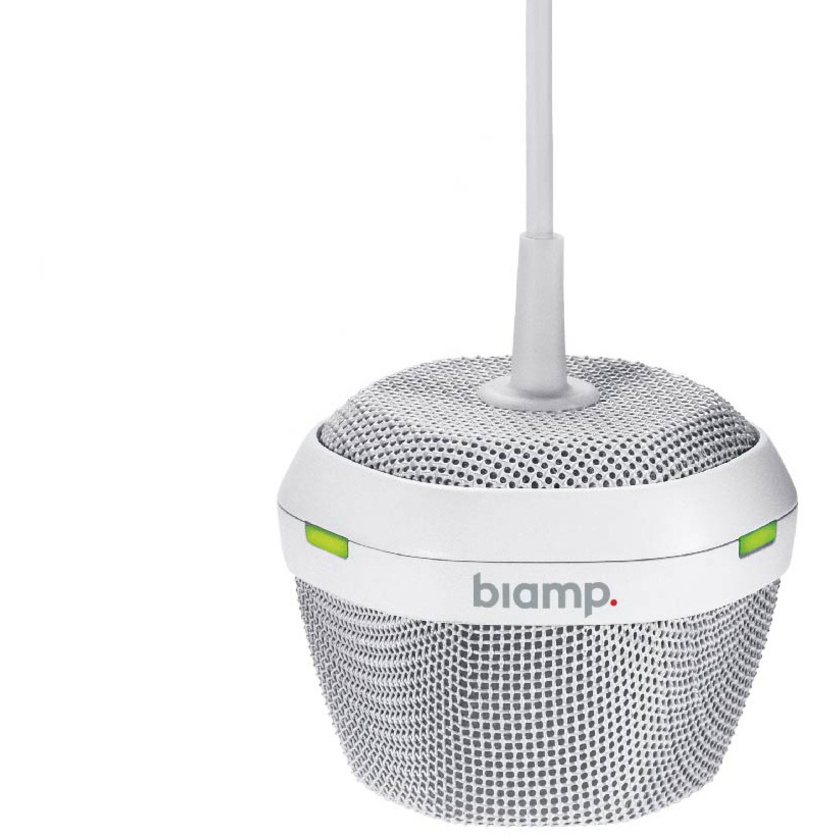

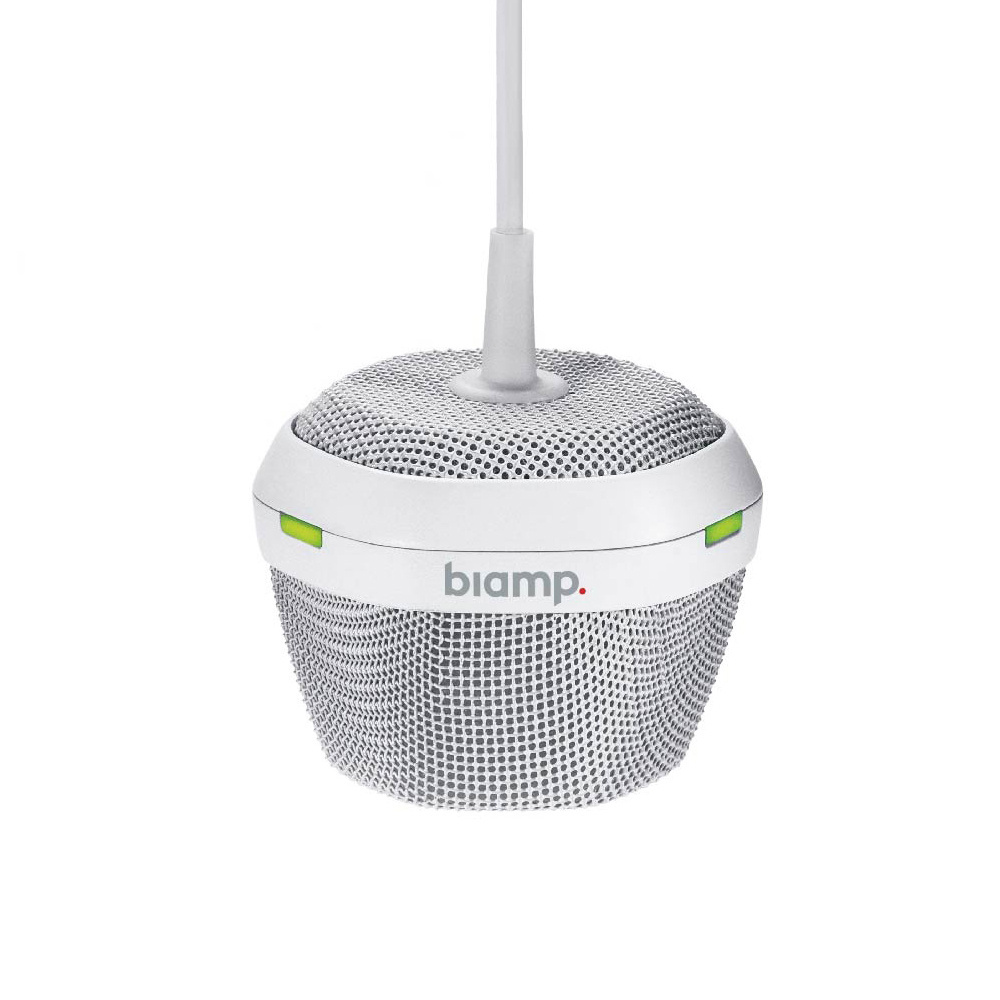

Biamp Devio DCM-1 Ceiling Microphone (White)
Usually ships in 1 - 2 weeks
Our Price
$1,799
Usually ships in 1 - 2 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 1 - 2 weeks.
Deliver to
Auckland
for $7.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
1 - 2 weeks
Click & Collect
Features
- Beamtracking technology
- Three 120-degree zones
- Three LED mute status indicators
- Four selectable elevation angle modes
- User-adjustable mic height
- Easy single-cable installation process
Description
Specifications
| Pendant Microphone | |
| Microphone Technology | 8-Element Digital Array |
| Frequency Response (150 Hz - 16 kHz) | ± 3 dB |
| Polar Pattern | Active Beamformed |
| Sensitivity (94 dB SPL, 1 kHz) | > 70 dB, A-Weighted |
| Maximum SPL (at 0.5% THD) | 106 dB SPL |
| Dynamic Range (THD+N < 10%) | 92 dB, A-Weighted |
| Automatic Noise Suppression | 4 modes: Off, Low (Default), Medium, High |
| Selectable Elevation Modes | 4 modes: multiple 30° selections |
| Power | < 1 W, phantom powered from plenum box |
| Indicators | Mute Indicator (Green/Red LED) |
| Digital Interface | Custom/Proprietary |
| Connector | Custom 2-pin (cable length 10 feet [3 meters]) |
| Overall Dimensions | |
| Height | 2 inches (51 mm) |
| Width | 2.5 inches (63 mm) |
| Depth | 2.5 inches (63 mm) |
| Weight | 0.38 lbs (0.17 kg) |
| Plenum Box | |
| Power | < 1 W, phantom powered from SCR-20/SCR-25 |
| Indicators | Connection Indicator (Green LED) |
| Digital Interface | Custom/Proprietary |
| Connectors | Two RJ-45: one between DCM-1 plenum box and SCR-20/SCR-25, the other between DCM-1 plenum box and additional DCM-1 plenum box |
| Max Distance Between Devices | 49 feet (15 meters) from SCR-20/SCR-25 to DCM-1; 49 feet (15 meters) for daisy-chained connections between DCM-1 microphones |
| Overall Dimensions | |
| Height | 2 inches (51 mm) |
| Width | 4 inches (102 mm) |
| Depth | 5.4 inches (137 mm) |
| Weight | 0.86 lbs (0.39 kg) |
| Environmental | Ambient Operating Temperature Range: 32-104° F (0-40° C) |
| Humidity | 0-95% relative humidity (non-condensing) |
| Altitude | 0-6,600 ft (0-2000 m) MSL |
In The Box
- Biamp Devio DCM-1 Ceiling Microphone (White)
