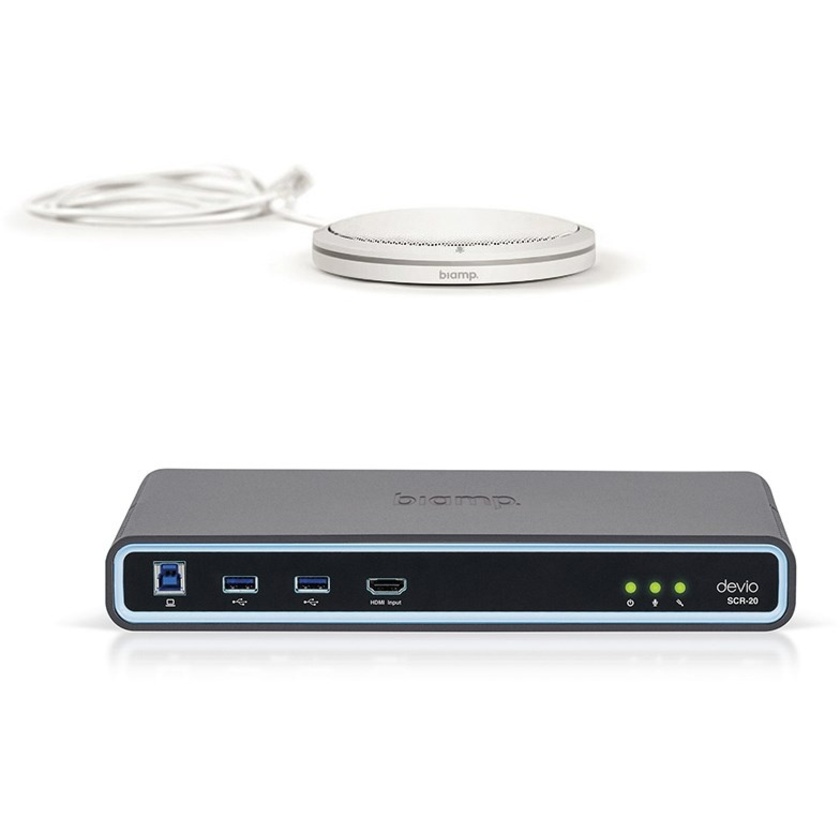

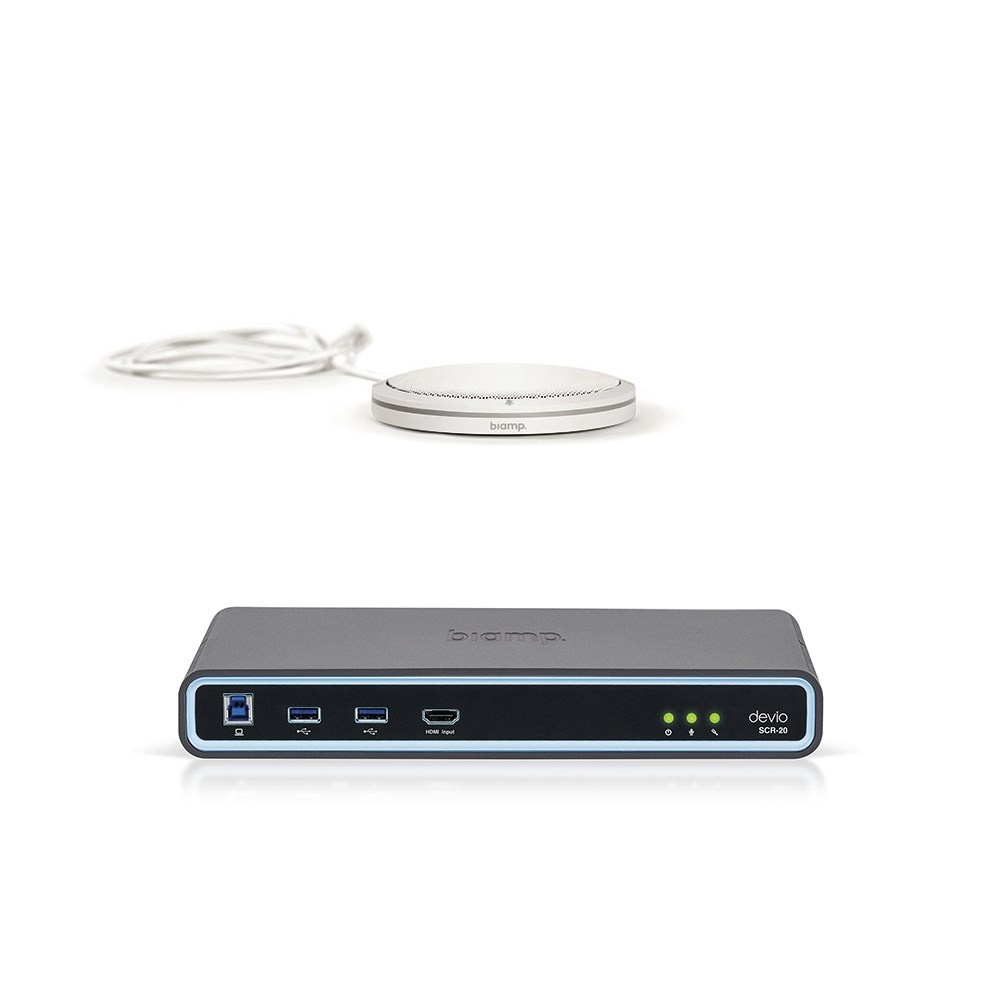

| Devio SCR-20 |
|
| Network Connection |
RJ-45 with Ethernet cable (Cat 5e and above) |
| Front Panel Indicators |
Mic Status Indicator (Green/Red LED)
Room Tuning Indicator (Green/Red LED)
Power Indicator (Green/Red LED) |
| Power |
24V DC 60W |
| Video |
|
| Supported Resolutions |
640 x 480p (60 Hz)
720 x 480p (60 Hz)
720 x 576p (50 Hz)
1280 x 720p (50/60 Hz)
1920 x 1080p (50/60 Hz)
3840 x 2160p (30 Hz) |
| Physical Interface |
HDMI |
| HDCP Support |
1.4 |
| HDMI Audio Formats |
2ch L-PCM, 44.1 kHz/48 kHz, 16-bit |
| Analog Audio Output (RCA) |
|
| Frequency Response (20 Hz - 20 kHz, FS) |
+0/-0.25 dB |
| THD+N (20 Hz - 10 kHz, 20 kHz B/W, FS) |
< 0.005% |
| Dynamic Range (THD+N < 0.005%) |
107 dB, A-Weighted |
| Output Impedance (unbalanced) |
100Ω |
| Maximum Output |
+8.5 dBu |
| Sampling Rate |
48 kHz |
| D/A Converters |
24-bit |
| SNMP |
See support website for the full list of attributes |
| Amplifier |
|
| Number of Channels |
1 |
| Continuous Power Output (THD+N < 0.025%) |
20 W into Rated Load Impedance |
| Frequency Response (20 Hz - 20 kHz) |
+0.2/-0.5 dB |
| THD+N (1 kHz, 20 kHz bandwidth, 1 W) |
< 0.03% |
| Dynamic Range (THD+N < 0.5%) |
100 dB, A-Weighted |
| Minimum Operational Load |
4Ω Intermodulation distortion |
| (SMPTE, 60 Hz/7 kHz, 4:1, 1W) |
< 0.07% |
| USB |
|
| Bit Depth |
24-bit |
| Sample Rate |
48 kHz |
| Device Charging |
**Up to 5 W |
| Overall Dimensions |
|
| Height |
1.8 inches (46 mm) |
| Width |
11.2 inches (284 mm) |
| Depth |
6.9 inches (175 mm) |
| Weight |
2.0 lbs (0.9 kg) |
| Environmental |
|
| Ambient Operating Temperature Range |
32-104° F (0-40° C) |
| Humidity |
0-95% relative humidity (non-condensing) |
| Altitude |
0-6,600 ft (0-2000 m) MSL |
| DEVIO SCR-25 |
|
| Network Connection |
RJ-45 with Ethernet cable (Cat 5e and above) |
| Front Panel Indicators |
Mic Status Indicator (Green/Red LED)
Room Tuning Indicato (Green/Red LED)
Power/Wireless Indicator (Green/Red/Blue LED) |
| Power |
24V DC 60W |
| Video |
|
| Supported Resolutions |
640 x 480p (60 Hz)
720 x 480p (60 Hz)
720 x 576p (50 Hz)
1280 x 720p (50/60 Hz)
1920 x 1080p (50/60 Hz)
*3840 x 2160p (30 Hz) |
| Physical Interface |
HDMI |
| HDCP Support |
1.4 |
| HDMI Audio Formats |
2ch L-PCM, 44.1 kHz/48 kHz, 16-bit |
| Headset |
|
| Frequency Response (200 Hz - 8 kHz, FS) |
±0.5 dB |
| THD+N (1 kHz - 4 kHz, 8 kHz B/W, FS) |
< 0.05% |
| Dynamic Range (THD+N < 0.05%) |
80 dB, A-Weighted |
| Maximum Output |
-3 dBu |
| Analog Audio Output (RCA) |
|
| Frequency Response (20 Hz - 20 kHz, FS) |
+0/-0.25 dB |
| THD+N (20 Hz - 10 kHz, 20 kHz B/W, FS) |
< 0.005% |
| Dynamic Range (THD+N < 0.005%) |
107 dB, A-Weighted |
| Output Impedance (unbalanced) |
100Ω |
| Maximum Output |
+8.5 dBu |
| Sampling Rate |
48 kHz |
| D/A Converters |
24-bit |
| Amplifier |
|
| Number of Channels |
1 |
| Continuous Power Output (THD+N < 0.025%) |
20 W into Rated Load Impedance |
| Frequency Response (20 Hz - 20 kHz) |
+0.2/-0.5 dB |
| THD+N (1 kHz, 20 kHz bandwidth, 1 W) |
< 0.03% |
| Dynamic Range (THD+N < 0.5%) |
100 dB, A-Weighted |
| Minimum Operational Load |
4Ω Intermodulation distortion |
| (SMPTE, 60 Hz/7 kHz, 4 |
1, 1W): < 0.07% |
| PARLÉ TTM-XEX |
|
| Microphone Technology |
16-Element Digital Array |
| Frequency Response (150 Hz - 16 kHz) |
± 3dB |
| Polar Pattern |
Beamformed |
| Sensitivity (94dB SPL, 1kHz) |
> 74dB |
| Maximum SPL (at 0.5% THD) |
109dB |
| Dynamic Range (THD+N < 10%) |
90dB, A-Weighted |
| Indicators |
Mute Indicator (Green/Red LED) |
| Digital Interface |
Custom/Proprietary |
| Connector |
RJ-45 (cable length 6.6 feet [2 meters]) |
| Overall Dimensions |
|
| Height |
0.7 inches (18 mm) |
| Diameter |
4.3 inches (110 mm) |
| Weight |
0.5 lbs (231 g) |
| Power |
Custom/Proprietary |
| Max Distance Between Devices |
33 feet (10 meters) between TTM-XEX and DSP host device |
| Environmental |
|
| Ambient Operating Temperature Range |
32 - 104° F (0 - 40° C) |
| Humidity |
0-95% relative humidity (non-condensing) |
| Altitude |
0-10,000 ft (0-3000m) MSL |
