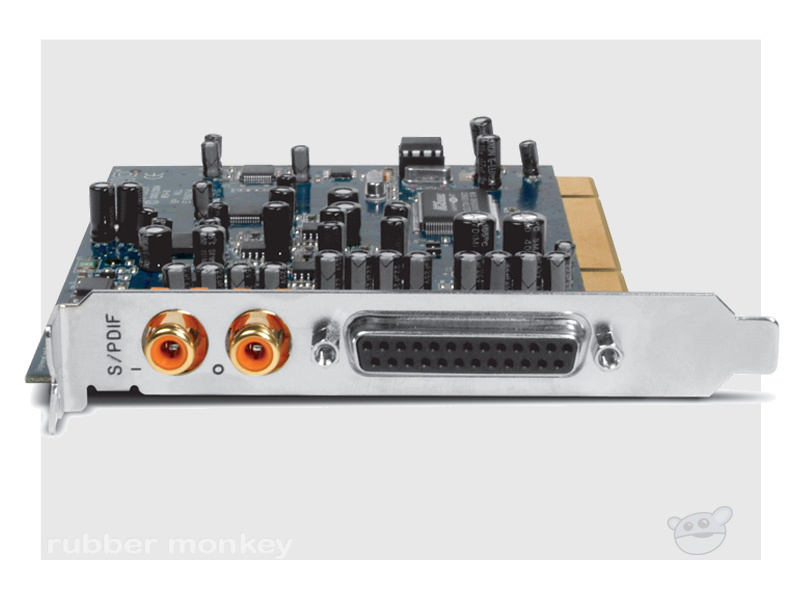

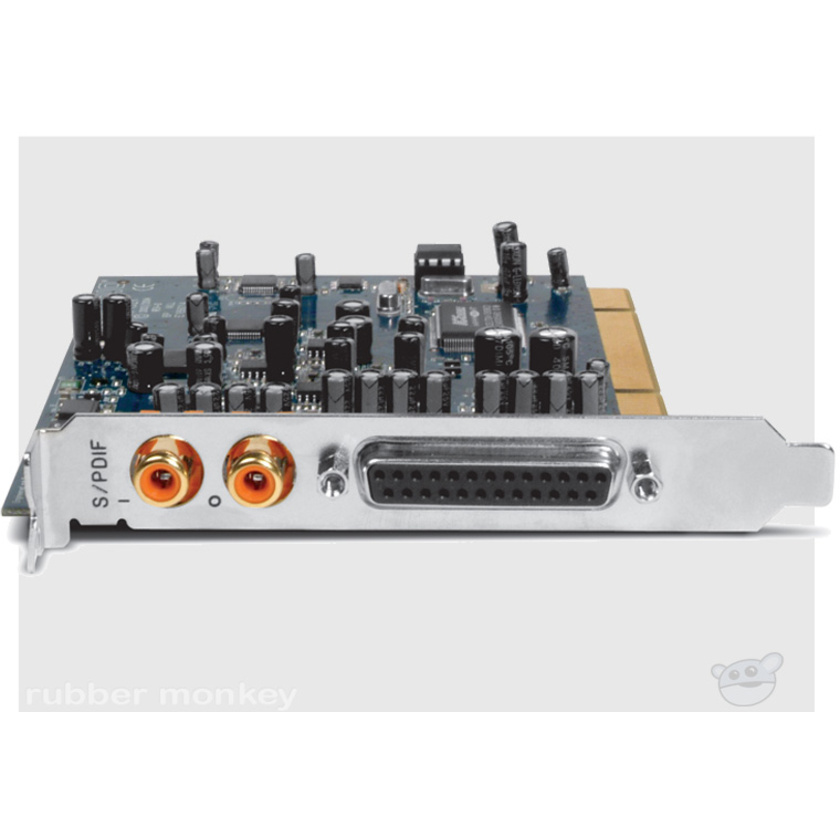

The Audiophile 192 from M-Audio is a 4 input/4 output PCI card interface that features high-definition 192kHz sampling rate, digital I/O, balanced analog I/O and an amazing signal-to-noise ratio. The card functions equally well for music production, mastering and critical listening.
The Audiophile 192 features rock-solid drivers and seamless integrates with both Mac and PC applications and has the ability to combine with multiple Delta cards in one system. The card is compliant with PCI 2.2 and 64-bit audio drivers so it is ready to take advantage of next-generation platforms and software.
Key Features:
- up to 24-bit/192kHz audio
- 2 balanced analog inputs (1/4” TRS)
- 2 balanced analog outputs (1/4” TRS)
- S/PDIF digital I/O (coaxial RCA connectors) with 2-channel PCM
- SCMS copy protection control
- digital I/O supports surround-encoded AC-3 and DTS pass-through**
- direct hardware input monitoring via separate balanced 1/4” TRS monitor outputs
- software routing of inputs and outputs
- digital I/O can be routed to/from external effects
- 16-channel MIDI I/O
- ASIO, WDM, GSIF 2 and Core Audio driver support for compatibility with most applications
- 64-bit driver support for Windows
- PCI 2.2 compatibility
- Apple G5 compatible - Incompatible exceptions
- includes Ableton Live Lite music production software, so you can make music right away
- works with other Delta cards*
Note:
* check www.m-audio.com for current system requirements
** Windows XP required for Dolby Digital and DTS “pass-through”; Mac OS 10.3.4 required for Dolby Digital and DTS “pass-through” with Apple DVD Player
Compatibility:
- ASIO
- WDM
- GSIF 2
- Core Audio
Minimum System Requirements:
Mac:
- Macintosh G4 733 MHz
- 512MB RAM
- OS X 10.1.5, 10.2.8, 10.3.8, 10.4, 10.5.1
- Available PCI slot
PC:
- Pentium 3 – 700 MHz, 256 MB RAM (192 and 96kHz operation)
- Pentium 3 – 500 MHz, 128 MB RAM (48kHz operation)
- DirectX 9.0b
- Windows XP (SP2)* or Windows 2000 (SP4) / Vista SP2 (32Bit , 64 Bit) / Win7 (32Bit , 64 Bit)
- Available PCI slot
More information about this product: (Link to - M-Audio Website)
