| Type |

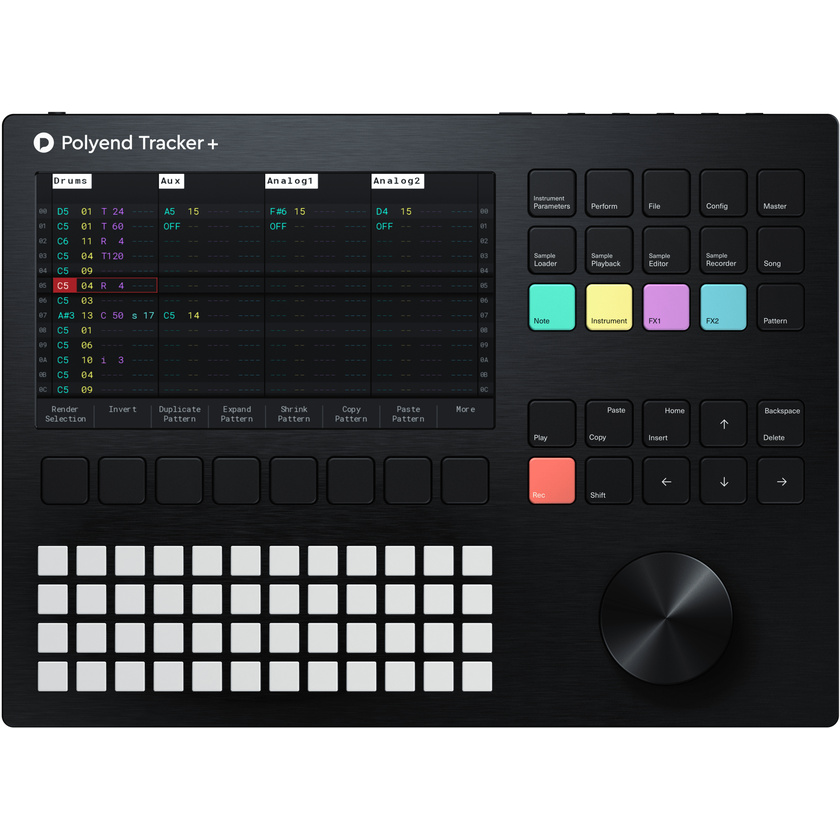

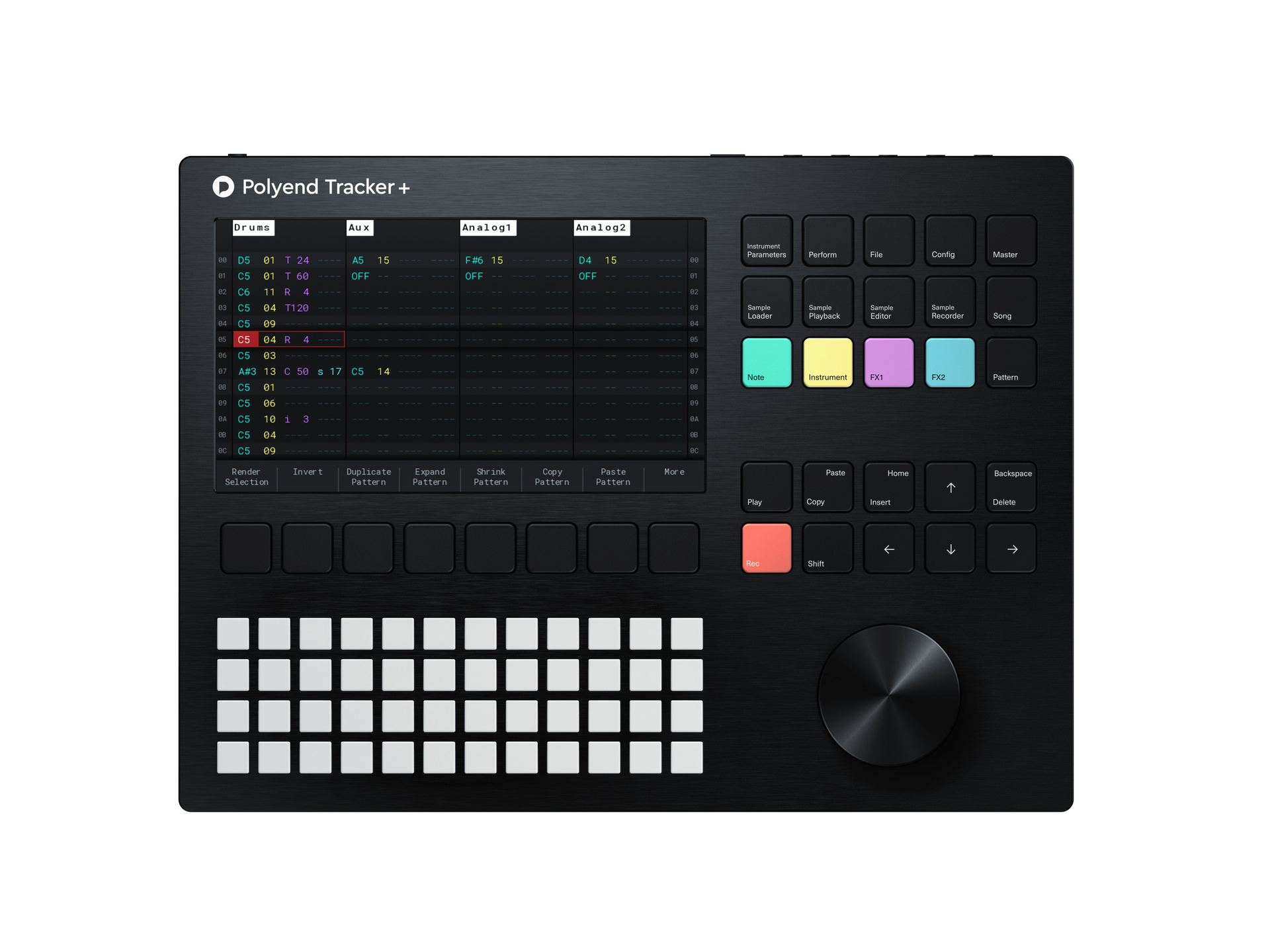

16 Track Drum Machine, Synthesiser and Stereo Sampler |
| Pads / Controllers |
48 x Backlit Silicone Pads, 1x encoder – Jog-wheel |
| Patterns |
256 Patterns per project, 128 Steps per Pattern |
| Sequencer |
8 universal tracks and 8 MIDI or Synths tracks |
| Screen / Display |
7" LCD display |
| Sounds |
4,000 Preloaded Samples
Song Arranger
Track Mixer
Global Mixer |
| Synthesiser |
ACD™ - transports you back to the golden age of electronic music with its recreation of iconic single-oscillator monophonic analog synths
FAT™ - a powerhouse synth engine that epitomizes the lush, vintage warmth of classic analog synthesizers with three virtual analog oscillators, an intuitive drift and detune control,
VAP™ - Virtual Analog Polysynth, boasting a dual-oscillator architecture and a versatile modulation matrix.
WTFM™ - unique 2-operator FM synth engine that utilizes WaveTable-based oscillators driven by a 3x feedback system.
PERC™ Drum Machine - an all-new drum machine instrument. Drum machine instruments are loaded into a synth engine, using only 1 voice but with up to 5 drums to be played at once. PERC fuses sampled sounds with digital synthesis, giving you the ability to create everything from classic 808 or 909 drums to modern glitchy madness,
Legacy: Wavetable, Granular |
| Sample pool memory |
11 min Mono, 5 min Stereo |
| Sampling |
1-shot, Forward, Backward, Ping-pong, Automatic Slicing (manual/automatic), Sample Editor, Sample Recorder (Mono/Stereo) |
| Effects |
Volume, Tuning, Panning, Resonant Filters, Delay and Reverb Sends, ADSRs, LFOs, Overdrive, Normalizer, Reverse, Overdrive, Delay, Bitcrusher, Chorus, Flanger, 3-band EQ, Compressor, WT Smoother, Timestretch and more
Performance mode FX: Volume, Panning, Tune, Low-pass cutoff, High-pass cutoff, Band-pass cutoff, Delay send, Reverb send, Sample position, Sample end, Sample playback, Colume LFO Speed, Panning LFO Speed, Finetune LFO Speed, Filter LFO Speed, Granular, Wavetavle LFO Speed, Step repeater, Pattern play mode, Pattern length, Bit Deph, Overdrive |
| Analog inputs |
1 x minijack 3.5mm (mic)
1 x minijack 3.5mm (line) |
| Analog outputs |
1 x minijack 3.5mm (Stereo OUT) |
| Headphones |
1 x minijack 3.5mm (Stereo OUT) |
| MIDI I/O |
MIDI IN – mini-jack 3.5mm
MIDI OUT – mini-jack 3.5mm |
| Other I/O |
USB-C
Audio over USB - 14 Tracks of Stereo Audio" |
| USB |
Type C |
| Storage |
microSD card 16GB (included) |
| Format |
WAV files |
| Software |
Polyend firmware 1.0 or next available on polyend.com |
| Power source |
5V/1A Power Supply (included) |
| Height |
1.3 inches (3.3 cm) |
| Width |
11.02 inches (28.2 cm) |
| Depth |
8.15 inches (20.7 cm) |
| Weight |
2.65 pounds (1.2 kg) |
