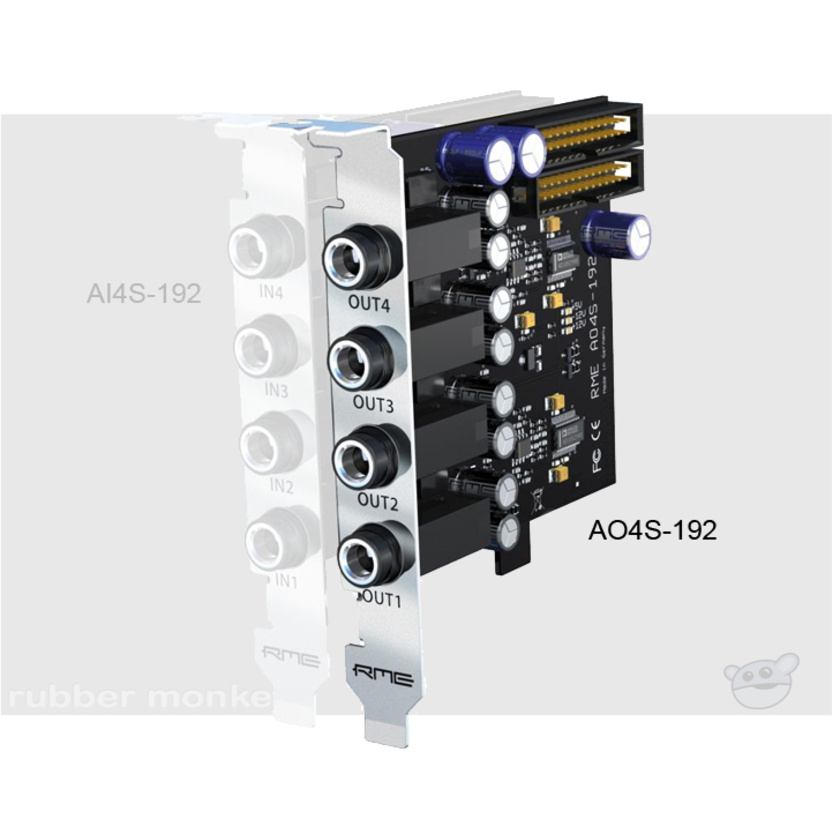

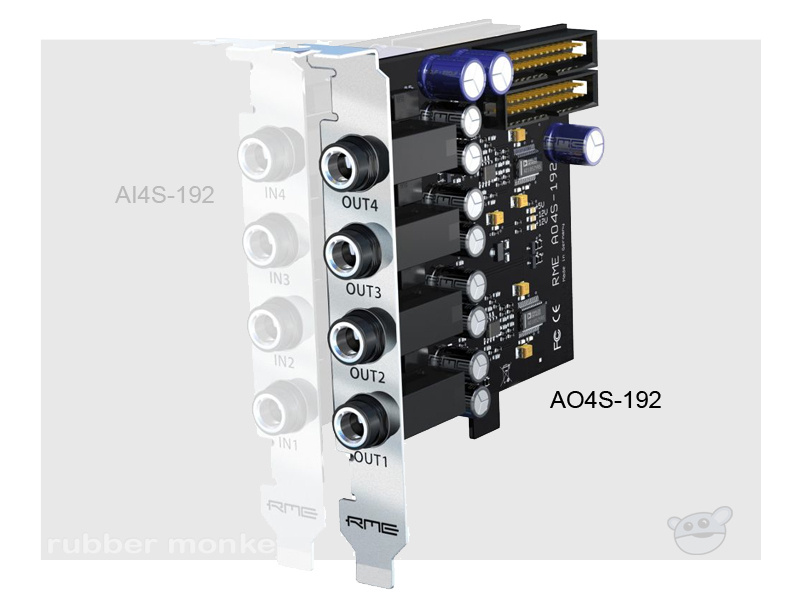

The AO4S-192 from RME is an expansion daughter board that adds four balanced analog outputs to the Hammerfall HDSP 9632 Link to the HDSP 9632 here. The card operates like any other 24-bit, 192kHz DA-converter except that it is connected internally.
The card provides either +4dBu or -10dBV outnput level adjustment along with specifications that include a 112dBA signal to noise ratio and the highest suppression of PC-noise.
The AO4S-192 offers four 1/4" TRS phone connectors and installation is easy and convenient using the supplied bracket. A card slot on the computer's motherboard is not required.
Note: No more than one AI4S-192 can be connected to each HDSP 9632.
Specifications:
Converters: 24-bit
Sample Rates: Up to 192kHz
Analog Inputs: not applicable
Analog Outputs: 4 x 1/4" TRS phone, servo balanced
Digital Inputs: No
Digital Outputs: No
MIDI In/Out: No
Sync In/Out: No
Headphone Output: No
THD + N: <-102dB, <0.0008 %
Dynamic Range: Not specified by manufacturer
Frequency Response: 1Hz to 70kHz, -0.5dB @ 192kHz
System Requirements: As per host system
Specialties: No slot needed on the motherboard
