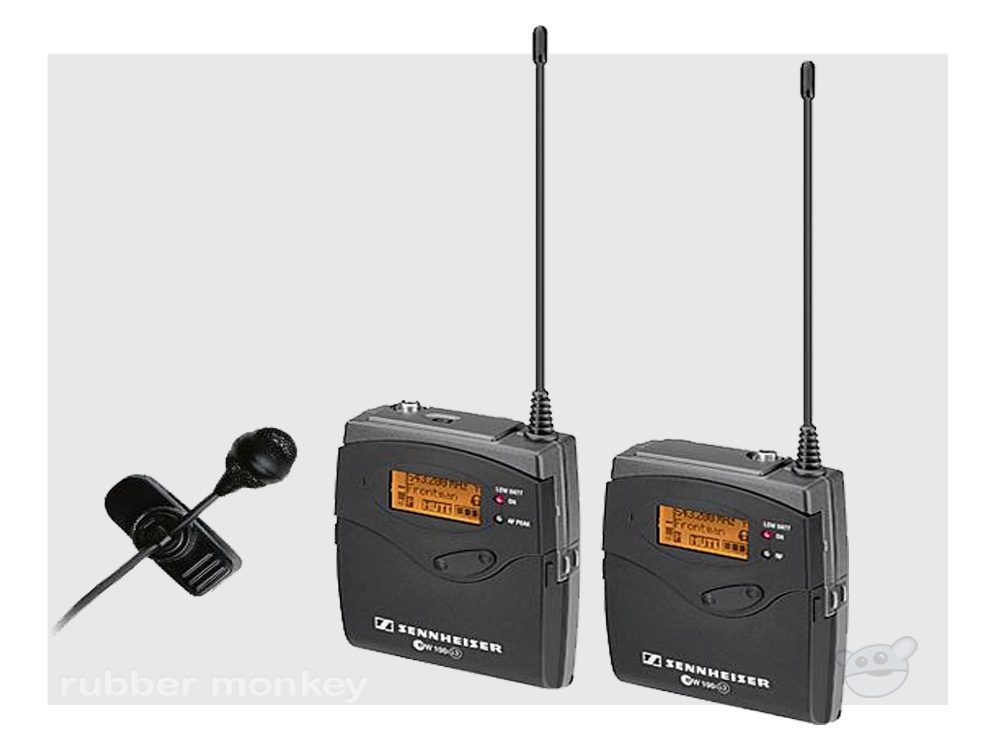

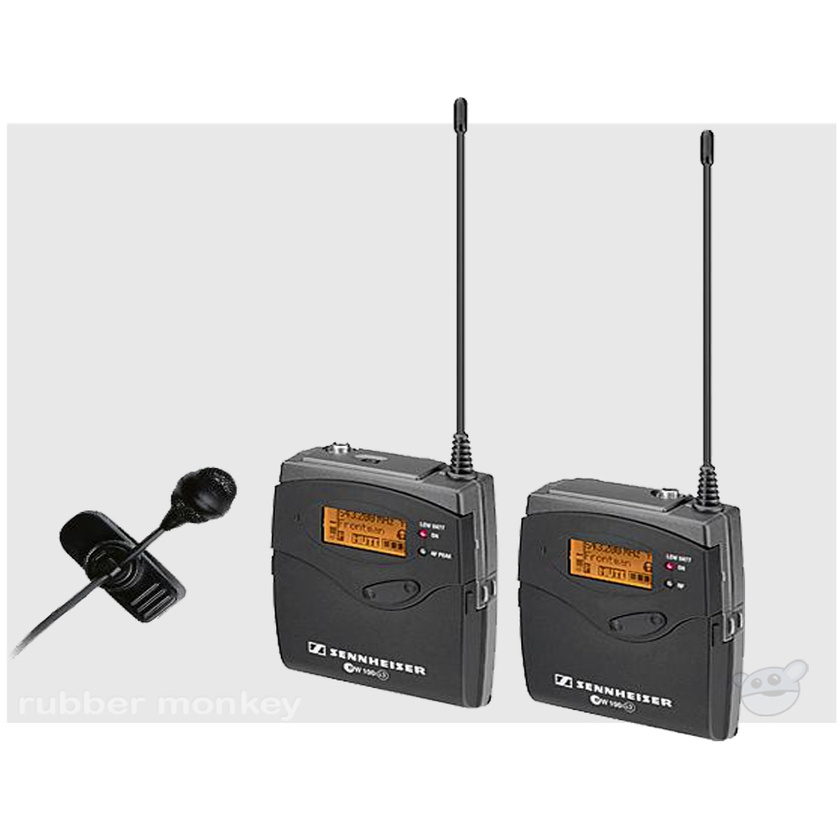

The Sennheiser EW122P G3-G - Portable System with ME2 Lavalier Mic is intended for portable wireless operation, such as video and field recording applications. This camera-mountable system includes a UHF diversity receiver, bodypack transmitter and ME4 lavalier microphone. The SK100 G3 bodypack transmitter and EK100 G3 receiver synchronize channel and frequency at the touch of a button.
An optional rechargeable battery pack allows you to charge batteries while they remain inside. The receiver includes the CA2 shoe mount adapter, for easy installation onto a camera shoe. A back-lit display allows for easy operation under dimly-lit conditions and its user friendly menu makes operation quick and easy. The EW112-p G3 is very well suited for video shoots of all kinds, ENG applications and field recording.
- Sturdy metal housing (transmitter and receiver)
- 42MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
- Enhanced frequency bank system with up to 12 compatible frequencies
- High-quality true diversity reception
- Pilot tone squelch for eliminating RF interference when transmitter is turned off
- Automatic frequency scan feature searches for available frequencies
- Enhanced AF frequency range
- Increased range for audio sensitivity
- Wireless synchronization of transmitters via infrared interface
- User-friendly menu operation with more control options
- Illuminated graphic display (transmitter and receiver)
- Auto-Lock function avoids accidental changing of settings
- HDX compander for crystal-clear sound
- Transmitter feature battery indication in 4 steps, also shown on receiver display
- Programmable Mute function
- Integrated Equalizer and Soundcheck mode
- Contacts for recharging BA 2015 accupack directly in the transmitter
- Wide range of accessories adapts the system to any requirement
Product Highlights
- Frequency: 566 - 608 MHz Frequency
- EK100 G3 Portable UHF Receiver
- SK100 G3 Bodypack Transmitter
- ME4 Cardioid Lavalier
- 42 MHz Bandwidth
- 1680 Tunable UHF Frequencies
- 12 Compatible Frequencies Per Bank
Delivery Includes
- 1 EK 100 G3 diversity receiver
- 1 SK 100 G3 bodypack transmitter
- 1 ME 4 clip-on microphone (cardioid)
- 1 CL 1 jack cable
- 1 CL 100 XLR cable
- 1 CA 2 camera adaptor
- 4 AA batteries
- Operating instructions
Specifications
System
- Type of System: Camera-Mountable, Diversity UHF Wireless Lavalier Mic System
- RF Carrier Frequency Range: 566 - 608 MHz
- Overall Frequency Response: 25Hz - 18kHz
- Signal-to-Noise Ratio: > / - 110dBA
- # Of Channels: 1680 (20 Channel Banks, 1 Fixed Bank, 12 Factory Preset Channels Each)
Receiver
- Type of Receiver: EK100 Portable Diversity Receiver
- Type of Outputs: 1/8" (3.5mm) Mini
- Headphone Monitoring: No
- Power Requirements: 1.5V
- Display: Back-lit LCD Display
- Mounting Options: CA2 Shoe Mount Adapter (Included)
- Antenna Type: BNC Type x2
- Dimensions: 82 x 64 x 25mm
- Weight: 160g
Transmitter
- Type of Transmitter: SK100 Bodypack Transmitter
- Type of Input Connector: Locking 1/8" (3.5mm) Mini
- Type of Microphone: ME4 Lavalier Microphone
- Polar Pattern: Cardioid
- Battery Type/Approx. Life: AA 1.5V Batteries x2 (8 Hours Typ.)
- Mute Switch: Programmable Mute Function
- Level Control: Yes
- Antenna Type: 1/4 Wave
- Display: Back-Lit LCD
- Dimensions (WxDxH): 82 x 64 x 25mm
- Weight: 160g
