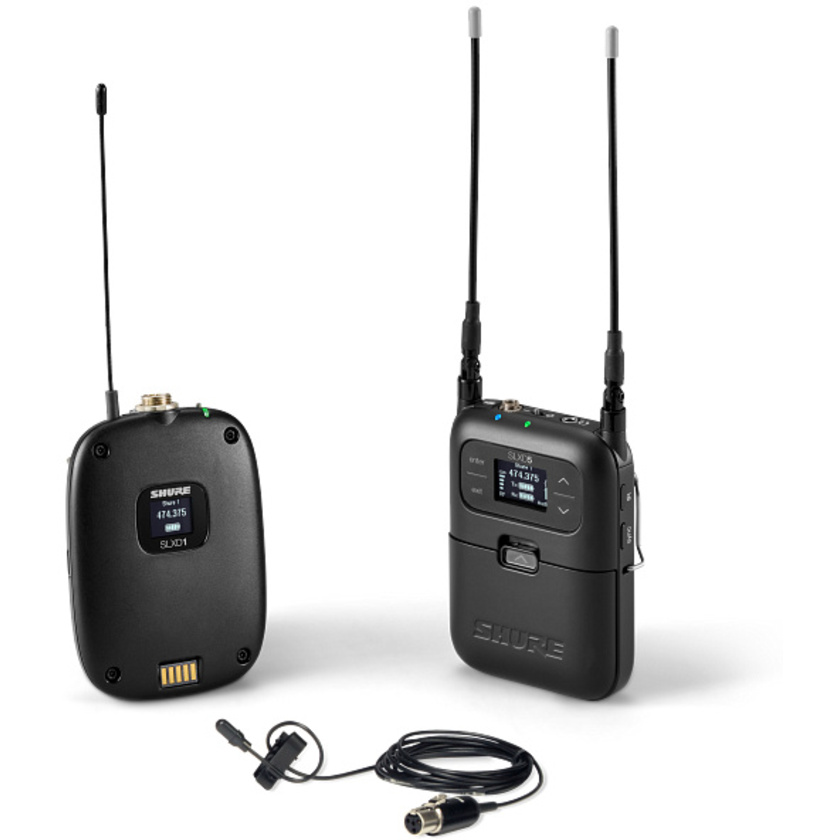

The Shure SLXD15/DL4B Wireless DuraPlex Omni Lavalier Mic System is designed to provide videographers, journalists, documentary makers, and content producers with a reliable wireless lavalier microphone system. It offers impeccable digital sound quality and ease of setup, even when using multiple microphones on set. The system revolves around a durable, single-channel receiver which can be conveniently mounted on a camera or used in an audio bag. It boasts a comprehensive range of features that guarantee professional-grade, broadcast-ready audio for filmmakers and creators who have high standards. This particular configuration includes a bodypack transmitter and a DL4 DuraPlex omnidirectional lavalier microphone in black.
Shure SLXD15/DL4B Wireless DuraPlex Omni Lavalier Mic System (L57: 650- 693 MHz) has been discontinued, here are some related products you might like:
Shure SLXD15/DL4B Wireless DuraPlex Omni Lavalier Mic System (L57: 650- 693 MHz)
This product is no longer available
Promotion
Giveaway! Go in the draw to win a Shure AONIC 40 Noise-Cancelling Wireless Over-Ear Headphones (Black) when purchasing select Shure gear! Entries close May 31st
Features
- Content Creation, Videos, Documentaries
- DL4 DuraPlex Miniature Omni Lav Mic
- Durable, Ergonomic Bodypack Transmitter
- 1-Channel Receiver for Camera or Bag Use
- 118 dB Dynamic Range, 24-Bit Audio
- Reliable Predictive-Diversity Antennas
Description
Specifications
| Key Specs | |
| Wireless Technology | Digital UHF |
| Included Transmitters | 1 x Bodypack with Microphone |
| Diversity | True Digital Diversity |
| Max Operating Range | 328' / 100 m |
| Receiver Type | Camera-Mount |
| Microphone Type | Lavalier |
| Polar Pattern | Cardioid |
| System | |
| Wireless Technology | Digital UHF |
| Number of RF Channel Frequencies | 1760 |
| Included Transmitters | 1 x Bodypack with Microphone |
| Diversity | True Digital Diversity |
| RF Frequency Band | L57: 650- 693 MHz |
| RF Bandwidth | 43 MHz |
| Frequency Step Size | 25 kHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 328' / 100 m |
| Max Transmitters per Band | 32 |
| Built-In Recorder | No |
| Timecode Support | Yes |
| Mobile App Compatible | No |
| Sample Rate/Resolution | 24-Bit |
| Latency | 3.2 ms |
| Dynamic Range | 118 dBA (Typical) |
| Encryption | No |
| THD | <0.02 % |
| Receiver | |
| Receiver Type | Camera-Mount |
| Mounting Options | Shoe-Mount (with Included Hardware) |
| Antenna | 2 x 1/4 Wave Flexible Whip, Fixed (Front-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Balanced Mic/Line Output 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output |
| Audio Output Level | 1/8" / 3.5 mm Output: +15 dB (Line Level, Balanced) |
| Phantom Power Protection | No |
| Frequency Response | 20 Hz to 20 kHz +1/-2 dB (Dependant on Mic) |
| Network I/O | No |
| USB/Lightning Connectivity | 1 x USB-C Female (Bus Power, Charging) |
| USB Class-Compliant | No, USB Charging/Power Only |
| Impedance | 1/8" / 3.5 mm Output: 450 Ohms (Balanced) |
| Spurious | Rejection: >75 dB |
| Power Requirements | Battery, Bus Power (USB) |
| Battery Type | 2 x AA (Included) 1 x Shure SB903 (Not Included) |
| Approx. Battery Life | 5.5 Hours |
| Display & Indicators | OLED (AF Level, Battery Status, Channel, Frequency, Group, Menu Navigation, Metering, Multifunction, Output Level, RF Level, Sync, Transmitter Battery Status) |
| Housing | Aluminium |
| Operating Temperature | 0 to 122°F / -17 to 50°C |
| Storage Temperature | -20 to 165°F / -28 to 73°C |
| Dimensions | 2.7 x 4.2 x 1" / 68 x 107 x 25.3 mm |
| Weight | 0.4 lb / 182 g |
| Transmitter | |
| Transmitter Type | Bodypack with Microphone |
| RF Output Power | 1 / 10 mW |
| Audio I/O | 1 x TA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking) |
| Pad | No |
| Muting | Off/On Switch |
| Audio Input Level | 8.2 dBV (Max) |
| Auto-Level Control | No |
| Gain Range | 0 +21 dB |
| Signal Processing | No |
| Frequency Response | 20 Hz to 20 kHz |
| Sync Method | IR |
| Antenna | 1/4 Wave External, Fixed |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) 1 x Shure SB903 (Not Included) |
| Battery Charging Time | 1.25 to 5.5 Hours |
| Approx. Battery Life | 8 Hours (Lithium Shure SB903) |
| USB/Lightning I/O | No |
| Display & Indicators | LCD (Battery Status, Channel, Group) |
| Housing | ABS, Plastic |
| Operating Temperature | 0 to 122°F / -17 to 50°C |
| Storage Temperature | -20 to 165°F / -28 to 73°C |
| Dimensions | 2.7 x 3.9 x 1" / 68 x 98 x 25.5 mm |
| Weight | 3.1 oz / 89 g |
| Microphone | |
| Microphone Type | Lavalier |
| Colour | Black |
| Sound Field | Mono |
| Capsule | MEMS |
| Polar Pattern | Cardioid |
| Frequency Range | 20 Hz to 20 kHz |
| SNR | 63 dB |
| Equivalent Noise Level | 31 dB A-Weighted |
| Maximum SPL | 132 dB SPL |
| THD | < 1% |
| Sensitivity | -42.5 dBV/Pa |
| CMRR | No |
| Dynamic Range | 101 dB |
| Output Connector | 1 x TA4F/Mini-XLR 4-Pin Female Unbalanced |
| Cable Length | 5.48' / 1.67 m |
| Operating Voltage | 5 V |
| Operating Current Consumption | 220 µA |
| Length | 0.6" / 14.5 mm |
| Diameter | 0.2" / 5.2 mm |
| Weight | 0.5 oz / 15 g |
In The Box
- Shure SLXD15/DL4B Digital Camera-Mount Wireless DuraPlex Omni Lavalier Mic System (L57: 650- 693 MHz)
- Shure SLXD5 Digital Camera-Mount Wireless Microphone Receiver (L57: 650- 693 MHz)
- Shure SLXD1 Digital Wireless Bodypack Transmitter (L57: 650- 693 MHz)
- Shure DL4 DuraPlex Omnidirectional Miniature Lavalier Microphone for Bodypack Transmitters (Black, TA4F)
- Camera Shoe Mount
- Windscreen
- Lapel Clip
- 3.5mm TRS Cable for Camera
- AA Battery
Reviews
(no ratings yet)Details
- Product: Shure SLXD15/DL4B Wireless DuraPlex Omni Lavalier Mic System (L57: 650- 693 MHz)
- Manufacturer: Shure
- Model: SLXD15-DL4B
- SKU: SLXD15-DL4B
- RM Product #: 111762
- Length Meters: 1.67 m
- Length Feet: 5.48 ft
- System Type: Lavalier System
- Warranty: 2 year manufacturer warranty (excluding consumable e.g. lithium-ion batteries).
