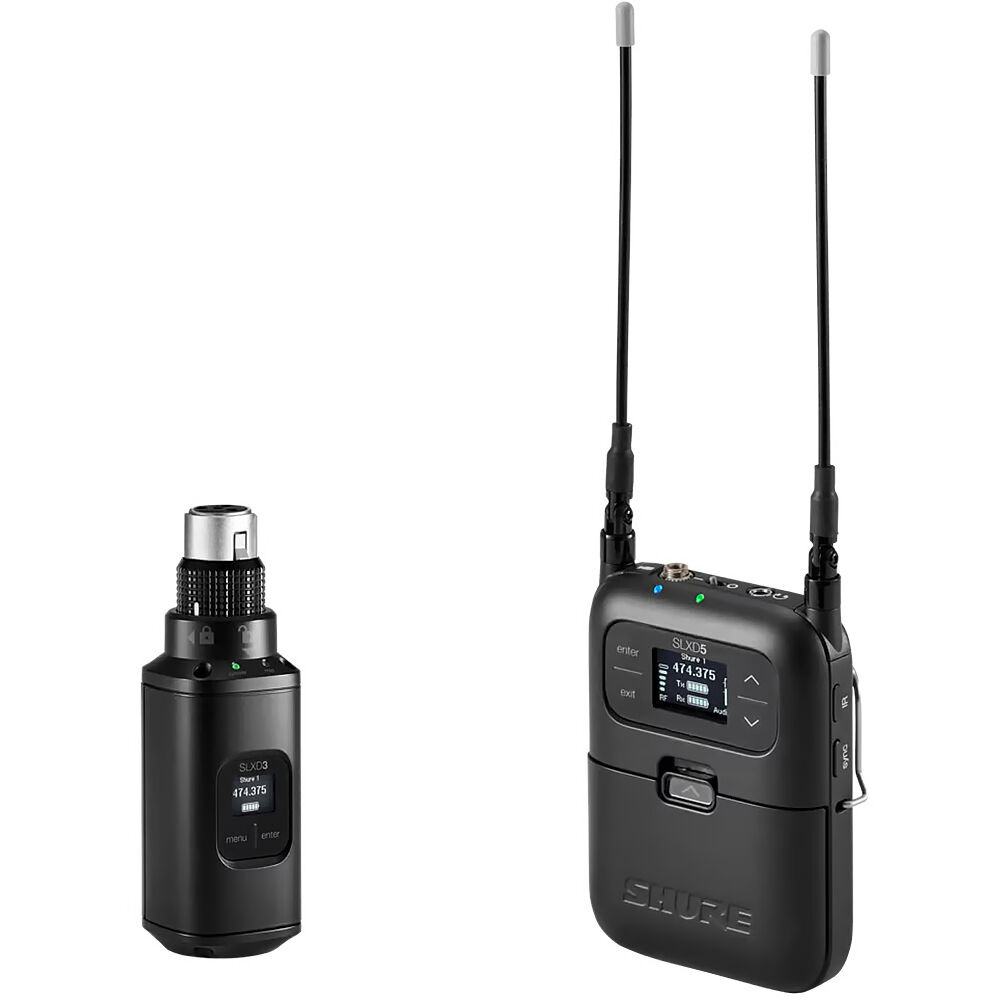

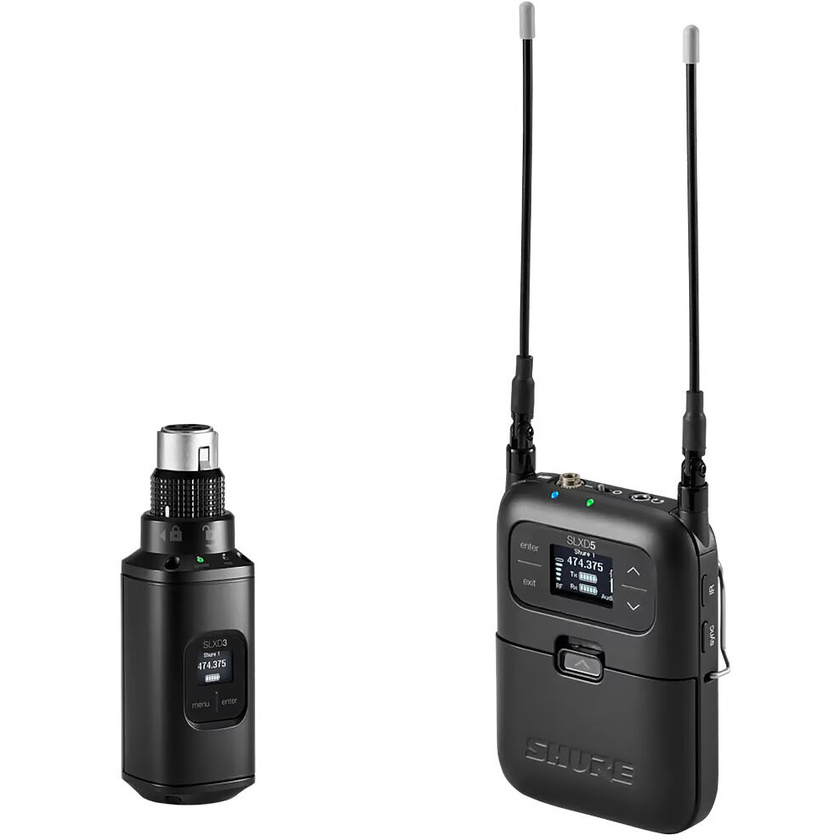

The Shure SLXD35 Digital Camera-Mount Wireless Plug-On Transmitter System presents a wireless plug-on transmitter system designed for videographers, journalists, documentary makers, and content producers. It guarantees high-quality digital sound and offers simplicity in setup, even when multiple microphones are used on set. The system includes a durable, single-channel receiver that can be mounted on a camera or used in an audio bag. With its extensive range of features, the SLXD35 ensures professional-grade sound and delivers broadcast-ready results, making it an excellent choice for professionals in the news and content creation industry. This particular configuration features a handheld plug-on transmitter with a secure locking connector, making it compatible with any XLR microphone of your preference (microphone sold separately).
Shure SLXD35 Digital Camera-Mount Wireless Plug-On Transmitter System (L57: 650- 693 MHz) has been discontinued, here are some related products you might like:
Shure SLXD35 Digital Camera-Mount Wireless Plug-On Transmitter System (L57: 650- 693 MHz)
This product is no longer available
Promotion
Giveaway! Go in the draw to win a Shure AONIC 40 Noise-Cancelling Wireless Over-Ear Headphones (Black) when purchasing select Shure gear! Entries close May 31st
Features
- Content Creation, Videos, Interviews
- Plug-On Transmitter with No Microphone
- 48 or 12V Phantom Power
- 1-Channel Receiver for Camera or Bag Use
- 118 dB Dynamic Range, 24-Bit Audio
- Reliable Predictive-Diversity Antennas
Description
Specifications
| Key Specs | |
| Wireless Technology | Digital UHF |
| Included Transmitters | 1 x Plug-On |
| Diversity | True Digital Diversity |
| Max Operating Range | 328' / 100 m |
| Receiver Type | Camera-Mount |
| System | |
| Wireless Technology | Digital UHF |
| Number of RF Channel Frequencies | 1760 |
| Included Transmitters | 1 x Plug-On |
| Diversity | True Digital Diversity |
| RF Frequency Band | L57: 650- 693 MHz |
| RF Bandwidth | 43 MHz |
| Frequency Step Size | 25 kHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 328' / 100 m |
| Max Transmitters per Band | 32 |
| Built-In Recorder | No |
| Timecode Support | Yes |
| Mobile App Compatible | No |
| Sample Rate/Resolution | 24-Bit |
| Latency | 3.2 ms |
| Dynamic Range | 118 dBA (Typical) |
| Encryption | No |
| THD | <0.02 % |
| Receiver | |
| Receiver Type | Camera-Mount |
| Mounting Options | Shoe-Mount (with Included Hardware) |
| Antenna | 2 x 1/4 Wave Flexible Whip, Fixed (Front-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Balanced Mic/Line Output 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output |
| Gain Range | 0 to +12 dB (3 dB Steps) |
| Pad | 12 dB |
| Audio Output Level | 1/8" / 3.5 mm Output: +15 dB (Line Level, Balanced) |
| Phantom Power Protection | No |
| Frequency Response | 20 Hz to 20 kHz +1/-2 dB (Dependant on Mic) |
| Network I/O | No |
| USB/Lightning Connectivity | 1 x USB-C Female (Bus Power, Charging) |
| USB Class-Compliant | No, USB Charging/Power Only |
| Standalone Audio Interface Capable | No |
| Impedance | 1/8" / 3.5 mm Output: 450 Ohms (Balanced) |
| Approximate RF Sensitivity | -97 dBm |
| Spurious | Rejection: >75 dB |
| Power Requirements | Battery, Bus Power (USB) |
| Battery Type | 2 x AA (Included) 1 x Shure SB903 (Not Included) |
| Approx. Battery Life | 5.5 Hours |
| Display & Indicators | OLED (AF Level, Battery Status, Channel, Frequency, Group, Menu Navigation, Metering, Multifunction, Output Level, RF Level, Sync, Transmitter Battery Status) |
| Housing | Aluminium |
| Operating Temperature | 0 to 122°F / -17 to 50°C |
| Storage Temperature | -20 to 165°F / -28 to 73°C |
| Dimensions | 2.7 x 4.2 x 1" / 68 x 107 x 25.3 mm |
| Weight | 0.4 lb / 182 g |
| Transmitter | |
| Transmitter Type | Plug-On |
| RF Output Power | 1 / 10 / 30 mW |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Input (Locking) |
| Included Cable Connector | No |
| Phantom Power | +12 V +48 V |
| Muting | Off/On Switch |
| Audio Input Level | +20.5 to -3.5 dBV |
| Auto-Level Control | No |
| Gain Range | 0 +21 dB |
| Signal Processing | No |
| Frequency Response | 20 Hz to 20 kHz (Dependant on Mic) |
| Sync Method | IR |
| Antenna | Internal |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) 1 x Shure SB903 (Not Included) |
| Battery Charging Time | 1.25 to 5.5 Hours |
| Approx. Battery Life | 8 Hours (Lithium Shure SB903) |
| USB/Lightning I/O | No |
| Display & Indicators | OLED (Battery Status, Channel, Group) |
| Housing | Metal |
| Operating Temperature | 0 to 122°F / -17 to 50°C |
| Storage Temperature | -20 to 165°F / -28 to 73°C |
| Dimensions | 1.6 x 5 x 1.6" / 41 x 126 x 41 mm |
| Weight | 7.1 oz / 200 g |
In The Box
- Shure SLXD35 Digital Camera-Mount Wireless Plug-On Transmitter System (L57: 650- 693 MHz)
- Shure SLXD5 Digital Camera-Mount Wireless Microphone Receiver (L57: 650- 693 MHz)
- Shure SLXD3 Digital Plug-On XLR Transmitter (L57: 650- 693 MHz)
- Camera Shoe Mount
- 3.5mm TRS Cable for Camera
- AA Battery
Reviews
(no ratings yet)Details
- Product: Shure SLXD35 Digital Camera-Mount Wireless Plug-On Transmitter System (L57: 650- 693 MHz)
- Manufacturer: Shure
- Model: SLXD35
- SKU: SLXD35
- RM Product #: 111766
- System Type: Lavalier System
- Warranty: 2 year manufacturer warranty (excluding consumable e.g. lithium-ion batteries).
