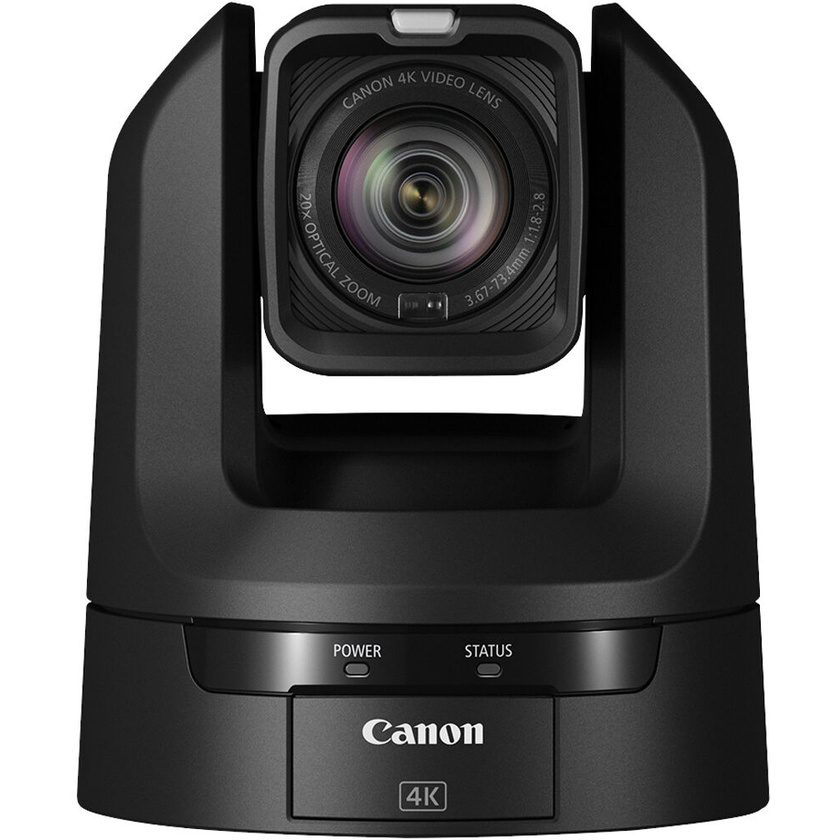

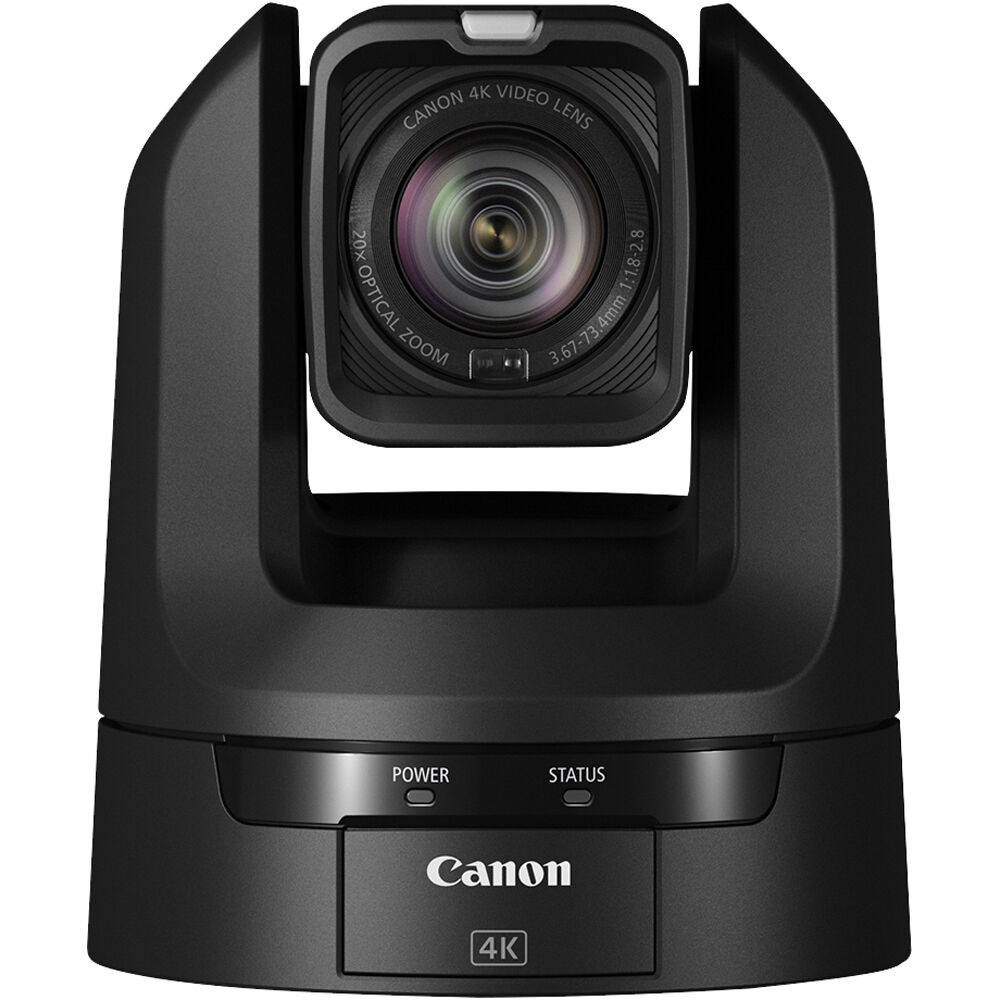

Canon CR-N100 4K NDI PTZ Camera with 20x Zoom (Satin Black)

Name: Canon CR-N100 4K NDI PTZ Camera with 20x Zoom (Satin Black)
Brand: Canon
SKU: 108350
Price: 3619.00 NZD
Availability: BackOrder

Product #108350 | SKU 6527C003AA | Canon

| Write a review


Key Specs
Image Sensor	1/2.3"-Type CMOS
Sensor Resolution	Actual: 21.14 Megapixel Effective: 8.29 Megapixel (3840 x 2160)
Shutter Type	Electronic Rolling Shutter
Shutter Speed	1/2000 to 1/6 Second
Optical Zoom Ratio	20x
Max Digital Zoom	20x
External Recording Modes	4:2:2 10-Bit via HDMI 3840 x 2160 at 23.98/25/29.97 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 4:2:0 8-Bit via RJ45 3840 x 2160 at 5/14.99/29.97 fps 1920 x 1080p at 5/14.99/29.97/59.94 fps 1280 x 720 at 5/14.99/29.97/59.94 fps 640 x 360 at 5/14.99/29.97/59.94 fps USB HD (1920 x 1080p) at 5/12 fps HD (1280 x 720) at 5/12 fps 640 x 360 at 5/12 fps
IP Streaming	H.264, NDI	HX, RTMP, RTMPS, RTP, RTSP, SRT 3840 x 2160 at 5.00p, 14.99p, 29.97p 1920 x 1080 at 5.00p, 14.99p, 29.97p, 59.94p 1280 x 720 at 5.00p, 14.99p, 29.97p, 59.94p 640 x 360 at 5.00p, 14.99p, 29.97p, 59.94p
PoE Support	PoE+ 802.3at
Imaging
Image Sensor	1/2.3"-Type CMOS
Sensor Resolution	Actual: 21.14 Megapixel Effective: 8.29 Megapixel (3840 x 2160)
IR Cut Filter	No
Built-In ND Filter	None
Image Stabilisation	Optical in Integrated Lens
Focus Control	Autofocus Manual Focus
Exposure Control
Shutter Type	Electronic Rolling Shutter
Shutter Speed	1/2000 to 1/6 Second
Gain	0 to 36 dB
Minimum Illumination	1.5 Lux at 1/30 Shutter Speed
Flip / Mirror Support	Image Flip, Mirror (Vertical)
White Balance	2000 to 15,000K Presets: AWB, Manual, Set A, Set B
Lens
Focal Length	3.7 to 73.4mm (35mm Equivalent: 29.3 to 601mm)
Optical Zoom Ratio	20x
Max Digital Zoom	20x
Field of View	Horizontal: 65.6 to 3.6° Vertical: 39.8 to 2°
Maximum Aperture	f/1.8 to 2.8
Minimum Focus Distance	Wide: 0.4" / 1.0 cm Telephoto: 23.6" / 60.0 cm
Video Capture
External Recording Modes	4:2:2 10-Bit via HDMI 3840 x 2160 at 23.98/25/29.97 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 4:2:0 8-Bit via RJ45 3840 x 2160 at 5/14.99/29.97 fps 1920 x 1080p at 5/14.99/29.97/59.94 fps 1280 x 720 at 5/14.99/29.97/59.94 fps 640 x 360 at 5/14.99/29.97/59.94 fps USB HD (1920 x 1080p) at 5/12 fps HD (1280 x 720) at 5/12 fps 640 x 360 at 5/12 fps
Embedded Audio	HDMI
Broadcast Output	NTSC/PAL
Gamma Curve	Rec709, Standard
IP Streaming	H.264, NDI	HX, RTMP, RTMPS, RTP, RTSP, SRT 3840 x 2160 at 5.00p, 14.99p, 29.97p 1920 x 1080 at 5.00p, 14.99p, 29.97p, 59.94p 1280 x 720 at 5.00p, 14.99p, 29.97p, 59.94p 640 x 360 at 5.00p, 14.99p, 29.97p, 59.94p
Control
Presets	100 via IP, VISCA
Move Speed	Pan: 2 to 300°/sec Tilt: 0.2 to 170°/sec
Movement Range	Pan: 340° (-170 to 170°) Tilt: 130° (-30 to 100°)
Tally Light	Yes
Supported Control Protocols	Canon XC IR RS-422 VISCA
Interface
Video I/O	1 x HDMI (Unspecified Signal) Output 1 x RJ45 (NDI) Output 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Output
Audio I/O	1 x 1/8" / 3.5 mm TRS Stereo Microphone Input
Other I/O	1 x RJ45 (RS-422, VISCA) Input 1 x USB-A Input
Built-In Speaker	No
Power
PoE Support	PoE+ 802.3at
Power I/O	1 x Barrel (24VDC) Input
Power Consumption	PoE: 16.2 W Power Supply: 24 VDC 13.9 W
Environmental
Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	10 to 90%
General
Mounting	1 x 1/4"-20 Female for Tripod
OS Compatibility	Windows 10 (64-Bit Only) macOS 11 *As of September, 2023: Cheque with manufacturer for the most up-to-date compatibility
Mobile App Compatible	Yes: Android & iOS Functionality: Adjust Settings, Remote Control, Setup *As of November, 2022: Cheque with manufacturer for the most up-to-date compatibility
Dimensions (W x H x D)	6.1 x 7 x 6.5" / 154 x 178 x 164 mm (Without Protrusions)
Weight	4.9 lb / 2.2 kg
