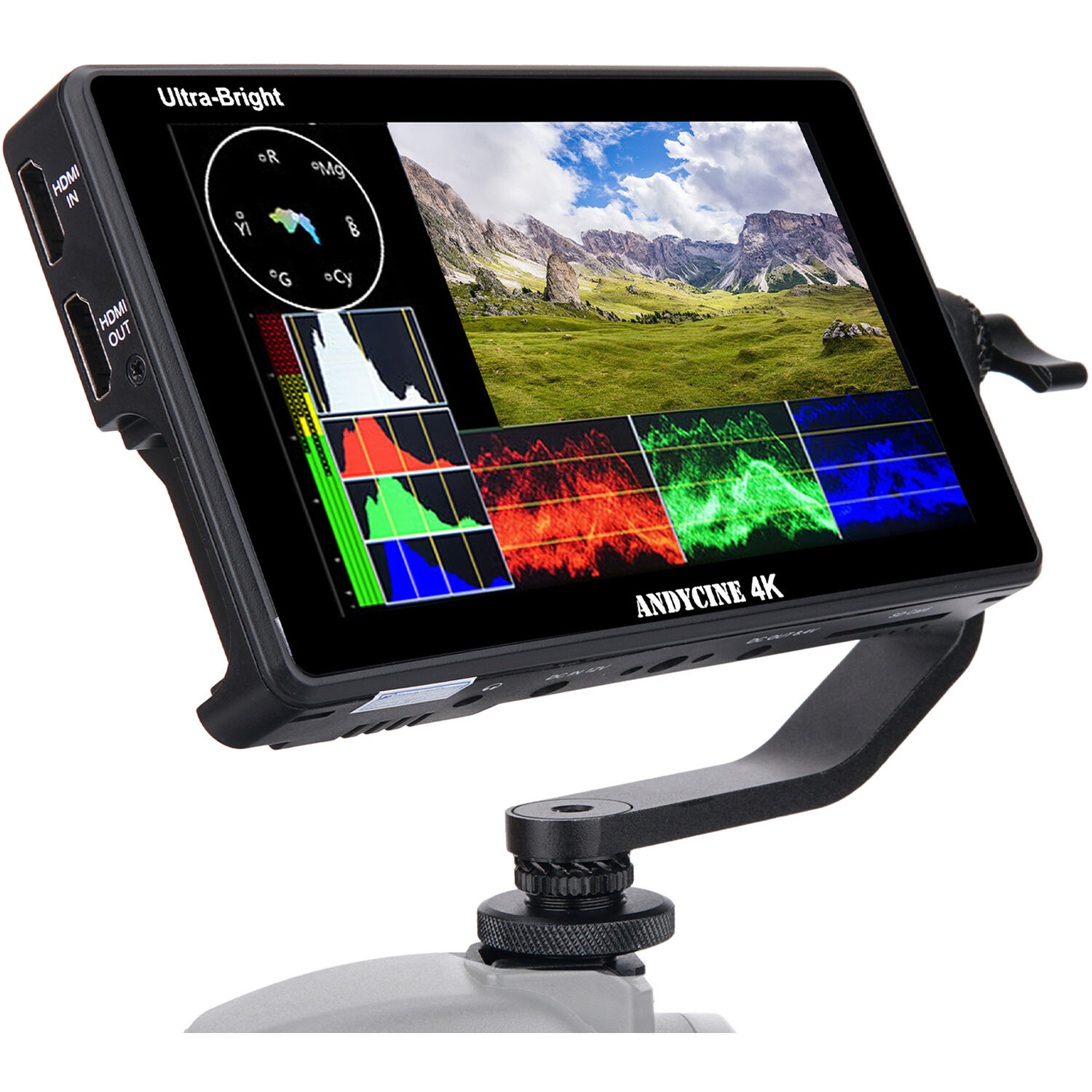

ANDYCINE C6 6" HDMI Ultrabright Touchscreen Monitor

Product #103963 | SKU C6 | Andycine
In Stock with Supplier Usually ships in 2 - 4 weeks what does this mean?
Our Price $729
In Stock with Supplier Usually ships in 2 - 4 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 4 weeks. Deliver to Auckland for $8.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 4 weeks
Click & Collect

Features

  • 6" 1920 x 1200 Touchscreen
  • Ultrabright at 2600 cd/m²
  • Supports up to DCI 4K Input via HDMI
  • HDMI Input and HDMI Loop Output
  • 3D LUT Import via SD Card
  • L-Series Battery Plate

Description

Designed for Every Situation

The ANDYCINE C6 6" HDMI Ultrabright Touchscreen Monitor equips filmmakers with the benefits of a large on-camera display without making the camera set up feel cumbersome. The front features a large high resolution, daylight viewable LCD touchscreen, there are video connections on the left side and SD card slot on the bottom, and space for a NP-F battery on the back. The outer frame features standard 1/4" mount points on the bottom and right for attaching it to camera and rig. This design detail makes the C6 easy to attach to a camera and easy to share with a team member or client on set.

4K HDMI Loop-out & Convenient Mounting - Tilt Arm

The C6 has 4K HDMI in and loop-out, and has the ability to display live picture on multiple displays at once while still maintaining the original video quality.

Support Touch Screen and Button Control Menu

You can also get a quick glance at your menu settings and features with an easy tap on the screen. It also supports physical buttons control. Tap/Rotate the wheel button for quick selection and function settings. Tap the power switch to turn off the touch function, designed to prevent misuse.

Key Features
  • 6" 1920 x 1200 Touchscreen
  • Ultrabright at 2600 cd/m²
  • Supports up to DCI 4K Input via HDMI
  • HDMI Input and HDMI Loop Output
  • 3D LUT Import via SD Card
  • L-Series Battery Plate

Specifications

Display
Panel Type IPS-Type LCD
Display Size 6.0" / 15.2 cm
Resolution 1920 x 1200
Aspect Ratio 16:9
Viewing Angle Horizontal: 160°
Vertical: 160°
Touchscreen Yes
Maximum Brightness 2600 cd/m2
Contrast Ratio 1200:1
Bit Depth / Colour Support 8-Bit (16.7 Million Colours)
Pixels Per Inch (ppi) 377 ppi
Colour Gamut 90% Rec. 709
Real-Time LUT Monitoring SDR
Image Controls Anamorphic De-Squeeze, Cheque Field, False Colour, Focus Peaking, Histogram, Image Flip, Pixel Zoom, Pixel-to-Pixel Zoom, R/G/B/Chroma Only, RGB Parade, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
Video I/O 1 x HDMI 1.4 Input
1 x HDMI 1.4 Loop Output
Embedded Audio HDMI
Audio I/O 1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker None
Power I/O 1 x Barrel (12 VDC) Input
1 x Barrel (8 VDC) Output
Wi-Fi None
Format Support
Video Format HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
576i
480p
480i
Gamma Curve Canon Log, DCI-P3, HDR-HLG, Panasonic V-Log, Rec2020, Rec709, Sony S-Log, Sony S-Log 2, Sony S-Log 3
Power
DC Input Power 7 to 24 VDC
Battery Type 1 x L-Series (Interchangeable Mount)
Power Consumption 10 W
Mounting
Mounting 2 x 1/4"-20 Female
General
Material of Construction Plastic
Dimensions 6.4 x 3.7 x 1.1" / 162 x 93.2 x 29 mm

In The Box

  • ANDYCINE C6 6" HDMI Ultrabright Touchscreen Monitor
  • Micro-HDMI Cable
  • Mini-HDMI Cable
  • Tilt Arm
  • Carry Bag

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: ANDYCINE C6 6" HDMI Ultrabright Touchscreen Monitor
  • Manufacturer: Andycine
  • Model: C6
  • SKU: C6
  • RM Product #: 103963
  • Screen Size: 6"
  • Screen Resolution: 1920 x 1080
  • Warranty: Click here for warranty terms view terms
