ANDYCINE C7S 7" 3G-SDI/HDMI Ultra-Bright Touchscreen Monitor with 3D LUTs & Waveform

Product #103851 | SKU C7S | Andycine
In Stock with Supplier Usually ships in 2 - 4 weeks what does this mean?
Our Price $919
In Stock with Supplier Usually ships in 2 - 4 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 4 weeks. Deliver to Auckland for $12 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 4 weeks
Click & Collect

Features

  • 7" 3G-SDI & HDMI 1920 x 1080 Touchscreen
  • 3D LUT Import via SD Card
  • 1200:1 Contrast, 2200 cd/m² Brightness
  • Built-In, Dual L-Series Battery Plate
  • Supports up to DCI 4K24/UHD 4K30 Video
  • 8.4 VDC Output Powers Select Cameras

Description

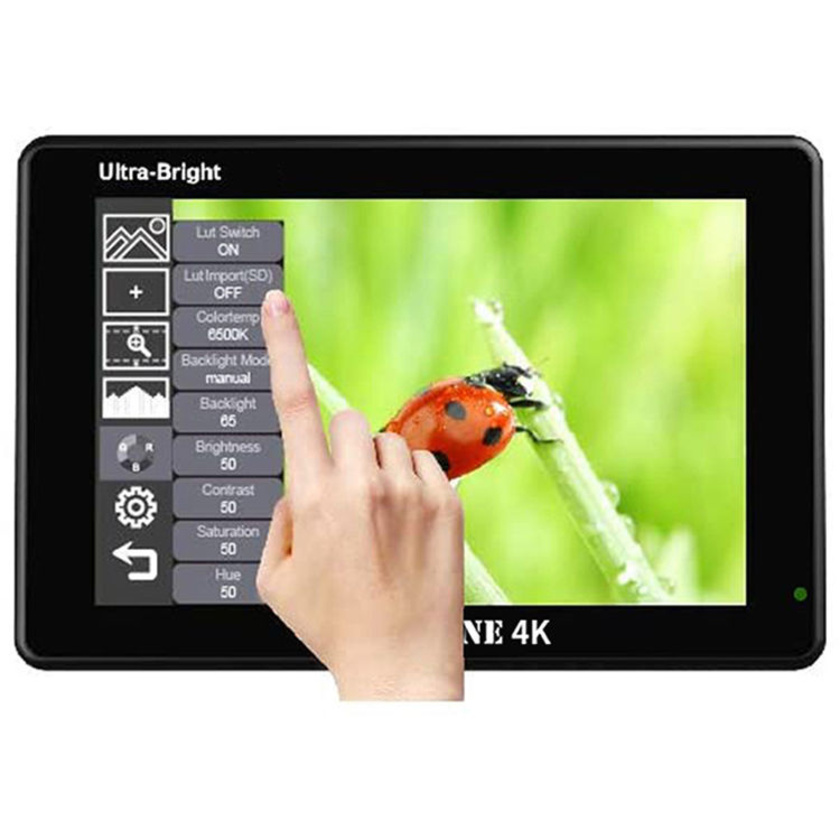

Large Monitor with Easy Touch Controls

The ANDYCINE C7S 7" 3G-SDI/HDMI Ultra-Bright Touchscreen Monitor provides incredible control. You can uses simple tap and swipe gestures for the important monitoring functions. Scopes can be enabled via the touch screen as well as focus and exposure assist. There's also an extensive range of settings all controlled from the large LCD. Plus you can load 3D LUTs!

Accurate waveform monitoring

When you need to analyse image quality more accurately than simply looking at the picture then use C7's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vector-scope, histogram and audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope

2200nit Daylight Viewable

The 7" 1920 x 1200 monitor not only has the resolution and pixel density to make every shot look amazing, the high bright 2200nit screen at almost 4 times the brightness of conventional field monitors lets you shoot outdoors without reflections washing out your image. This makes it easy to see outdoors without a hood, making it easy for outdoor shooting in bright daylight!

Light Sensor for Auto Dimming

The C7S has an ambient light sensor that detects ambient light levels and automatically adjusts the screen brightness. It ensures that the screen is readable in different environments and always protects your eye. Increasing the screen brightness compensates for bright sunlight when used outdoors, while a dimmer screen is more comfortable on the eyes when viewing in the dark.

With both 3G-SDI and 4K HDMI inputs

The C7S has 3G-SDI, 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.

Specifications

Display
Panel Type IPS-Type LCD
Display Size 7.0" / 17.8 cm
Resolution 1920 x 1080
Aspect Ratio 16:10
Viewing Angle 160° (80/80)
Touchscreen Yes
Maximum Brightness 2200 cd/m2
Contrast Ratio 1200:1
Pixels Per Inch (ppi) 323 ppi
Colour Gamut 100% Rec. 709
Real-Time LUT Monitoring SDR
Image Controls Anamorphic De-Squeeze, Blue Only, Colour Temperature Selection, False Colour, Focus Peaking, Histogram, Image Flip, Marker Colour, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra
Video I/O 1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Loop Output
1 x HDMI Input
1 x HDMI Loop Output
Embedded Audio HDMI
Audio I/O 1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker None
Power I/O 1 x Barrel (12 VDC) Input
1 x Barrel (8.4 VDC) Output
Wi-Fi None
Format Support
Video Format HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
576i
480i
480p
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
Power
DC Input Power 7 to 24 VDC
Battery Type 2 x L-Series
Power Consumption 20 W
Mounting
Mounting 3 x 1/4"-20 Female
Environmental
Operating Temperature -20 to 50°C
Storage Temperature -30 to 60°C
General
Material of Construction Plastic
Dimensions 190 x 126 x 27 mm
Weight 460 g

In The Box

  • ANDYCINE C7S 7" 3G-SDI/HDMI Ultra-Bright Touchscreen Monitor with 3D LUTs & Waveform
  • HDMI Type A to Mini-HDMI Cable
  • HDMI Type A to Micro-HDMI Cable
  • Tilt Arm
