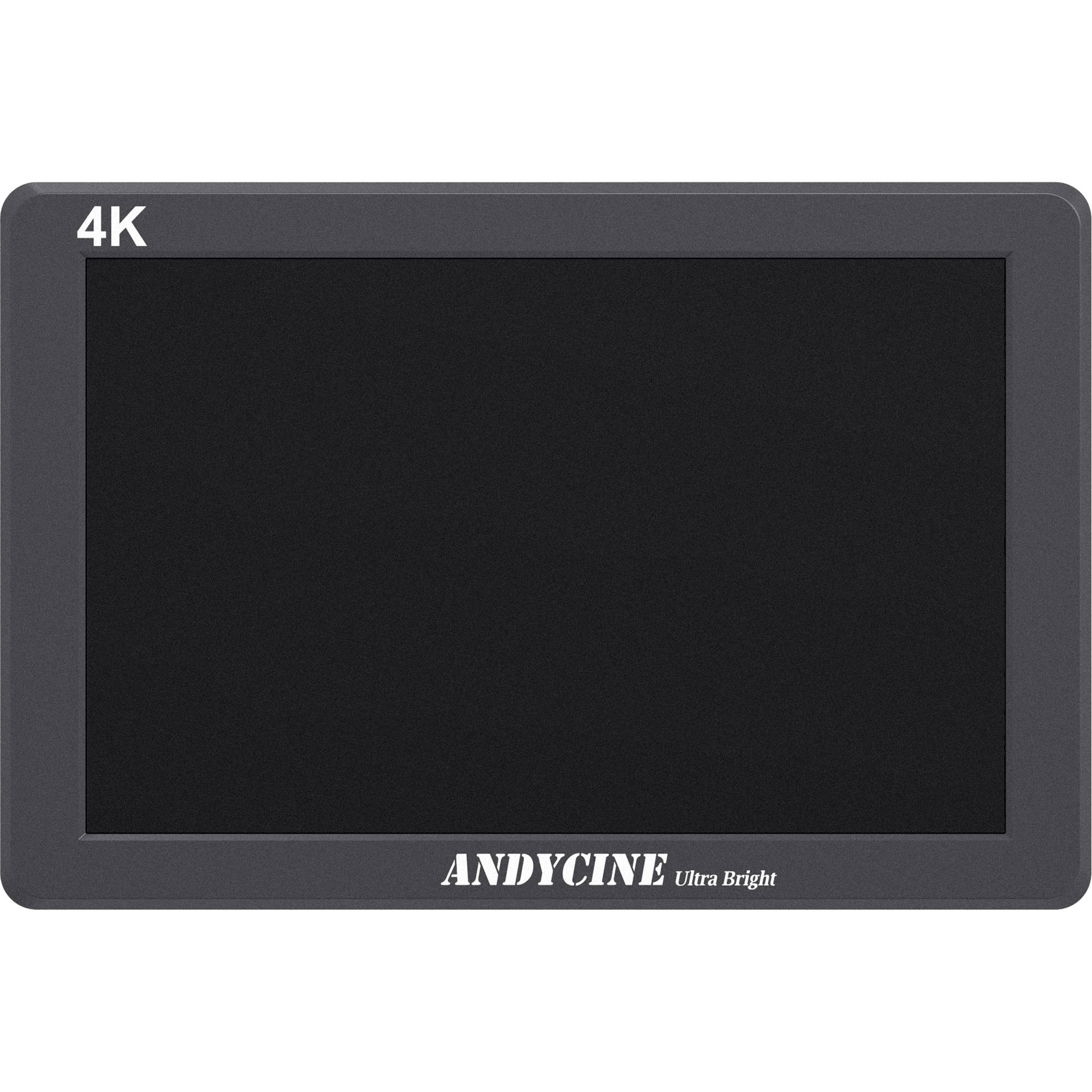

ANDYCINE X7S 7" Ultra-Bright 3G-SDI/HDMI 4K Monitor

Product #103850 | SKU X7S | Andycine
In Stock with Supplier Usually ships in 2 - 4 weeks what does this mean?
Our Price $929
In Stock with Supplier Usually ships in 2 - 4 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 4 weeks. Deliver to Auckland for $12 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 4 weeks
Click & Collect

Features

  • 7" 1920 x 1200 3G-SDI & HDMI Monitor
  • Histogram / Focus Peaking / Zebra
  • 2200 cd/m² Brightness / 1200:1 Contrast
  • Includes Removable L-Series Plate
  • 160° Viewing Angle
  • Accepts up to DCI 4K Video

Description

Are you looking for a professional field monitor that can meet the challenge of bright sunlight shooting? Then look no further than the ANDYCINE X7S 7" Ultra-Bright 3G-SDI/HDMI 4K Monitor. With super brightness, professional features and full aluminium housing, it is ready for daily rigours of field production.

3G-SDI and 4K HDMI Loop-out

X7S has 3G-SDI, 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.

Connect to Wireless Transmitter

Transmission to film crew director monitoring at the same time. Without the cable more flexible to transition between scenes effortlessly for outdoor shooting.

Accurate Colour Reproduction

Support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image is clearly presented, the color is extremely natural, to ensure accurate colour reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.

Use Rec.709 color standard

ANDYCINE uses the professional Rec.709 HD color standard, and uses the colour calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video

Specifications

Display
Panel Type IPS-Type LCD
Display Size 7.0" / 17.8 cm
Resolution 1920 x 1200
Aspect Ratio 16:10
Viewing Angle Horizontal: 160° (80/80)
Vertical: 160° (80/80)
Touchscreen No
Maximum Brightness 2200 cd/m2
Contrast Ratio 1200:1
Dot Pitch 0.07875 x 0.07875 mm
Colour Gamut 100% Rec. 709
Real-Time LUT Monitoring No
Image Controls Anamorphic De-Squeeze, Blue Only, Cheque Field, Colour Temperature Selection, False Colour, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, R/G/B/Chroma Only, Screen Markers
Video I/O 1 x HDMI Input
1 x BNC (3G-SDI) Input
1 x HDMI Output
1 x BNC (3G-SDI) Output
Embedded Audio HDMI
SDI
Audio I/O 1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker 1
Power I/O 1 x Barrel (12 VDC) Input
1 x Barrel (8 VDC) Output
Media/Memory Card Slot None
Format Support
Video Format HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
576i
480p
480i
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576i
480i
Power
DC Input Power 7 to 24 VDC
Battery Type 1 x L-Series (Interchangeable Mount)
Power Consumption 18 W
Mounting
Mounting 3 x 1/4"-20 Female
Environmental
Operating Temperature 12 to 87°F / -20 to 55°C
Storage Temperature -22 to 149°F / -30 to 65°C
General
Dimensions 180 x 120 x 22 mm
Weight 15.70 oz / 445 g
16.76 oz / 475 g, Including Battery Plate

In The Box

  • ANDYCINE X7S 7" Ultra-Bright 3G-SDI/HDMI 4K Monitor
  • HDMI to Micro-HDMI Cable
  • D-Tap to DC Power Cable
  • L-Series-Type Battery Plate
