Accsoon CineView SE Transmitter

Product #98470 | SKU WIT04-SE-TX | Accsoon
In Stock with Supplier Usually ships in 2 - 4 weeks what does this mean?
Our Price $379
In Stock with Supplier Usually ships in 2 - 4 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 4 weeks. Deliver to Auckland for $5.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 4 weeks
Click & Collect

Features

  • <50ms Latency
  • 1200ft
  • SDI IN&OUT
  • HDMI IN&OUT
  • NP-F Battery
  • Dual Band, Simultaneous Transmission

Description

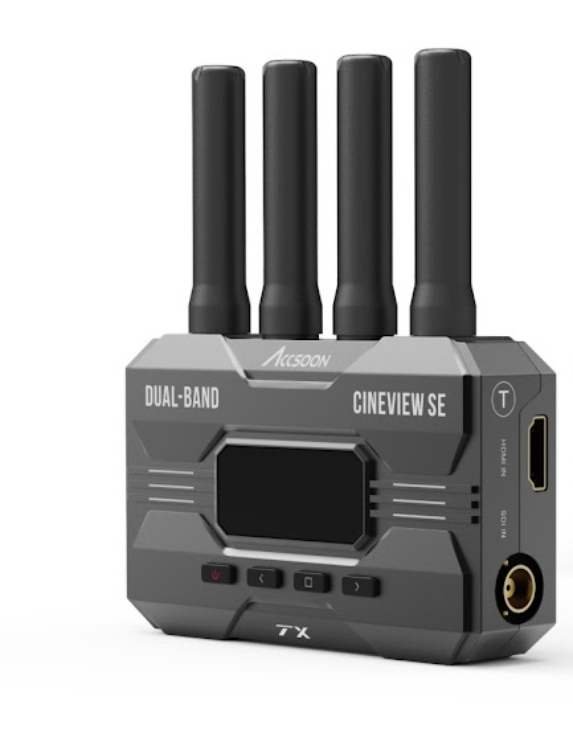

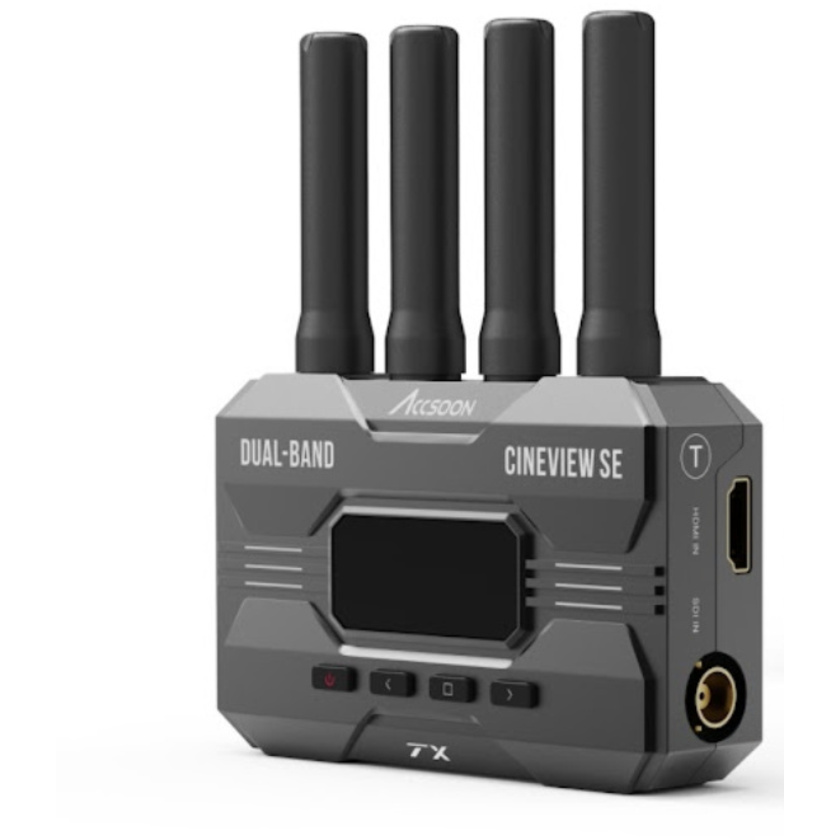

The Accsoon CineView SE Transmitter can transmit a video source via SDI & HDMI up to 1080p 60fps inputs/outputs. It transmits the signal on 2.4GHz+5GHz Dual-Band frequencies simultaneously for increased signal stability and sends video at an impressive maximum range of 1200ft line-of-sight.

Rugged design with a 1.3-inch OLED display that fits in the palm of your hand. The solid aerospace-grade aluminium construction keeps the weight of the units down to a minimum. The TX features both HDMI and SDI connections that support 1080p video inputs at up to 60fps.

Key Features:

  • Dual-band (2.4G + 5G) WiFi Simultaneous transmission, strong anti-interference
  • Transmission range up to 1200ft
  • Transmitter: SDI in + HDMI in, Receiver: SDI out + HDMI out
  • Very low latency <0.05 seconds
  • Transmit up to 4 devices (dedicated RXs and mobile devices, mix and match)
  • Professional monitoring App for iOS and Android (upgradable), support (RTMP) live-streaming direct via App
  • Low 3.5W-4.5W power consumption, no fan noise
  • 1.3 inch OLED display
  • Power by DC source and NP-F battery and USB-C
  • Automatic channel selection for optimal transmission
  • Group pairing knob

Specifications

Video Input SDI/HDMI
SDI Input Format 1080p 23.98/24/25/29.97/30/50/59.94/60fps Level A/B
HDMI Input Format 1080p 23.98/24/25/29.97/30/50/59.94/60fps
DC Port 5.5mmx2.1mm center positive
DC Voltage 7.416.8V
Audio 44.1KHz/48KHz 16bit/24bit PCM
Latency <0.05s (Camera latency not included)
OLED Display 1.3inch
Transmission Power 1720dBm
Transmission Range 1200ft (No obstacles, no interference)
Power Consumption 4.5Watt (Typical)
Operating Environment Temperature -10~40℃
Dimensions 105mmx66mmx32mm (Antennas not included)
Weight 210g (Antennas not included)

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Accsoon CineView SE Transmitter
  • Manufacturer: Accsoon
  • Model: WIT04-SE-TX
  • SKU: WIT04-SE-TX
  • RM Product #: 98470
  • Configuration: Transmitter Only
