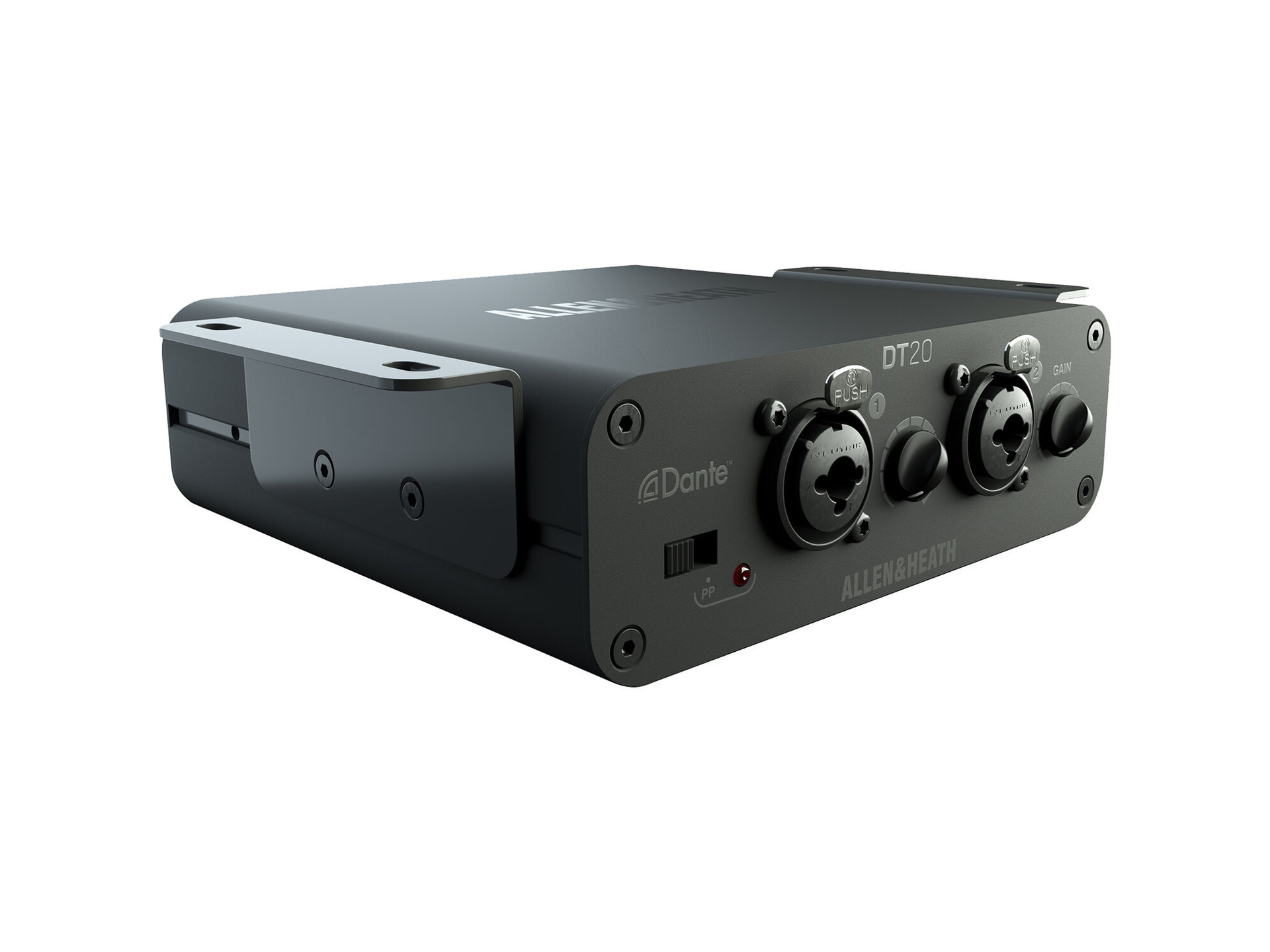

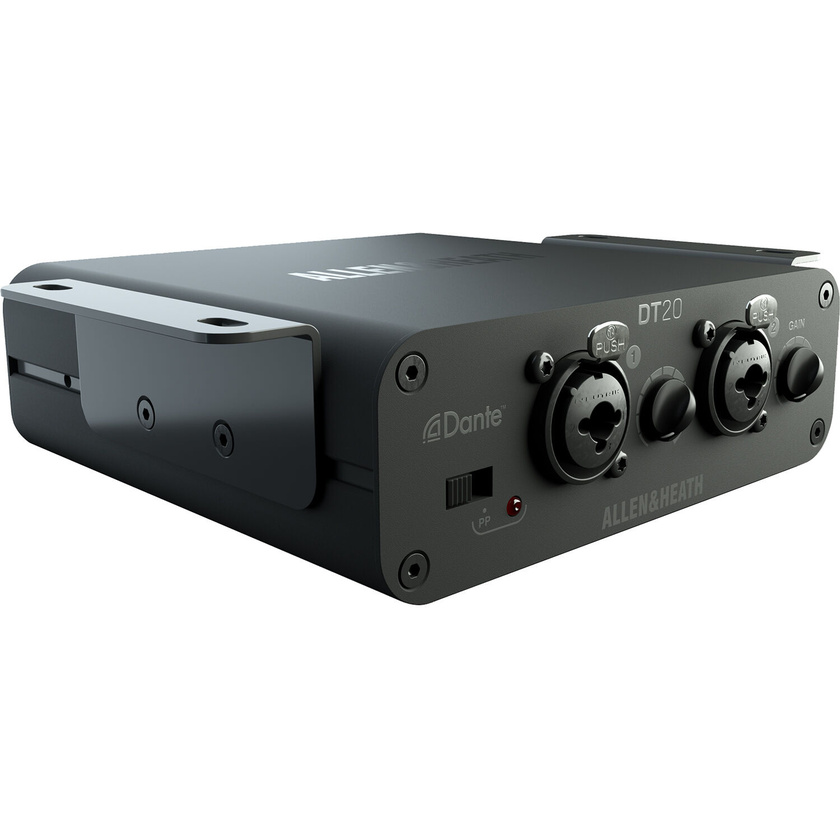

Allen & Heath DT20-M Dante Input Interface

Product #117601 | SKU DT20M | Allen & Heath
In stock Ships Monday
Our Price $519
In stock Ships Monday
- +

this item may be nonreturnable
Shipping & Availability
Ships Monday. Deliver to Auckland for $12 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 4 - 5 working days
Click & Collect

Features

  • 48 kHz / 96 kHz
  • Two Combo XLR-1/4" Mic/Line Inputs
  • PoE Powered or 12 VDC
  • Power Supply Not Included
  • Local Gain Control
  • 48V Phantom Power with LED Indicator

Description

Audio professionals looking for a sturdy and portable Dante input interface will find great value in the Allen & Heath DT20-M Dante Input Interface. This compact interface operates at a high sampling rate of 48/96 kHz and offers two combo XLR-1/4" mic/line inputs with 48V phantom power. It is suitable for various applications, including fixed installations, AV setups, hire services, and portable setups. To ensure versatility, the DT20-M is compatible with any Dante-equipped Allen & Heath mixer or AHM system, as well as third-party Dante systems. It can be powered either through a 12 VDC power supply (not included) or PoE. In terms of design and durability, the DT20-M is housed in a robust aluminium enclosure. It is conveniently sized and can be easily mounted under a table or podium for local microphone connections. Alternatively, if you prefer to rackmount the interface, separate rack ears and a rackmount kit are available for purchase.

Specifications

Mic/Line Inputs Mic Inputs: Balanced XLR, +48 V Phantom
Analogue Gain: 0 to +55 dB
Line Inputs: Balanced TRS, -20 dB Pad
Maximum Input Level: +30 dBu (TRS In)
Input Impedance: >4 Kilohms (XLR), >10 Kilohms (TRS)
Dante 48/96 kHz
Operating Temperature 32 to 104°F / 0 to 40°C
Power PoE: Power over Ethernet
PoE Requirements: 802.3af 15 W
DC Input: +12 VDC, 1.25 A
Power Consumption: 10 W Maximum
Note: Power Supply Not Included
Dimensions (W x D x H) 5.1 x 5.4 x 1.7" / 13 x 13.7 x 4.3 cm
Weight 1 lb / 0.5 kg

In The Box

  • Allen & Heath DT20-M Dante Input Interface with No Power Supply
  • Set of Rubber Feet

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Allen & Heath DT20-M Dante Input Interface
  • Manufacturer: Allen & Heath
  • Model: DT20M
  • SKU: DT20M
  • RM Product #: 117601
  • Warranty: 1 year manufacturer warranty on all Allen & Heath products apart from dLive models which have a 3 year manufacturer warranty
