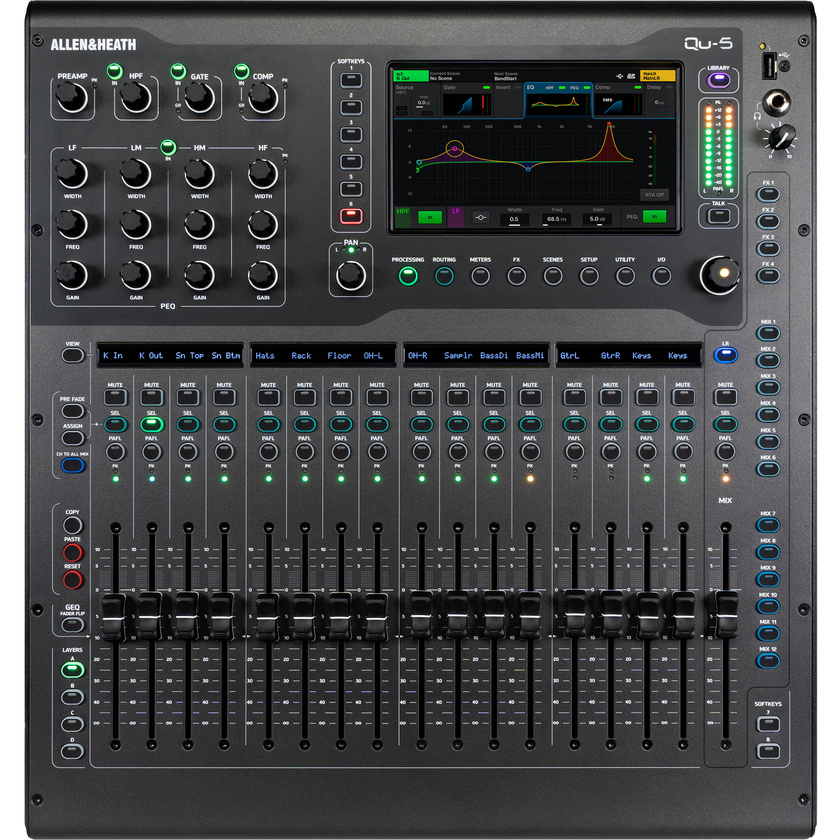

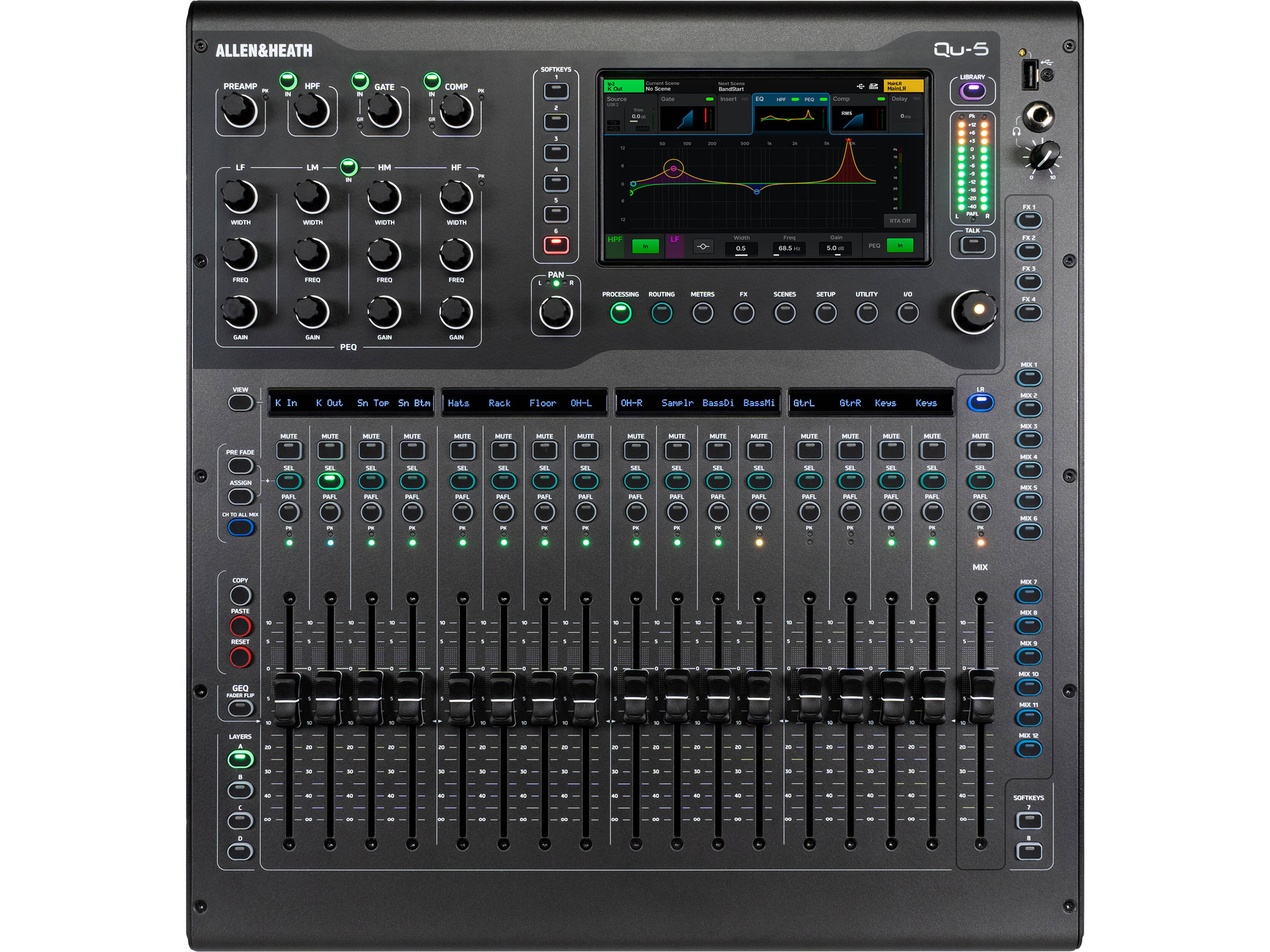

Allen & Heath Qu-5 36-Channel / 12-Bus Digital Mixer with 16+1 Motorized Faders

Name: Allen & Heath Qu-5 36-Channel / 12-Bus Digital Mixer with 16+1 Motorized Faders
Brand: Allen & Heath
SKU: 121891
Price: 3959.01 NZD
Availability: InStock

Product #121891 | SKU AH-QU-5 | Allen & Heath

| Write a review

In stock Ships Monday

Allen & Heath Qu-5 36-Channel / 12-Bus Digital Mixer with 16+1 Motorized Faders

Our Price $3,959^.01

In stock Ships Monday

this item may be nonreturnable

Request price match

Talk to our experts

Shipping & Availability

Ships Monday. Deliver to Auckland for $28 Change location

Click & Collect

Check availability

Features

16 Microphone Preamps
7" Capacitive Touchscreen
96 kHz FPGA Processing
Six Stereo FX Engines with Returns
32x32 USB Audio Interface
AES Output

Description Specifications In The Box

Description

The Allen & Heath Qu-5 36-Channel / 12-Bus Digital Mixer with 16+1 Motorized Faders is supercharged with a 96kHz XCVI core for DEEP Processing capabilities, increased channel count with fully flexible patching across 4 customisable layers, a completely redesigned user interface, significant hardware upgrades, plus extended connectivity and optional Dante. The new Qu retains the much-loved appearance and form factor of the original Qu series, but with multiple hardware improvements to elevate the sonic performance and mixing experience.

Audio

Updated microphone preamps and high-performance 96kHz AD/DA converters combine to deliver pristine audio to and from the XCVI core, preserving every detail of the source.

Control

Every channel now features a channel display – showing channel name, channel type, or socket number – and a chromatic channel meter for at-a-glance level information, and the new touchscreen accommodates a completely redesigned user interface.

Specifications


Mixer
Max I/O Capacity	36x Input / 12x Output
Number of Analogue Input Channels	18 (16 Mono / 2 Stereo)
Number of Mic Preamps	16
Number of Analogue Output Channels	12
Mix Routing	6x Mono Aux Send 6x Stereo Aux Send
Groups	6x Subgroup
Presets	No
Display	7" Touchscreen
Faders & Level Adjustment	17x 3.9" / 100 mm Fader
Metres	Main Metre: 2x 12-Segment LED Channel Metre: Single LED
Signal Processing
Dynamic Processing	Input Channels: Compressor, Gate Master: Compressor, Limiter
AEQ	Input Channels: 4-Band Parametric
Filters	High-Pass
Solo/Mute	Solo-in-Place/AFL, Mute, PFL per Input Channel, Bus, Master
Audio Delay	Adjustable Up to 682 ms
Automatic Mic Mixing	Yes
Digital Audio
Sample Rates	96 kHz AES3 Output: 44.1 / 48 / 88.2 / 96 kHz Stereo Record: 96 kHz Stereo Playback: 44.1 / 48 / 96 kHz Multitrack Playback/Multitrack Record: 96 kHz
Bit Depth	Up to 96-Bit Stereo Record: 24-Bit Stereo Playback: 16 / 24-Bit Multitrack Playback, Multitrack Record: 24-Bit
Connectivity
Analogue Inputs	1x XLR Talkback Input 16x XLR Balanced Mic/Line Input 4x 1/4" TRS Balanced Channel Input (2 Stereo Pairs, Half-Normalled)
Analogue Outputs	12x XLR Balanced Output 2x 1/4" TRS Balanced Output
Phantom Power	+48 V
Digital I/O	1x etherCON Input/Output (I/O) 1x XLR AES3 Output
MIDI I/O	No
USB I/O	1x USB-A 2.0 (External Memory) 1x USB-C 2.0 (Audio Streaming)
USB I/O Capacity	32x Input / 32x Output
Other I/O	1x RJ45 Control In/Out (Bi-Directional)
Wireless	No
External Display I/O	No
Recording
Max Multitrack Recording	32 Tracks
Media Support	SD, USB Drive
File Format Support	WAV
Compatibility
OS Compatibility	Computer: Windows 10 or Later / macOS 10.14 to 11 Mobile: Android/iOS
Mobile Device Compatibility	Android Smartphone Android Tablet iPad iPhone
Power
Input Power	100 to 240 VAC, 50 / 60 Hz
Physical
Rack Mountable	Yes
Operating Conditions	32 to 104°F / 0 to 40°C
Dimensions	17.7 x 8.3 x 18.7" / 45 x 21.1 x 47.5 cm

In The Box

Allen & Heath Qu-5 36-Channel / 12-Bus Digital Mixer with 16+1 Motorised Faders
Power Cord

Reviews

(no ratings yet)

Own or use this product?
Give it a quick rating:

Share your thoughts with other customers:
Write a review

Details

Product: Allen & Heath Qu-5 36-Channel / 12-Bus Digital Mixer with 16+1 Motorized Faders
Manufacturer: Allen & Heath
Model: AH-QU-5
SKU: AH-QU-5
RM Product #: 121891
Warranty: 1 year manufacturer warranty on all Allen & Heath products apart from dLive models which have a 3 year manufacturer warranty
