Allen & Heath Qu-6D 36-Channel / 12-Bus Digital Mixer with 24+1 Motorized Faders

Product #121947 | SKU AH-QU-6D | Allen & Heath
| Write a review
In stock Ships Monday

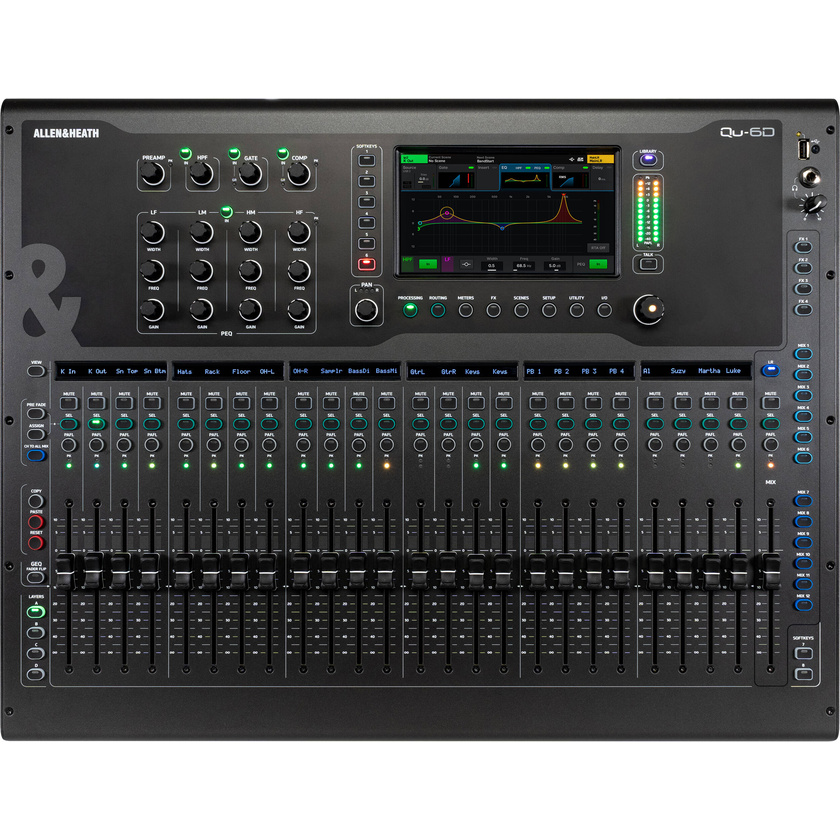

Allen & Heath Qu-6D 36-Channel / 12-Bus Digital Mixer with 24+1 Motorized Faders
Our Price $5,543.01
In stock Ships Monday
- +
Gem QCard
this item may be nonreturnable
Request price match
Talk to our experts
Shipping & Availability
Ships Monday. Deliver to Auckland for $39 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 working days
Click & Collect

Features

  • 16x16 48/96 kHz Dante Interface
  • 24 Microphone Preamps
  • 7" Capacitive Touchscreen
  • 96 kHz FPGA Processing
  • Six Stereo FX Engines with Returns
  • 32x32 USB Audio Interface

Description

Building on the success of the renowned Qu series, the Allen & Heath Qu-6D 36-Channel / 12-Bus Digital Mixer with 24+1 Motorized Faders is a professional-grade digital mixer powered by cutting-edge XCVI processing. It features updated FX, comprehensive Everything I/O connectivity, and a user-friendly interface that includes a 7" capacitive touchscreen, channel strip displays, customizable layers, additional SoftKeys, and SD card recording.

The Qu-6D delivers 36 input channels—32 mono and 2 stereo—alongside 6 mono (linkable) and 6 stereo aux/group mixes, offering flexible routing and mix options for live sound and studio applications. Combining high-performance audio processing with intuitive hands-on control, the Qu-6D strikes a perfect balance between power and usability.

Additionally, the Qu-6D includes a built-in 16x16 48/96 kHz Dante interface, enabling seamless integration with Dante-enabled devices for robust audio networking and interoperability.

Specifications
Mixer
Max I/O Capacity 36x Input / 12x Output
Number of Analogue Input Channels 28 (24 Mono / 2 Stereo)
Number of Mic Preamps 24
Number of Analogue Output Channels 16
Mix Routing 6x Mono Aux Send
6x Stereo Aux Send
Groups 6x Subgroup
Presets No
Display 7" Touchscreen
Faders & Level Adjustment 25x 3.9" / 100 mm Fader
Metres Main Metre:
2x 12-Segment LED
Channel Metre:
Single LED
Signal Processing
Dynamic Processing Input Channels:
Compressor, Gate
Master:
Compressor, Limiter
AEQ Input Channels:
4-Band Parametric
Filters High-Pass
Solo/Mute Solo-in-Place/AFL, Mute, PFL per Input Channel, Bus, Master
Audio Delay No
Automatic Mic Mixing Yes
Digital Audio
Sample Rates 96 kHz
AES3 Output:
44.1 / 48 / 88.2 / 96 kHz
Stereo Record:
96 kHz
Stereo Playback:
44.1 / 48 / 96 kHz
Multitrack Playback/Multitrack Record:
96 kHz
Bit Depth Up to 96-Bit
Stereo Record:
24-Bit
Stereo Playback:
16 / 24-Bit
Multitrack Playback, Multitrack Record:
24-Bit
Connectivity
Analogue Inputs 1x XLR Talkback Input
24x XLR Balanced Mic/Line Input
4x 1/4" TRS Balanced Channel Input (2 Stereo Pairs, Half-Normalled)
Analogue Outputs 16x XLR Balanced Output
2x 1/4" TRS Balanced Output
Phantom Power +48 V
Digital I/O 1x etherCON Input/Output (I/O)
1x XLR AES3 Output
MIDI I/O No
USB I/O 1x USB-A 2.0 (External Memory)
1x USB-C 2.0 (Audio Streaming)
USB I/O Capacity 32x Input / 32x Output
Other I/O 1x RJ45 Control In/Out (Bi-Directional)
1x 1/4" Footswitch
Wireless No
External Display I/O No
Recording
Max Multitrack Recording 32 Tracks
Media Support SD, USB Drive
File Format Support WA
Compatibility
OS Compatibility Computer: Windows 10 or Later / macOS 10.14 to 11
Mobile: Android/iOS
Mobile Device Compatibility Android Smartphone
Android Tablet
iPad
iPhone
Power
Input Power 100 to 240 VAC, 50 / 60 Hz
Physical
Rack Mountable Yes
Operating Conditions 32 to 104°F / 0 to 40°C
Dimensions 31.5 x 8.3 x 18.7" / 80 x 21.1 x 47.5 cm

In The Box

  • Allen & Heath Qu-6D 36-Channel / 12-Bus Digital Mixer with 24+1 Motorised Faders
  • Power Cord

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Allen & Heath Qu-6D 36-Channel / 12-Bus Digital Mixer with 24+1 Motorized Faders
  • Manufacturer: Allen & Heath
  • Model: AH-QU-6D
  • SKU: AH-QU-6D
  • RM Product #: 121947
  • Warranty: 1 year manufacturer warranty on all Allen & Heath products apart from dLive models which have a 3 year manufacturer warranty
