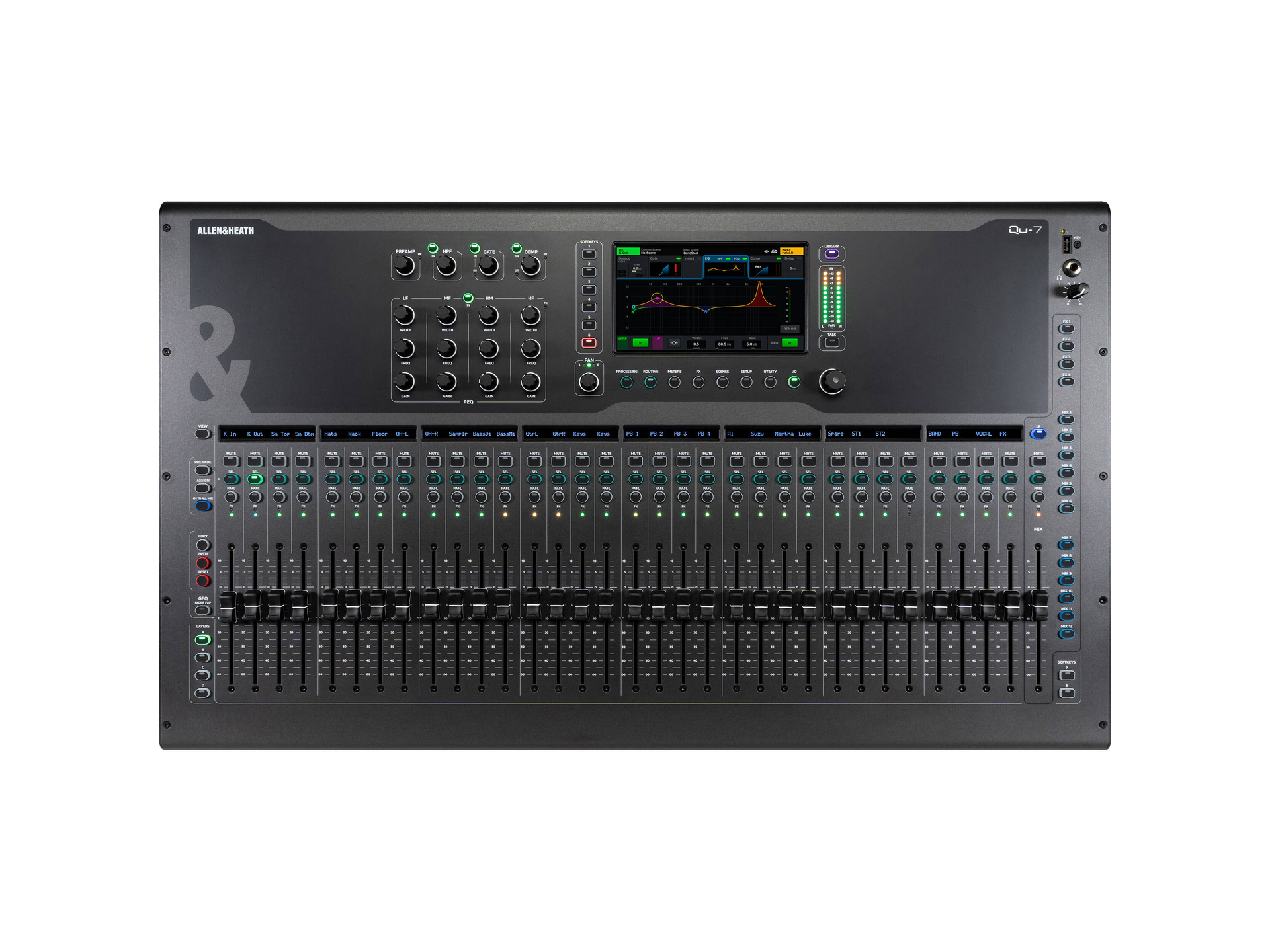

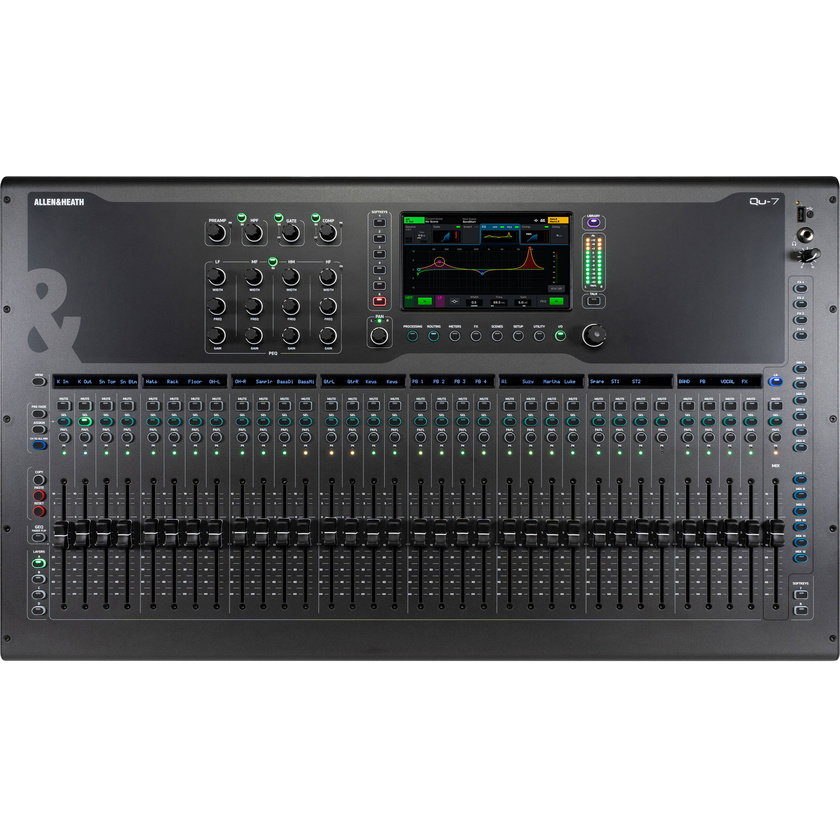

Allen & Heath Qu-7 36-Channel / 12-Bus Digital Mixer with 33 Motorized Faders

Name: Allen & Heath Qu-7 36-Channel / 12-Bus Digital Mixer with 33 Motorized Faders
Brand: Allen & Heath
SKU: 121949
Price: 6349.00 NZD
Availability: InStock

Product #121949 | SKU AH-QU-7 | Allen & Heath

| Write a review

In stock Ships Monday

Allen & Heath Qu-7 36-Channel / 12-Bus Digital Mixer with 33 Motorized Faders

Our Price $6,349

In stock Ships Monday

this item may be nonreturnable

Request price match

Talk to our experts

Shipping & Availability

Ships Monday. Deliver to Auckland for $34 Change location

Click & Collect

Check availability

Features

32 Microphone Preamps
7" Capacitive Touchscreen
96 kHz FPGA Processing
Six Stereo FX Engines with Returns
32x32 USB Audio Interface
AES Output

Description Specifications In The Box

Description

Building on the legacy of the acclaimed QU series, the Allen & Heath Qu-7 36-Channel / 12-Bus Digital Mixer with 33 Motorized Faders is a professional-grade digital mixer engineered for performance and versatility. Powered by advanced XCVI processing, it features enhanced FX, flexible Everything I/O connectivity, and a streamlined user interface.

The QU-7 is equipped with a 7" capacitive touchscreen, channel strip displays, customizable layers, expanded SoftKeys, and onboard SD card recording—offering intuitive, hands-on control for any environment.

With 32 mono and 2 stereo input channels (36 total), plus 6 mono (linkable) and 6 stereo aux/group mixes, the QU-7 delivers high-performance audio processing and powerful routing options, all in a user-friendly, professional package.

Specifications


Mixer
Max I/O Capacity	36x Input / 12x Output
Number of Analogue Input Channels	36 (32 Mono / 2 Stereo)
Number of Mic Preamps	32
Number of Analogue Output Channels	22
Mix Routing	6x Mono Aux Send 6x Stereo Aux Send
Groups	6x Subgroup
Presets	No
Display	7" Touchscreen
Faders & Level Adjustment	33x 3.9" / 100 mm Fader
Metres	Main Metre: 2x 12-Segment LED Channel Metre: Single LED
Signal Processing
Dynamic Processing	Input Channels: Compressor, Gate Master: Compressor, Limiter
AEQ	Input Channels: 4-Band Parametric
Filters	High-Pass
Solo/Mute	Solo-in-Place/AFL, Mute, PFL per Input Channel, Bus, Master
Audio Delay	Adjustable Up to 682 ms
Automatic Mic Mixing	Yes
Digital Audio
Sample Rates	96 kHz AES3 Output: 44.1 / 48 / 88.2 / 96 kHz Stereo Record: 96 kHz Stereo Playback: 44.1 / 48 / 96 kHz Multitrack Playback/Multitrack Record: 96 kHz
Bit Depth	Up to 96-Bit Stereo Record: 24-Bit Stereo Playback: 16 / 24-Bit Multitrack Playback, Multitrack Record: 24-Bit
Connectivity
Analogue Inputs	1x XLR Talkback Input 16x XLR Balanced Mic/Line Input 4x 1/4" TRS Balanced Channel Input (2 Stereo Pairs, Half-Normalled)
Analogue Outputs	12x XLR Balanced Output 2x 1/4" TRS Balanced Output
Phantom Power	+48 V
Digital I/O	1x etherCON Input/Output (I/O) 1x XLR AES3 Output
MIDI I/O	No
USB I/O	1x USB-A 2.0 (External Memory) 1x USB-C 2.0 (Audio Streaming)
USB I/O Capacity	32x Input / 32x Output
Other I/O	1x RJ45 Control In/Out (Bi-Directional) 1x 1/4" Footswitch Input
Wireless	No
External Display I/O	No
Recording
Max Multitrack Recording	32 Tracks
Media Support	SD, USB Drive
File Format Support	WAV
Compatibility
OS Compatibility	Computer: Windows 10 or Later / macOS 10.14 to 11 Mobile: Android/iOS
Mobile Device Compatibility	Android Smartphone Android Tablet iPad iPhone
Power
Input Power	100 to 240 VAC, 50 / 60 Hz
Physical
Rack Mountable	Yes
Operating Conditions	32 to 104°F / 0 to 40°C
Dimensions	24 x 8.4 x 18.7" / 61 x 21.3 x 47.5 cm

In The Box

Allen & Heath Qu-7 36-Channel / 12-Bus Digital Mixer with 33 Motorised Faders
Power Cord

Reviews

(no ratings yet)

Own or use this product?
Give it a quick rating:

Share your thoughts with other customers:
Write a review

Details

Product: Allen & Heath Qu-7 36-Channel / 12-Bus Digital Mixer with 33 Motorized Faders
Manufacturer: Allen & Heath
Model: AH-QU-7
SKU: AH-QU-7
RM Product #: 121949
Warranty: 1 year manufacturer warranty on all Allen & Heath products apart from dLive models which have a 3 year manufacturer warranty
