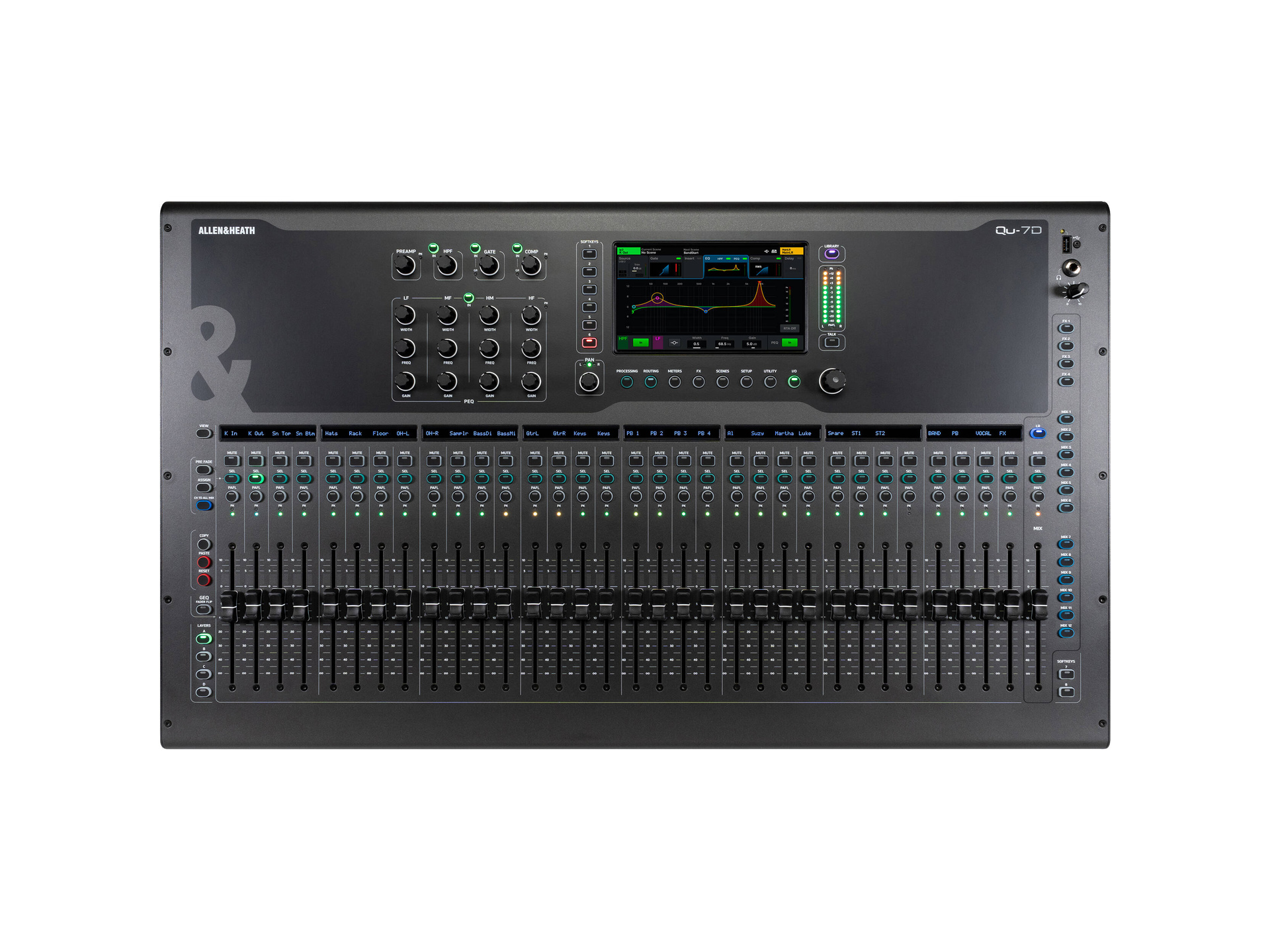

Allen & Heath Qu-7D 36-Channel / 12-Bus Digital Mixer with 33 Motorized Faders

Product #121950 | SKU AH-QU-7D | Allen & Heath
| Write a review
In stock Ships Monday
Allen & Heath Qu-7D 36-Channel / 12-Bus Digital Mixer with 33 Motorized Faders
Our Price $7,199
In stock Ships Monday
- +
Gem QCard
this item may be nonreturnable
Request price match
Talk to our experts
Shipping & Availability
Ships Monday. Deliver to Auckland for $34 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 working days
Click & Collect

Features

  • 16x16 48/96 kHz Dante Interface
  • 32 Microphone Preamps
  • 7" Capacitive Touchscreen
  • 96 kHz FPGA Processing
  • Six Stereo FX Engines with Returns
  • 32x32 USB Audio Interface

Description

Drawing from the proven design of the popular QU series, the Allen & Heath Qu-7D 36-Channel / 12-Bus Digital Mixer with 33 Motorized Faders is a professional-grade digital mixer that delivers powerful XCVI processing, updated FX, and flexible Everything I/O connectivity. Its intuitive control surface includes a 7" capacitive touchscreen, channel strip displays, customizable layers, additional SoftKeys, and built-in SD card recording.

The QU-7D provides 36 input channels—32 mono and 2 stereo—along with 6 mono (linkable) and 6 stereo aux/group mixes, offering advanced routing capabilities for both live and studio environments.

Designed for seamless integration into modern audio networks, the QU-7D also includes a built-in 16x16 Dante interface (48/96 kHz), allowing effortless interoperability with Dante-enabled systems.

Specifications
Mixer
Max I/O Capacity 36x Input / 12x Output
Number of Analogue Input Channels 36 (32 Mono / 2 Stereo)
Number of Mic Preamps 32
Number of Analogue Output Channels 22
Mix Routing 6x Mono Aux Send
6x Stereo Aux Send
Groups 6x Subgroup
Presets No
Display 7" Touchscreen
Faders & Level Adjustment 33x 3.9" / 100 mm Fader
Metres Main Metre:
2x 12-Segment LED
Channel Metre:
Single LED
Signal Processing
Dynamic Processing Input Channels:
Compressor, Gate
Master:
Compressor, Limiter
AEQ Input Channels:
4-Band Parametric
Filters High-Pass
Solo/Mute Solo-in-Place/AFL, Mute, PFL per Input Channel, Bus, Master
Audio Delay Adjustable Up to 682 ms
Automatic Mic Mixing Yes
Digital Audio
Sample Rates 96 kHz
AES3 Output:
44.1 / 48 / 88.2 / 96 kHz
Stereo Record:
96 kHz
Stereo Playback:
44.1 / 48 / 96 kHz
Multitrack Playback/Multitrack Record:
96 kHz
Bit Depth Up to 96-Bit
Stereo Record:
24-Bit
Stereo Playback:
16 / 24-Bit
Multitrack Playback, Multitrack Record:
24-Bit
Connectivity
Analogue Inputs 1x XLR Talkback Input
16x XLR Balanced Mic/Line Input
4x 1/4" TRS Balanced Channel Input (2 Stereo Pairs, Half-Normalled)
Analogue Outputs 12x XLR Balanced Output
2x 1/4" TRS Balanced Output
Phantom Power +48 V
Digital I/O 1x etherCON Input/Output (I/O)
1x XLR AES3 Output
1x etherCON Dante Input/Output
MIDI I/O No
USB I/O 1x USB-A 2.0 (External Memory)
1x USB-C 2.0 (Audio Streaming)
USB I/O Capacity 32x Input / 32x Output
Other I/O 1x RJ45 Control In/Out (Bi-Directional)
1x 1/4" Footswitch Input
Wireless No
External Display I/O No
Recording
Max Multitrack Recording 32 Tracks
Media Support SD, USB Drive
File Format Support WAV
Compatibility
OS Compatibility Computer: Windows 10 or Later / macOS 10.14 to 11
Mobile: Android/iOS
Mobile Device Compatibility Android Smartphone
Android Tablet
iPad
iPhone
Power
Input Power 100 to 240 VAC, 50 / 60 Hz
Physical
Rack Mountable Yes
Operating Conditions 32 to 104°F / 0 to 40°C
Dimensions 24 x 8.4 x 18.7" / 61 x 21.3 x 47.5 cm

In The Box

  • Allen & Heath Qu-7D 36-Channel / 12-Bus Digital Mixer with 33 Motorised Faders
  • Power Cord
