The Amphenol AC Z Series XLR Chassis Connectors are designed for the audio user where durability, reliability and strength across a wide range of applications are important. All AC Z products are manufactured to the highest quality standards and will withstand the harshest environments. This range complies with IEC268-12 and AES 14-1992 standards. CSA File Number 68598.

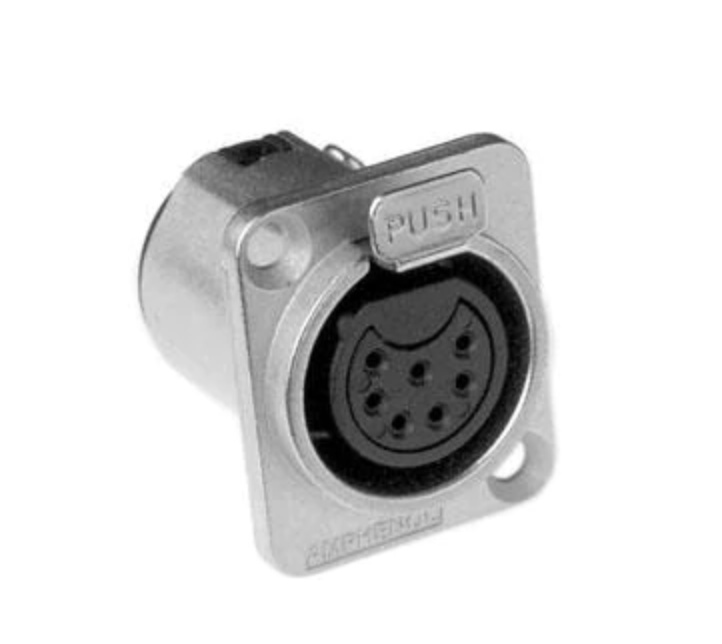

Amphenol AC Z Series 7 Pin XLR Chassis Connector (Tin Plating, Black, Female)
In Stock with Supplier Usually ships in 2 - 3 working days
Our Price
$53.95
In Stock with Supplier Usually ships in 2 - 3 working days
Email me when stock arrives
Shipping & Availability
Usually ships in 2 - 3 working days.
Deliver to
Auckland
for $5.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
2 - 3 working days
Click & Collect
Features
- The D size housing can be either front or rear mounted using the same panel cutout
- A leading first mate last break socket contact is standard on all female connectors
- Solder cup or Vertical PCB versions
- Connectors are fitted with a grounding system for RFI shielding applications
- Available in 3, 4, 5, 6A and 7 contact arrangements.
- Compatible with all other XLR brands
Description
Specifications
Standard | Standard XLR Number of Positions | 7 Position Gender | Female Termination Style | Solder Mounting Style | Chassis (Panel) Contact Plating | Tin Orientation | Straight Series | AC Series Color | Black Contact Material | Phosphor Bronze Current Rating | 7.5 A Mating Cycles | 1000 Cycle Voltage Rating | 133 V
In The Box
- Amphenol AC Z Series XLR Chassis Connector (7 Pin, Female)
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Amphenol AC Z Series 7 Pin XLR Chassis Connector (Tin Plating, Black, Female)
- Manufacturer: Amphenol
- Model: AC7FDZ
- SKU: AC7FDZ
- RM Product #: 94328
