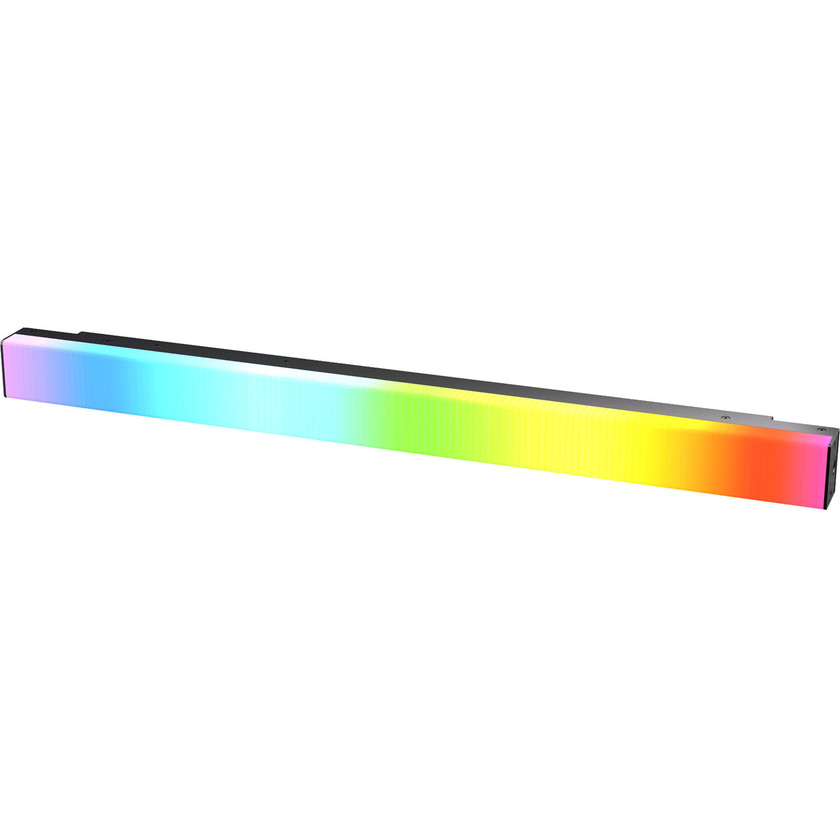

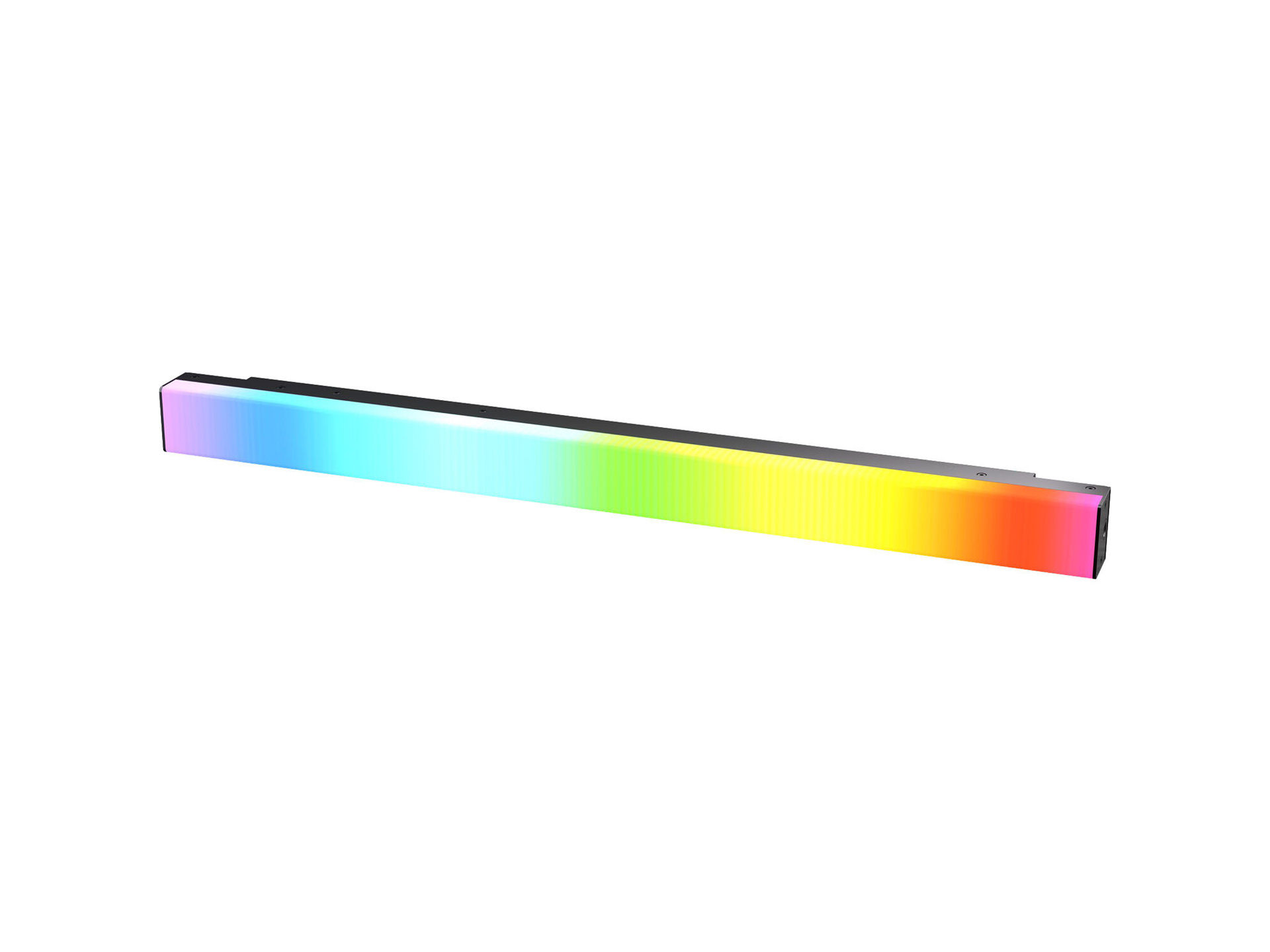

Aputure INFINIBAR PB6 RGB LED Light Panel 8-Light Kit (0.6m)
Features
- For Studio and Film/TV Production
- Output: 328 Lux at 3.3' (120º, 6500K)
- 2000 to 10,000K; RGB Colour Control
- 47.4 x 1.8" Panel; AC/DC Operation
- CRI 96 | TLCI 98 | SSI 74 | TM-30 94
- DMX, CRMX, and Sidus Link App Control
Description
The Aputure INFINIBAR PB6 RGB LED Light Panel 8-Light Kit includes eight of Aputure’s first 2-foot (60cm) full-color LED pixel bars. Featuring 48 pixels, intuitive mounting and connecting options with an infinite blending design, an integrated battery, and advanced connectivity methods, the INFINIBAR PB6 excels in constructing unique, colorful designs that bring scenes to life in new and exciting ways.
The 8-Light Kit expands this mid-sized multitool’s capabilities, with not only eight times the available light, but also additional power cables, adapters, and light control grids in a sturdy flight case to extend your creative possibilities. And in addition to charging each light individually, the 8-Light Kit is equipped with a 330W Power Adapter with 8-Way Splitters that can simultaneously charge all fixtures.
The INFINIBAR’s most unique feature is the ability to link multiple 1ft, 2ft, or 4ft INFINIBARs together using 10 differently-shaped connectors1 to design creative shapes and effects. Users can operate multiple INFINIBARs using one power supply when linked by the power-sharing connectors or use their internal batteries for greater versatility. The pixel bar’s infinite blending design also eliminates visible gaps between fixtures to create seamless pixelated effects using the PB6’s 48 RGB pixels.
Featuring advanced wireless connectivity, the INFINIBAR PB6’s 48 pixels can be grouped and controlled via Sidus Link, LumenRadio CRMX, or through wired DMX using Aputure’s USB-C to DMX Adapter.2 It also incorporates critical color controls (including advanced HSI with white- point adjustability, RGB, and xy) for full creative freedom. Toggle between 9 built-in System FX and 7 built-in Pixel FX, or save up to 20 Custom FX in the Sidus Link app for easy access to different light modes.
The INFINIBAR PB6’s proprietary RGBWW chipset produces stunning color quality throughout its wide CCT range of 2,000K to 10,000K with full green-magenta adjustment, and can reproduce >90% of colors within the Rec.2020 Color Space. Matching Aputure’s high standards for color, the INFINIBAR PB6 also produces accurate skin tones, measuring scores of CRI: 96+, TLCI: 98+, SSI (D56): 74, and SSI (Tungsten): 85.
With its lightweight yet durable aluminum housing, the INFINIBAR PB6 provides ultimate flexibility across all shooting environments. Whether linked together or used independently, the INFINIBAR’s built-in magnets, INFINIBAR Rail and Baby Pin Clamp system, and two 1⁄4-20in threads allow the PB6 to be mounted with ease. And with its built-in 29.6Wh Lithium battery, the INFINIBAR PB6 can operate at its 14W max output for 100 minutes, making it a versatile and compact fixture for your lighting toolkit.
Specifications
Light Fixture | |
Item Type | 1 x LED Light Panel |
Included Storage Case | 1 x Case |
Lumens | 1110 |
Photometrics | 2000K 18 fc / 200 Lux at 3.3' / 1 m* Standardised Measurement Supplied by the Manufacturer 2700K 26 fc / 282 Lux at 3.3' / 1 m Standardised Measurement Supplied by the Manufacturer 3200K 26 fc / 288 Lux at 3.3' / 1 m Standardised Measurement Supplied by the Manufacturer 4300K 27 fc / 301 Lux at 3.3' / 1 m 5600K 29 fc / 317 Lux at 3.3' / 1 m* Standardised Measurement Supplied by the Manufacturer 6500K 30 fc / 328 Lux at 3.3' / 1 m Standardised Measurement Supplied by the Manufacturer 7500K 30 fc / 328 Lux at 3.3' / 1 m Standardised Measurement Supplied by the Manufacturer 10000K 26 fc / 288 Lux at 3.3' / 1 m *Standardised Measurement Supplied by the Manufacturer |
Colour Temperature | 2000 to 10,000K |
Colour Modes | RGB, Daylight, Tungsten |
Colour Accuracy Standard | CRI 96 TLCI 98 SSI 74 at 5600K SSI 85 at 3000K TM-30 Rf 94 TM-30 Rg 100 |
Cooling System | Passive |
Dimming | Yes, Built-In Dimmer |
Expected Lamp Life | 50,000 Hours |
Beam Angle | 120° |
Built-In Flash | No |
Umbrella Mount | No |
Front Accessory Mount | None |
Connectivity | |
Wireless Remote Control Type | Bluetooth Wireless CRMX (LumenRadio) |
Mobile App Compatible | Yes: Android & iOS App Name: Sidus Link *As of February, 2023: Cheque with manufacturer for the most up-to-date compatibility |
Wireless Channels | None |
Wireless Groups | None |
Wireless Range | 262.5' / 80 m (Bluetooth) |
Power & I/O | |
Power Source | AC Power (Cable Included) Battery (Built-In) |
Battery | 1 x Proprietary Rechargeable Lithium (Built-In) • Up to 100-Minute Runtime at 100% Brightness • 120-Minute Charge Time |
Battery Charging | AC to DC Adapter (Included) |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A |
DC Input Power | 24 VDC at 0.9 A |
Included Adapter / Cable | 1 x Edison Plug to Barrel / Coax AC to DC Adapter |
Inline Switch | No |
Power Pass-Thru | No |
Power Consumption | 18 W |
Mounting | |
Fixture Mounting | Support Mount 2 x 1/4"-20 Female Thread |
Environmental | |
Water Resistance | None |
Environmental Protection | None |
General | |
Display | None |
Dimensions | 23.8 x 1.8 x 1.7" / 60.4 x 4.5 x 4.3 cm |
Weight | 2.2 lb / 1 kg (Fixture) |
Attachment Method | Slip-On |
Grid Angle | 45° |
In The Box
- Aputure INFINIBAR PB6 RGB LED Light Panel (0.6m)
- Aputure 45° Slip-On Grid for INFINIBAR PB12 RGB LED Light Panel
- AC Locking Power Cable (4m)
- Power Adapter with 8-Way Splitter (330W)
- Flight Case
