Aputure NOVA 9-Degrees 2x1 Tunable White LED Light Panel

Product #124761 | SKU AP0403044R | Aputure
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
Our Price $5,995
A deposit of $780.00 is required for this pre-order.
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
- +

Email me when stock arrives

Shipping & Availability
ETA to be confirmed. Deliver to Auckland for $38 Change location
Click & Collect Availability
Wellington Out of stock. ETA to be confirmed
Click & Collect

Features

  • For Studio & Film/TV Production
  • Output: 29,730 Lux at 16.4' (9º, 5600K)
  • 1800-20,000K CCT; BLAIR Chipset
  • Plus/Minus Green Adj.
  • 27.2 x 15.3" Panel; AC Power
  • CRI 95 | TLCI 95 | TM-30 Rf 95, Rg 100

Description

The Aputure NOVA 9-Degrees 2x1 Tunable White LED Light Panel delivers powerful, long-distance illumination—perfect for filmmakers who require sharp, directional lighting. Expanding the trusted NOVA series, this model harnesses 650W of output and features an ultra-tight native 9° beam, generating up to 29,730 lux at 16.4 feet (5600K). The NOVA 9° 2x1 stands out as a robust solution for creative professionals needing reliable, long-throw lighting with flexible colour control. Its variable colour temperature, ranging widely from 1800 to 20,000K, provides immense freedom for creative expression.

At its core is the advanced Aputure BLAIR chipset, integrating blue, lime, amber, indigo, and red diodes, which ensures rich and precise colour output. The lensed LED fixture incorporates four horizontal pixel zones, allowing for seamless pixel effect transitions. Advanced white point control is also available, complete with green/magenta colour correction to fine-tune your lighting for any scene.

The NOVA 9° 2x1 retains a suite of reliable features, including intuitive onboard and app control, 16-bit DMX512 in/out connectivity, LumenRadio CRMX wireless control, and support for Art-Net/sACN protocols. Firmware can be batch updated via Sidus Link Pro/Sidus Link, USB drive, or DMX, ensuring your light stays current and versatile for all production needs. Multiple dimming curves, four fan modes, and dual output options—max and constant modes—offer tailored performance for every situation.

Gaffers and lighting technicians will find excellent flexibility through the QuickClip front-mounting accessory ecosystem, a removable yoke that enables versatile rigging, and the capability to stack NOVA 9° 2x1 units in multi-light yoke arrays for larger, more directional lighting configurations. Durability is assured, thanks to its rugged, IP65-rated body, designed for the most challenging film and television shoots.

Aputure enhances the user experience by including a removable yoke, a flat diffuser, a 19.6-foot AC power cable, and a 1.6-foot safety chain with the NOVA 9° 2x1, making it both a practical and robust solution for professional lighting demands.

Specifications

Light Fixture
Item Type 1x LED Array LED Light Panel
Included Light Modifier 1x Diffuser
Included Storage Case No
Photometrics 9° at 1800K:
45,497 fc / 489,750 Lux at 3.3' / 1 m (Unmodified)
1819 fc / 19,590 Lux at 16.4' / 5 m (Unmodified)
467 fc / 5030 Lux at 32.8' / 10 m (Unmodified)
123 fc / 1329 Lux at 65.6' / 20 m (Unmodified)
9° at 2500K:
59,014 fc / 635,250 Lux at 3.3' / 1 m (Unmodified)

2360 fc / 25,410 Lux at 16.4' / 5 m (Unmodified)
658 fc / 7090 Lux at 32.8' / 10 m (Unmodified)
174 fc / 1881 Lux at 65.6' / 20 m (Unmodified)
9° at 3200K:
65,239 fc / 702,250 Lux at 3.3' / 1 m (Unmodified)
2609 fc / 28,090 Lux at 16.4' / 5 m (Unmodified)
711 fc / 7660 Lux at 32.8' / 10 m (Unmodified)
189 fc / 2040 Lux at 65.6' / 20 m (Unmodified)
9° at 4300K:
69,628 fc / 749,500 Lux at 3.3' / 1 m (Unmodified)

2785 fc / 29,980 Lux at 16.4' / 5 m (Unmodified)
774 fc / 8340 Lux at 32.8' / 10 m (Unmodified)
207 fc / 2229 Lux at 65.6' / 20 m (Unmodified)
9° at 5600K:
69,047 fc / 743,250 Lux at 3.3' / 1 m (Unmodified)
2761 fc / 29,730 Lux at 16.4' / 5 m (Unmodified)
772 fc / 8320 Lux at 32.8' / 10 m (Unmodified)
207 fc / 2229 Lux at / 20 m (Unmodified)
9° at 6500K:
67,979 fc / 731,750 Lux at 3.3' / 1 m (Unmodified)

2719 fc / 29,270 Lux at 16.4' / 5 m (Unmodified)
763 fc / 8220 Lux at 32.8' / 10 m (Unmodified)
204 fc / 2203 Lux at / 20 m (Unmodified)
9° at 10000K:
63,055 fc / 678,750 Lux at 3.3' / 1 m (Unmodified)*
2522 fc / 27,150 Lux at 16.4' / 5 m (Unmodified)
711 fc / 7660 Lux at 32.8' / 10 m (Unmodified)
191 fc / 2064 Lux at 65.6' / 20 m (Unmodified)

*Standardised Measurement Calculated Internally Based on Closest Distance
Colour Temperature 1800 to 20,000K
Colour Modes Daylight, Tungsten
Colour Accuracy Standard CRI 95
TLCI 95
SSI 90 at 3200K
SSI 86 at 5600K
TM-30 Rf 95
TM-30 Rg 100
CQS 96
Dimming App-Controlled / Built-In Dimmer / DMX / RDM (Continuous)
 • 0.1 to 100%
Cooling System Fan
Beam Angle 9° Unmodified
80° with Included Diffuser
Built-In Flash No
Pixel Zones 4
Preprogrammed Effects Yes
Umbrella Mount No
Front Accessory Mount Proprietary
Connectivity
Wireless Remote Control Type Bluetooth
CRMX
Mobile App Compatible Yes: Android & iOS
App Name: Sidus Link / Sidus Link Pro
Functionality: Remote Control
Wireless Range 328.1' / 100 m
Power & I/O
Power Source AC Power (Cable Included)
Inputs/Outputs 1x Unspecified AC Power Input (100 to 240 VAC, 50 / 60 Hz)
1x XLR 5-Pin DMX Input
1x XLR 5-Pin DMX Output
2x RJ45 Network Input/Output
1x USB-A Firmware Input
Input Power 100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable Yes
Power Consumption 650 W
800 W (Maximum)
Mounting
Yoke Type Manually-Operated Yoke
Fixture Mounting Not Specified by Manufacturer
General
Display Yes
Environmental Resistance Dust/Weather/Water-Resistant (IP65)
Operating Conditions -4 to 122°F / -20 to 50°C
Storage Conditions -40 to 176°F / -40 to 80°C
Dimensions 27.2 x 15.3 x 5.4" / 69.1 x 38.9 x 13.7 cm (Fixture without Yoke)
32.7 x 22.3 x 6.1" / 83.1 x 56.6 x 15.5 cm (Fixture with Yoke)
Weight 38.03 lb / 17.25 kg (Fixture without Yoke)
43.32 lb / 19.65 kg (Fixture with Yoke)

In The Box

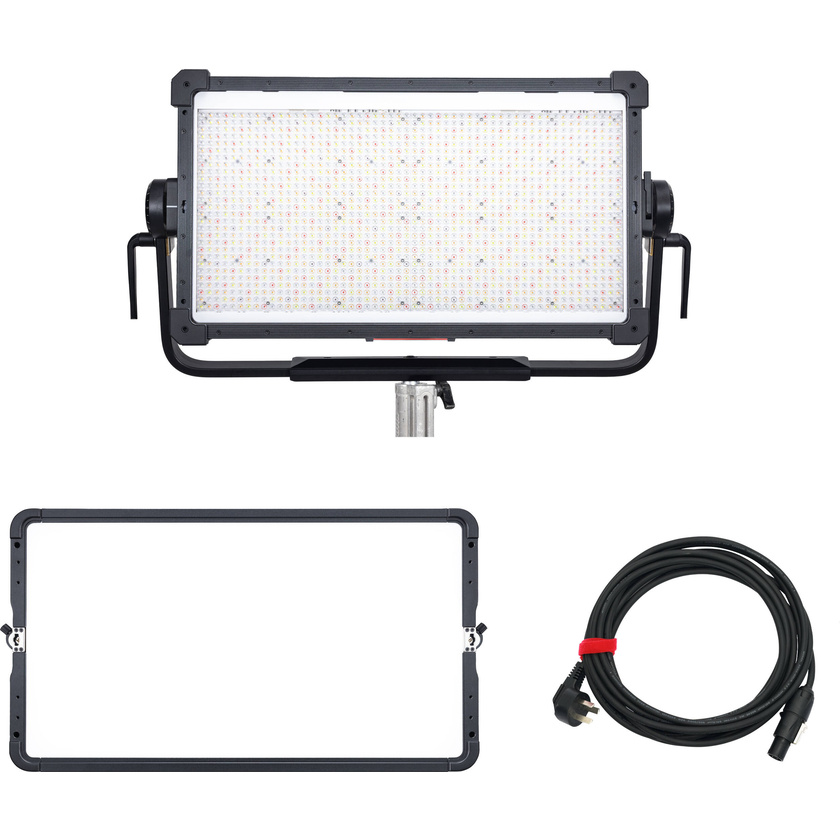

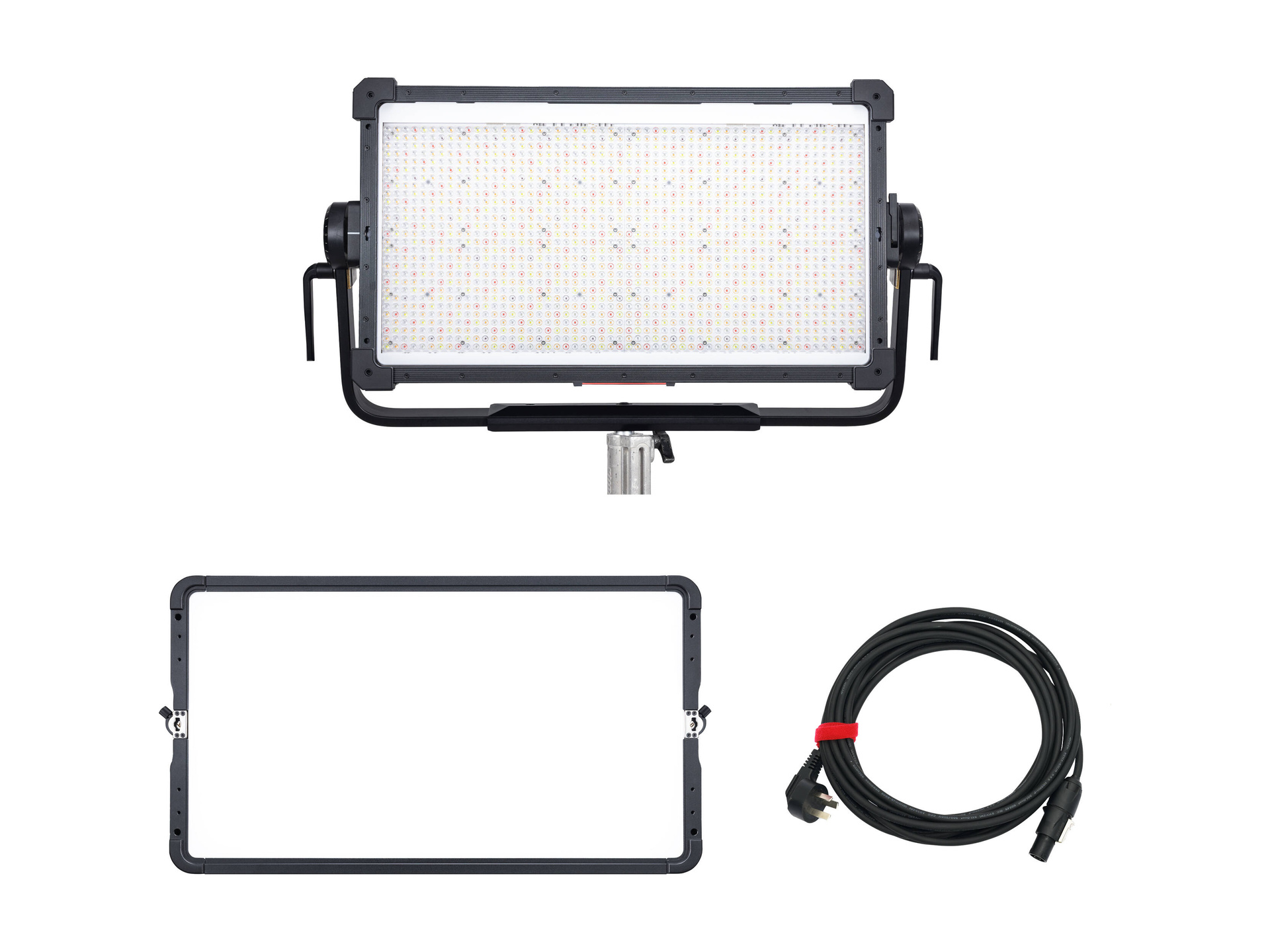

  • Aputure NOVA 9° 2x1 Tunable White LED Light Panel
  • Removable Yoke with Junior Pin
  • Flat Diffuser
  • AC Power Cable (19.6')
  • Safety Chain (1.6')
