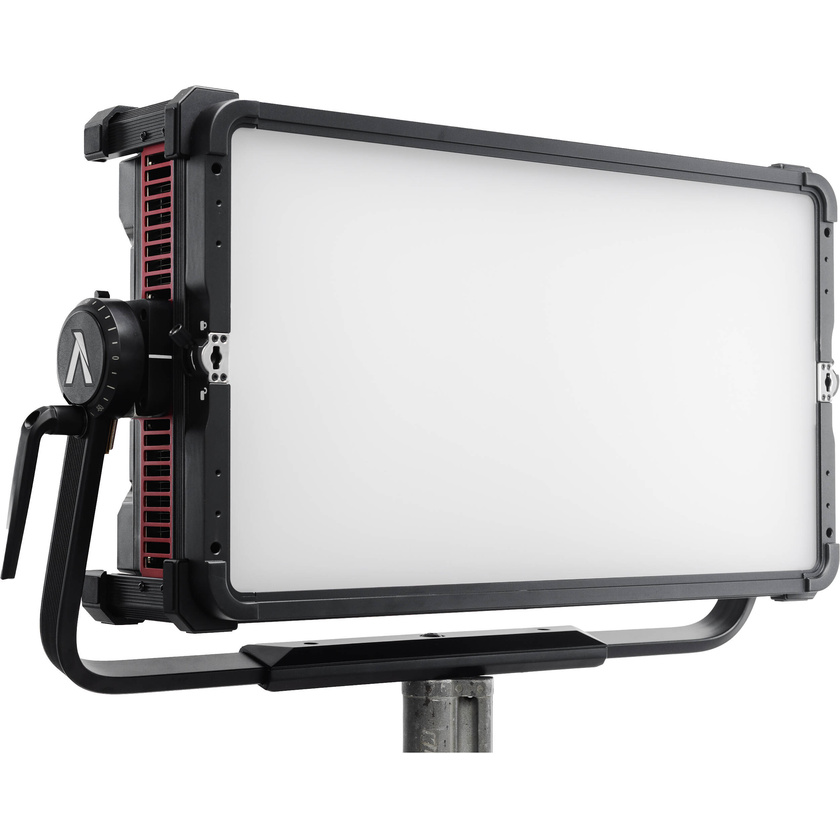

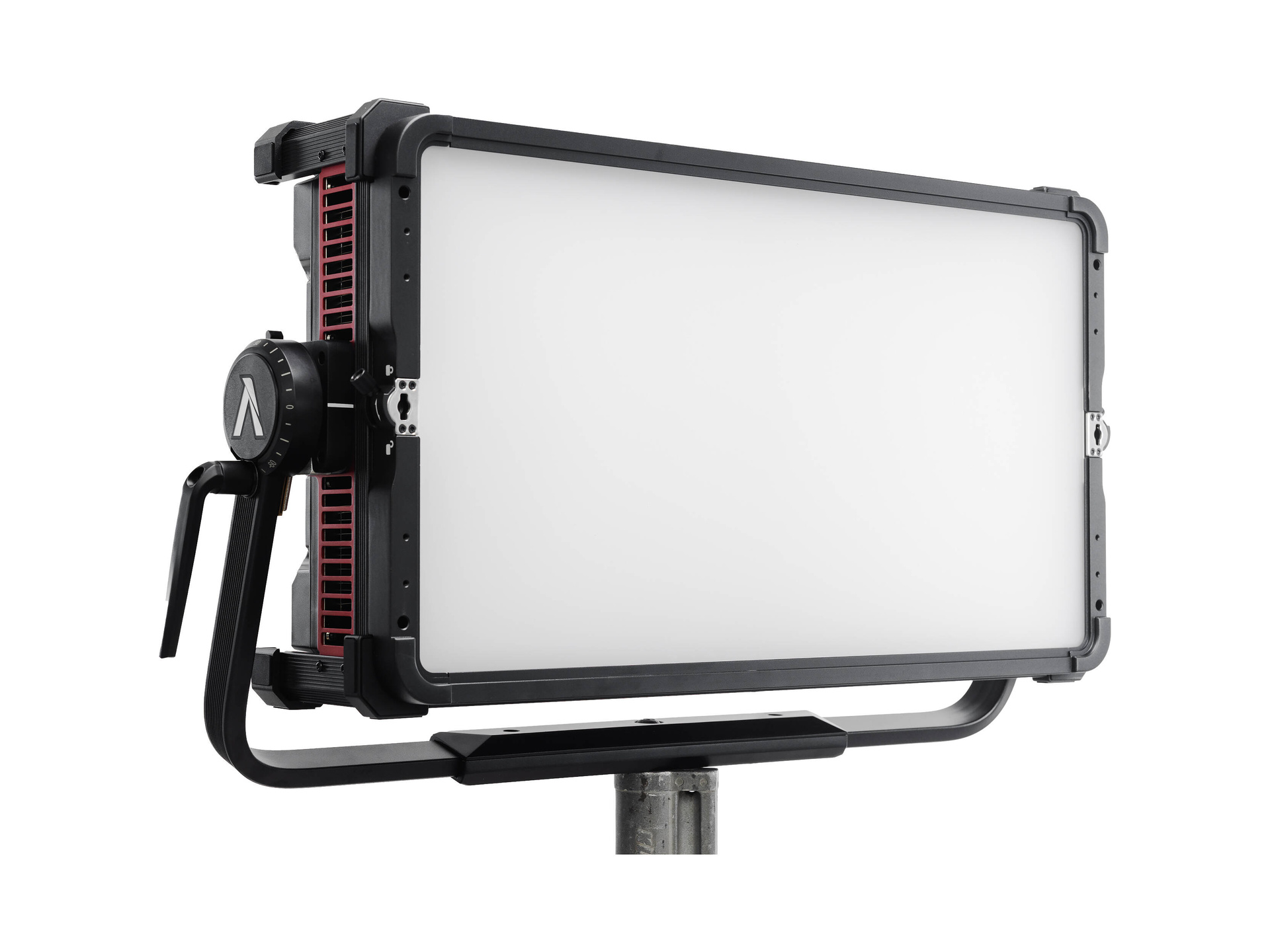

Aputure NOVA II 2x1 RGB LED Light Panel

Product #123286 | SKU AP0403040M | Aputure
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
Our Price $5,749
A deposit of $570.00 is required for this pre-order.
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
- +

Email me when stock arrives

Shipping & Availability
ETA to be confirmed. Deliver to Auckland for $36 Change location
Click & Collect Availability
Wellington Out of stock. ETA to be confirmed
Click & Collect

Features

  • For Studio & Film/TV Production
  • Output: 219,060 Lux at 3.3' (35º, 5600K)
  • 1800-20,000K CCT; RGB Colour Control
  • BLAIR-CG Chipset, Plus/Minus Green Adj.
  • 27.2 x 15.3" Panel; AC/DC Operation
  • CRI 95 | TLCI 95 | TM-30 Rf 95, Rg 100

Related Products


Description

Aputure has pushed the boundaries once again with the introduction of the Aputure NOVA II 2x1 RGB LED Light Panel, marking their most formidable addition to the NOVA series yet and surpassing the performance of the previous Nova P600c. Designed to cater to complex on-set workflows, this robust lighting solution is powered by the advanced Aputure BLAIR-CG chipset, rendering the NOVA II 2x1 a truly versatile, full-colour LED panel ready for professional film, television, and broadcast applications. Delivering a remarkable 1000W of output, it incorporates LEDs rated with high CRI, TLCI, TM-30, SSI, and CQS values, ensuring exceptional color fidelity. Its expansive CCT range, stretching from 1800 to 20,000K, grants users creative freedom over the light’s colour temperature, while the ability to fine-tune plus/minus green allows for even greater colour accuracy.

Sophisticated Control Options

The NOVA II 2x1 stands out with its reliable and advanced control capabilities. Whether you prefer intuitive onboard adjustments, app control, or advanced 16-bit DMX512 in/out connectivity, the panel is designed for seamless integration into a variety of lighting rigs. It also supports LumenRadio CRMX, Art-Net/sACN, and convenient USB or DMX batch firmware upgrades. The lighting experience is further refined with access to multiple dimming curves, four distinct fan modes, and dual output settings that offer both maximum and constant power modes.

Streamlined Light Shaping and Rugged Design

Gaffers and lighting technicians will appreciate NOVA II 2x1's direct front-mounting accessory system, which simplifies the mounting process and accelerates workflow by enabling easier use of slide-in light modifiers. Built to endure, the fixture boasts a rugged IP65-rated body, engineered to withstand the demands of the most challenging production environments. Included with the panel are a removable yoke for flexible mounting options, a flat diffuser for optimal light softening, and a 19.6-foot AC power cable to accommodate various setup needs.

Specifications

Light Fixture
Item Type 1x LED Array LED Light Panel
Included Light Modifier 1x Diffuser
Included Storage Case No
Photometrics 35° at 3200K:
18,059 fc / 194,400 Lux at 3.3' / 1 m (Unmodified)
2577 fc / 27,750 Lux at 9.8' / 3 m
35° at 5600K:
18,329 fc / 197,300 Lux at 3.3' / 1 m (Unmodified)
2636 fc / 28,380 Lux at 9.8' / 3 m
95° at 3200K:
3725 fc / 40,100 Lux at 3.3' / 1 m (with Diffuser)
468 fc / 5040 Lux at 9.8' / 3 m (with Diffuser)
95° at 5600K:
3781 fc / 40,700 Lux at 3.3' / 1 m (with Diffuser)
476 fc / 5130 Lux at 9.8' / 3 m (with Diffuser)
Colour Temperature 1800 to 20,000K
Colour Modes RGB, Daylight, Tungsten
Colour Accuracy Standard CRI 95
TLCI 95
SSI 90 at 3200K
SSI 86 at 5600K
TM-30 Rf 95
TM-30 Rg 100
CQS 96
Dimming App-Controlled / Built-In Dimmer / DMX / RDM (Continuous)
 • 0.1 to 100%
Cooling System Fan
Beam Angle 35° Unmodified
95° with Included Diffuser
Built-In Flash No
Pixel Zones 2
Preprogrammed Effects Yes
Umbrella Mount No
Front Accessory Mount Proprietary
Connectivity
Wireless Remote Control Type Bluetooth
Wireless CRMX
Mobile App Compatible Yes: Android & iOS
App Name: Sidus Link / Sidus Link Pro
Functionality: Remote Control
Wireless Range 328.1' / 100 m
Power & I/O
Power Source AC Power (Cable Included)
Inputs/Outputs 1x Unspecified AC Power Input (100 to 240 VAC, 50 / 60 Hz)
1x XLR 5-Pin DMX Input
1x XLR 5-Pin DMX Output
2x RJ45 Network Input/Output
1x USB-A Firmware Input
Input Power 100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable Yes
Power Consumption 1000 W
1250 W (Maximum)
Mounting
Yoke Type Manually-Operated Yoke
Fixture Mounting 1x 1-1/8" Stud (Via Yoke Mount)
General
Display Yes
Environmental Resistance Dust/Weather/Water-Resistant (IP65)
Operating Conditions -4 to 113°F / -20 to 45°C
Storage Conditions -40 to 176°F / -40 to 80°C
Dimensions 27.2 x 15.3 x 5.4" / 69.1 x 38.9 x 13.7 cm (Fixture without Yoke)
32.7 x 22.3 x 6.1" / 83.1 x 56.6 x 15.5 cm (Fixture with Yoke)
Weight 35.83 lb / 16.25 kg (Fixture without Yoke)
41 lb / 18.6 kg (Fixture with Yoke)

In The Box

  • Aputure NOVA II 2x1 RGB LED Light Panel
  • Removable Yoke with Junior Pin
  • Flat Diffuser
  • AC Power Cable (19.6')

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Aputure NOVA II 2x1 RGB LED Light Panel
  • Manufacturer: Aputure
  • Model: NOVA II
  • SKU: AP0403040M
  • RM Product #: 123286
  • Colour Temperature: 1800 - 20,000K
  • Warranty: 1 year manufacturer warranty
