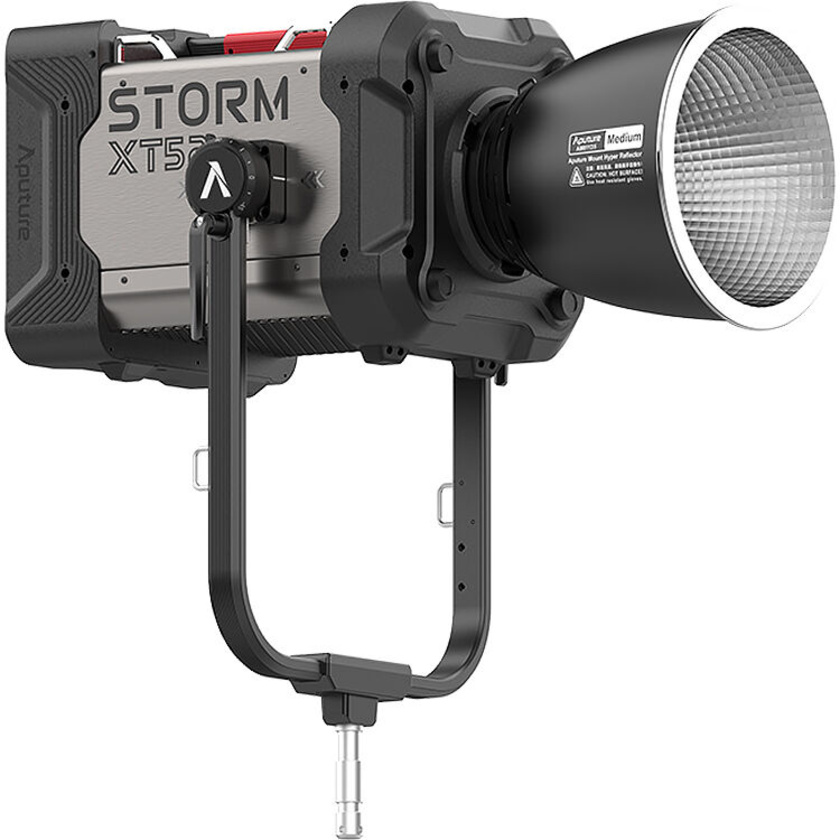

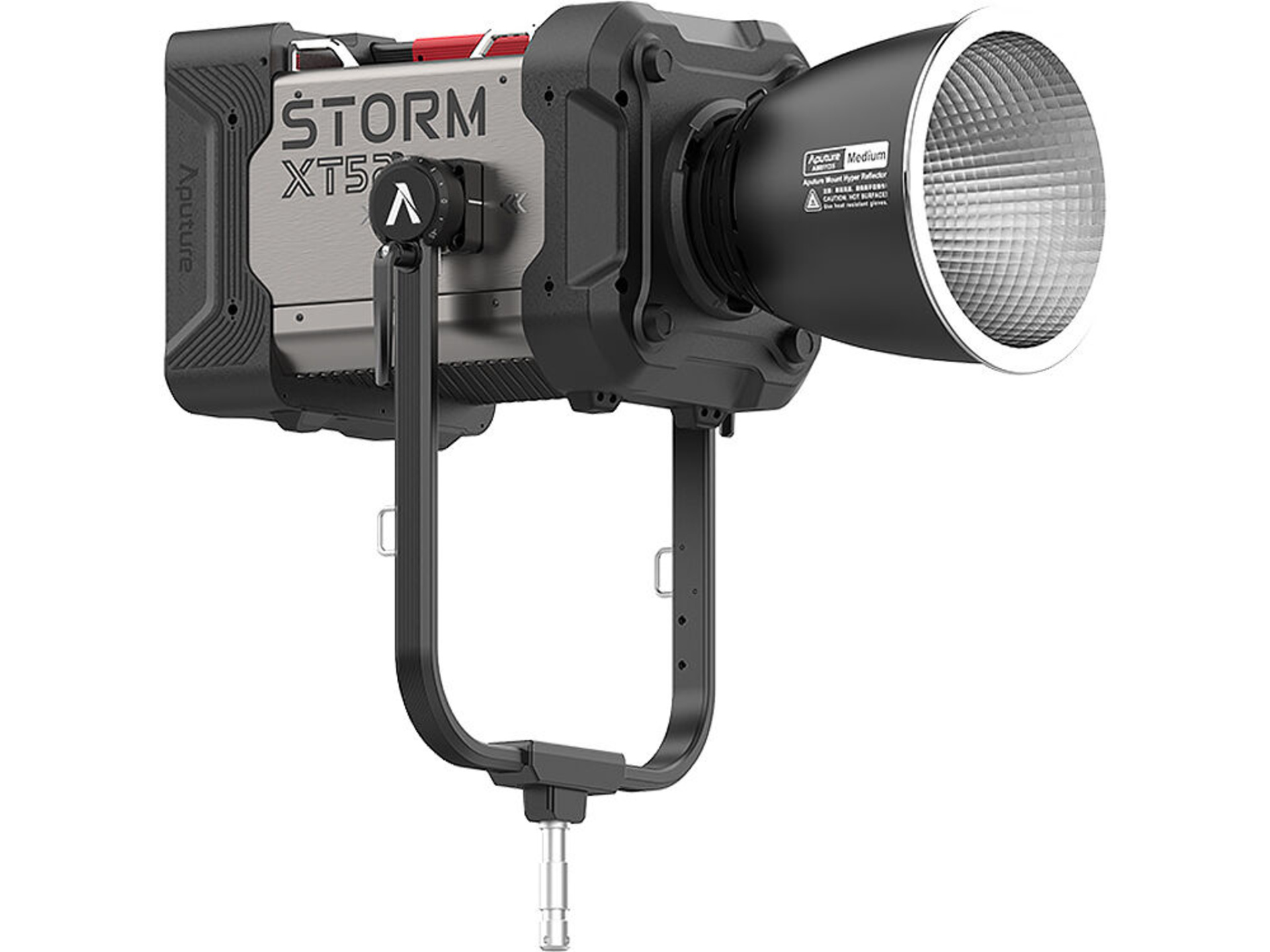

Aputure STORM XT52 Point-Source Tunable-White LED Monolight Dual Flight Case Kit (Bare Ends Cable)

Product #122875 | SKU AG07060003 | Aputure
Usually ships in 8 - 10 weeks what does this mean?
Our Price $21,249
Usually ships in 8 - 10 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 8 - 10 weeks. Deliver to Auckland for $140 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 8 - 10 weeks
Click & Collect

Features

  • For Studio & Film/TV Production
  • Output: 103,500 Lux at 9.8' w/ Reflector
  • 2500-10,000K CCT
  • High-Output/Tunable-White/BLAIR Chipset
  • Onboard, DMX & App Control
  • Art-Nett, sACN & LumenRadio CRMX Control

Description

The Aputure STORM XT52 Point-Source Tunable-White LED Monolight Dual Flight Case Kit (Bare Ends Cable) utilizes the BLAIR (Blue/Lime/Amber/Indigo/Red) light engine, delivering the highest quality white light and greatest +/- green adjustability of any LED technology. The BLAIR light engine's indigo emitters enhance fluorescing materials like natural daylight and tungsten sources.

The STORM XT52's output is also the brightest of any LED point source fixture in the industry, 41,900 Lux at 5M with a 35° reflector. This exceeds the brightness of a 6,000W HMI fixture.

Color Tuning Control

The revolutionary BLAIR light engine can also output saturated colors across more than 70% of Rec.2020 color space using Limited HSIC+ and x,y control modes. Achieve deep crimson sunsets, rich sodium vapor ambers, and subtle color effects without gels. STORM XT52 is more than twice as powerful as any other point source color light.

Smallest Size and Lowest Weight in Class

The STORM XT52 lamp head weighs 27.80kg (61.29lbs), and can be lifted by one person and operated on a standard crank stand. The portable XT52 control box is the size of a briefcase and weighs just 13.40kg (29.54lbs).

Extend Your Reach

Extend the 7.5M STORM XT52 head cable up to 45M. Place the lamp head in a cherry picker and leave the control box on the ground to save on weight and keep physical controls nearby. Power the STORM XT52 at full brightness on standard 6,500W generators.

Specifications

Light Fixture
Item Type 1x LED Monolight
Included Light Modifier 1x Reflector
Included Storage Case Yes
Photometrics 93° at 3200K:
15,777 fc / 169,830 Lux at 3.3' / 1 m (Unmodified)
1753 fc / 18,870 Lux at 9.8' / 3 m (Unmodified)
667 fc / 7180 Lux at 16.4' / 5 m (Unmodified)
93° at 5600K:
18,461 fc / 198,720 Lux at 3.3' / 1 m (Unmodified)

2051 fc / 22,080 Lux at 9.8' / 3 m (Unmodified)
782 fc / 8420 Lux at 16.4' / 5 m (Unmodified)
35° at 3200K:
86,536 fc / 931,500 Lux at 3.3' / 1 m (with Reflector)
9615 fc / 103,500 Lux at 9.8' / 3 m (with Reflector)
3288 fc / 35,400 Lux at 16.4' / 5 m (with Reflector)
35° at 5600K:
104,010 fc / 1,119,600 Lux at 3.3' / 1 m (with Reflector)

11,556 fc / 124,400 Lux at 9.8' / 3 m (with Reflector)
3892 fc / 41,900 Lux at 16.4' / 5 m (with Reflector)

*Standardised Measurement Calculated Internally Based on Closest Distance
Colour Temperature 2500 to 10,000K (in CCT Mode)
Colour Modes Daylight, Tungsten
Colour Accuracy Standard CRI 96
TLCI 96
SSI 87 at 3200K
SSI 86 at 5600K
TM-30 Rf 96
TM-30 Rg 101
Dimming App-Controlled / Built-In Dimmer / DMX
 • 0 to 100%
Cooling System Fan
Beam Angle 93° Unmodified
35° with Included Reflector
Built-In Flash No
Preprogrammed Effects No
Umbrella Mount No
Front Accessory Mount Proprietary
Connectivity
Wireless Remote Control Type Bluetooth
Wireless CRMX
Mobile App Compatible Yes: Android & iOS
App Name: Sidus Link/Link Pro
Functionality: Firmware Update, Remote Control
Wireless Range 328.1' / 100 m
Power & I/O
Power Source AC Power (Cable Included) *Requires Power Supply/Controller (Included)
Inputs/Outputs Light Fixture
1x Unspecified Power Input
Power Supply/Controller
1x Unspecified Power Output
1x Unspecified AC Power Input
1x XLR 5-Pin DMX Input
1x XLR 5-Pin DMX Output
1x etherCON/RJ45 Network Input/Output
1x USB-A Firmware Input
Input Power 100 to 240 VAC, 50 / 60 Hz at 32 A
Included Adapter / Cable 1x Bare Ends to Unspecified Cable (3.3' / 1 m)
1x Unspecified to Unspecified Cable
Inline Switch No
Power Pass-Thru No
Power Consumption 5200 W
6000 W (Maximum)
Mounting
Yoke Type Manually-Operated Yoke
Fixture Mounting 1x 1-1/8" Stud (Via Yoke Mount)
General
Display LCD (Via Included Power Supply/Controller)
Environmental Resistance Dust/Water-Resistant (IP65)
Operating Conditions -4 to 113°F / -20 to 45°C
Storage Conditions -40 to 176°F / -40 to 80°C
Dimensions 21.7 x 14.3 x 13.9" / 55 x 36.2 x 35.3 cm (Fixture without Yoke)
32.7 x 21.7 x 21.3" / 83 x 55 x 54.1 cm (Fixture with Yoke)
16.2 x 15.3 x 6.3" / 41.1 x 38.8 x 16 cm (Power Supply/Controller)
Weight 61.3 lb / 27.8 kg (Fixture without Yoke)
69 lb / 31.3 kg (Fixture with Yoke)
29.5 lb / 13.4 kg (Power Supply/Controller)

In The Box

  • Aputure STORM XT52 Point-Source Tunable-White LED Monolight Dual Flight Case Kit (Bare Ends Cable)
  • Removable Yoke
  • Aputure Mount Protection Cover
  • Control Box
  • Aputure-Mount Medium Reflector (35°)
  • AC Power Cable (3.3')
  • Head Cable (24.6')
  • Safety Cable
  • Lamp Head Flight Case
  • Control Box Flight Case

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Aputure STORM XT52 Point-Source Tunable-White LED Monolight Dual Flight Case Kit (Bare Ends Cable)
  • Manufacturer: Aputure
  • Model: Storm XT52
  • SKU: AG07060003
  • RM Product #: 122875
  • Warranty: 1 year manufacturer warranty
