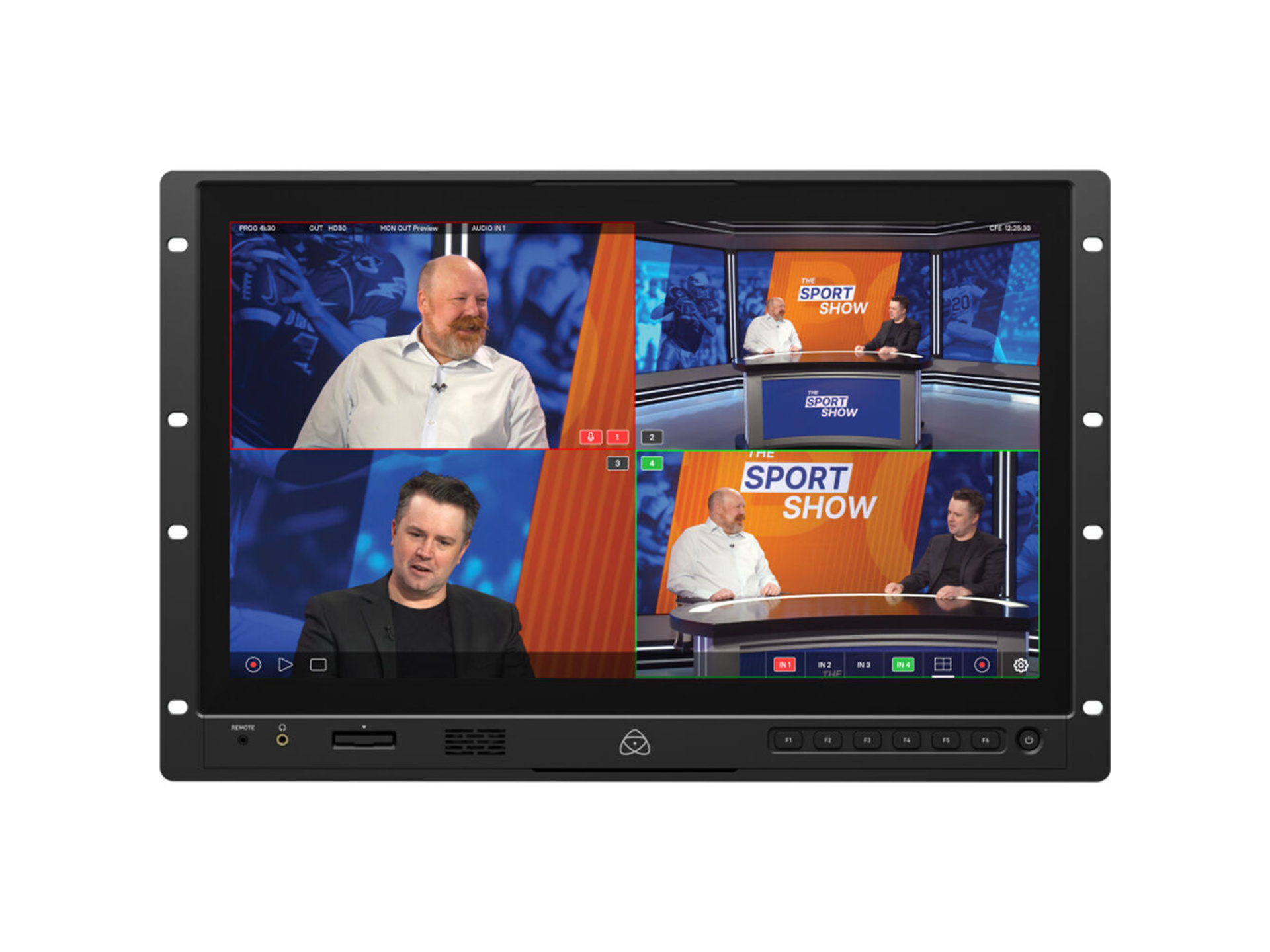

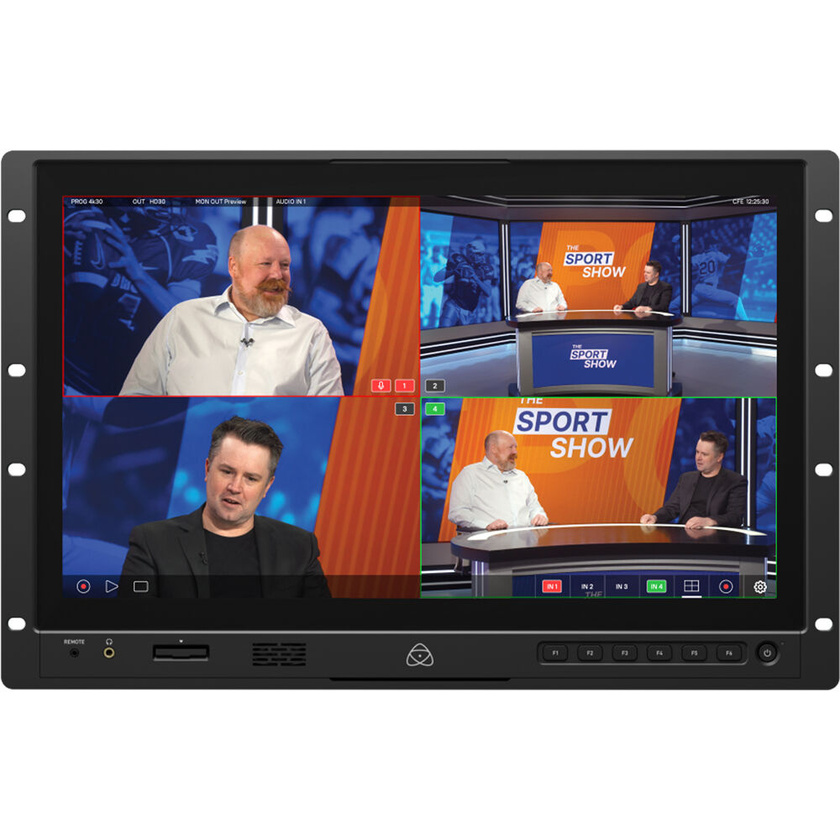

Atomos 19" Shogun AV-19 Rackmount 4K HDR Monitor-Recorder-Switcher

Product #124784 | SKU ATOMSHGAV1 | Atomos
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
Our Price $4,579
A deposit of $460.00 is required for this pre-order.
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
- +

Email me when stock arrives

Shipping & Availability
ETA to be confirmed. Deliver to Auckland for $17 Change location
Click & Collect Availability
Wellington Out of stock. ETA to be confirmed
Click & Collect

Features

  • 19" 3840 x 2160 Capacitive Touchscreen
  • HDMI and 12G-SDI Video I/O, LANC Control
  • 6K Raw, 10-Bit HDR, NDI|HX3 Support
  • 1200 cd/m² Brightness
  • Real-Time ProRes/Raw, DNx, Pre-Roll, LTC
  • ISO Recording to CFexpress or USB-C

Description

Elevate your production monitoring capabilities with the versatile Atomos 19" Shogun AV-19 Rackmount 4K HDR Monitor-Recorder-Switcher, the newest powerhouse in the Atomos Shogun range of onboard camera video monitor-recorders. Designed for professionals, this expansive 19-inch studio display delivers a comprehensive solution by integrating monitoring, recording, and switching functionalities into a single device. Its vibrant capacitive touchscreen ensures intuitive control and crisp visuals, making it a valuable asset for demanding production environments. The unit is equipped with both HDMI and 12G-SDI input and output options, allowing flexible connectivity across a variety of workflows. In addition, it features NDI|HX3 support through Gigabit Ethernet, facilitating seamless integration in networked setups. With its robust feature set, the Shogun AV-19 is ideal for applications ranging from cinema capture to live event production and broadcast operations.

Key Features
  • 19" bright capacitive touchscreen studio display
  • Combines monitoring, recording, and switching in one unit
  • Supports HDMI and 12G-SDI input/output
  • Features NDI|HX3 support via Gigabit Ethernet
  • Perfect for cinema, live events, and broadcast production workflows

Specifications

Display
Panel Type IPS-Type LCD
Display Size 19.00" / 48.3 cm
Native Resolution 3840 x 2160
Aspect Ratio 16:9
Touchscreen Yes
Maximum Brightness 1200 nits / cd/m2
Colour Support 1.07 Billion Colours (10-Bit)
HDR Support Yes: Hybrid Log Gamma
Colour Gamut 100% Rec. 709
99% DCI-P3
87% Rec. 2020
99% NTSC
LUT Support Yes
Image Controls Anamorphic De-Squeeze, False Colour, Focus Peaking, Image Flip, RGB Parade, Vectorscope, Waveform, Zebra
Inputs/Outputs
Video I/O 1x HDMI 2.0 Input
2x BNC (12G-SDI) Input
2x BNC (3G-SDI) Input
1x HDMI 2.0 Output
1x BNC (12G-SDI) Output
2x USB-C 3.0 / 3.1/3.2 Gen 1 Output
1x RJ45 (NDI) Input/Output
Embedded Audio HDMI/SDI
Audio I/O 2x XLR Mic/Line Input
2x XLR Monitor/Line Output
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker No
Power I/O 1x XLR 4-Pin (16.8 VDC) Input
Other I/O 1x BNC (LTC) Input
1x 2.5 mm (LANC) Input/Output
Media/Memory Card Slot Single Slot: CFexpress Type B [Supports Recording]
Wireless
Wi-Fi No
Bluetooth No
Mobile App Compatible No
Format Support
Video Format HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)
5.7K: 30
DCI 4K: 60
UHD 4K: 60
1080p: 60
1080i: 60/50
720p: 60
HDMI (8/10-Bit 4:2:2/4:2:0 YCC)
DCI 4K
UHD 4K: 60
1080p
1080i: 60/50
720p: 60
Video Signal Conversion HDMI to SDI

SDI to HDMI
Timecode Support Yes
Recording
Pulldown Conversion 2:2, 3:2
Camera Trigger SDI, HDMI
Pre-Roll Record 4K: 2 Seconds
Full HD: 8 Seconds
Encoding Formats x
ProRes 422, 422 HQ, HQ, LB, LT, Raw, SQ
DNxHD 36, 145, 220x, HQ, HQX, LB, SQ
Maximum Audio Tracks 12
Closed Caption Support No
Power
Input Power 12 to 16.8 VDC
Battery No
Power Consumption 75 W
General
Environmental Resistance No
Operating Conditions Up to 104°F / 40°C
Material of Construction Aluminium, Plastic
Dimensions 19 x 12.2 x 2.4" / 482 x 310 x 60 mm
Weight 11.51 lb / 5.22 kg

In The Box

  • Atomos 19" Shogun AV-19 Rackmount 4K HDR Monitor-Recorder-Switcher
  • 4-Pin XLR Power Supply
  • IEC Power Cable Kit (5 International Plugs)
  • 10 x Rackmount Nut + Bolt
  • Cleaning Cloth
