Audac APG20 Active Audio Receiver Gateway RCA
Product #76142 | SKU APG20MK2
Usually ships in 1 - 2 weeks
0.0 (no ratings yet) Thanks for your rating!


Audac APG20 Active Audio Receiver Gateway RCA

Product #76142 | SKU APG20MK2
Usually ships in 1 - 2 weeks


Product Features
  • High quality audio transmissions
  • Covers distances up to 300 meters
  • Up to 600m with additional power supplies
Customer Reviews
0.0 (no ratings yet) Thanks for your rating!
Product Details
  • Product: #76142
  • SKU: APG20MK2

Related Products

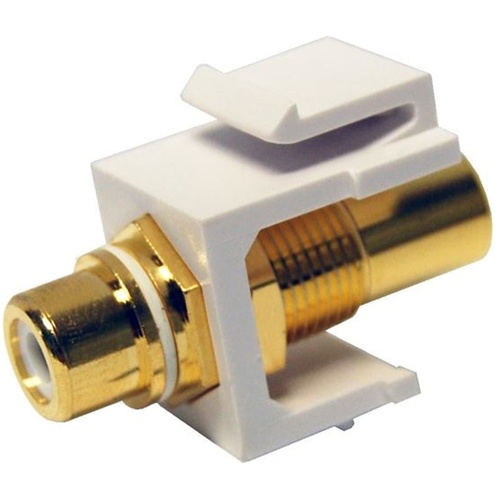

DYNAMIX RCA to RCA Gold Plated Keystone Adapter (White) DYNAMIX RCA to RCA Gold Plated Keystone Adapter (White)
DYNAMIX 15m Component Video 3 to 3 RCA Cable (Red, Blue & Green) DYNAMIX 15m Component Video 3 to 3 RCA Cable (Red, Blue & Green)

Description

The Audac APG20 Active Audio Receiver Gateway RCA is an audio receiver gateway converting databus transmitted audio signals to standard line and microphone level signals. The audio output of the APG20 can be fed to regular inputs on audio amplifiers, pre-amplifiers, mixers or many more. In combination with the matching input modules (WLI and WMI) it offers a solution for two channel audio transmission (line & microphone) covering distances up to 300 meters over standard UTP CAT5E (or better) cabling. Distances up to 600 meters can be achieved when applying additional power supplies.

Due to the differential bus input with increased voltage levels, the received signals are insensitive for noise, interference and attenuation over the long transmission distance. This offers the appropriate solution for high quality audio transmissions in long distance applications while maintaining high quality audio reproduction. The bus input carrying both audio channels, an RS-485 data channel and 24 Volts distribution to the transmitter end is implemented using an RJ45 connector. The audio outputs are performed using dual RCA (line) and female XLR (microphone) connections. The XLR output is accompanied with a switch allowing selection between a -40 dB and 0 dB output level. The signals carried on the RS-485 pair of the databus are linked to an RJ45 output connection, allowing daisy chaining to the controlled equipment.

A variety of optionally available mounting brackets for the AUDAC S-Box product range are allowing desk, closet or 19” equipment rack installation.

Specifications

Connection standard TIA/EIA T568B
Cabling UTP CAT5E (or better)
Inputs Type Audio / RS-485 / 24V DC Bus
Connector RJ45
Power Consumption 0.8 W (PSD241 included)
Supply 24V DC (PSD241 switching Power supply included 100 ~ 240V AC / 47 ~ 63 Hz)
Max. cable length Without external PSU 300 m
With external PSU 600 m
Outputs Microphone Type 1 x Microphone outputs (Level switchable 0 dB ~ -40 dB)
Connector XLR male
Line Type 1 x Line output
Connector Dual RCA
Data link Type 1 x RS-485 data link outputs
Connector RJ45

In The Box

  • Audac APG20 Active Audio Receiver Gateway RCA

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review
Details
  • Product: Audac APG20 Active Audio Receiver Gateway RCA
  • Manufacturer: Audac
  • Model: APG20MK2
  • SKU: APG20MK2
  • RM Product #: 76142
