Audac VC3102 100v Volume Controller 100w 80 X 80 mm

Product #77121 | SKU VC3102-W | Audac
In stock Ships today
In stock Ships today

this item may be nonreturnable

Features

  • 11 steps of 3 dB
  • Can handle up to 100w
  • Relay and separate input for 24V priority signals
  • Sturdy ABS construction

Related Products


Description

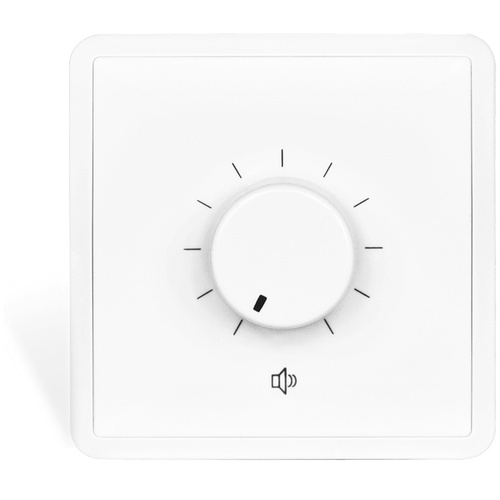

The Audac VC3102 100v Volume Controller 100w 80 X 80 mm is a 100 Volt volume controller capable of handling a power up to 100 Watt. The volume is adjustable with a rotatable dial in 11 steps of 3 dB.

It is equipped with a relay and separate input for the reception of 24V priority signals. This means that when a priority signal occurs, the volume will be automatically switched to maximum level. This can be very useful for emergency and evacuation messages. Due to it’s slim and good looking design, these volume controls will blend into all kinds of different environments or interiors. The construction is made of sturdy ABS and therefore suitable for big projects in industrial buildings as well as standard home interiors. The dimensions are 80 mm x 80 mm, and a built-in depth of 46 mm is required. The connections are made at the back with screw terminal blocks.

Specifications

SYSTEM SPECIFICATIONS
Max. Power 100 W
Max. operation Voltage 100 V
Attenuation 11 x 3 dB
Priority relay 24 V / 25 mA
PRODUCT FEATURES
Dimensions 80 x 80 x 50 mm (W x H x D)
Built-in depth 46 mm
Weight 0.340 kg
Construction ABS
Colours White

In The Box

  • Audac VC3102 100v Volume Controller 100w 80 X 80 mm

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Audac VC3102 100v Volume Controller 100w 80 X 80 mm
  • Manufacturer: Audac
  • Model: VC3102-W
  • SKU: VC3102-W
  • RM Product #: 77121
