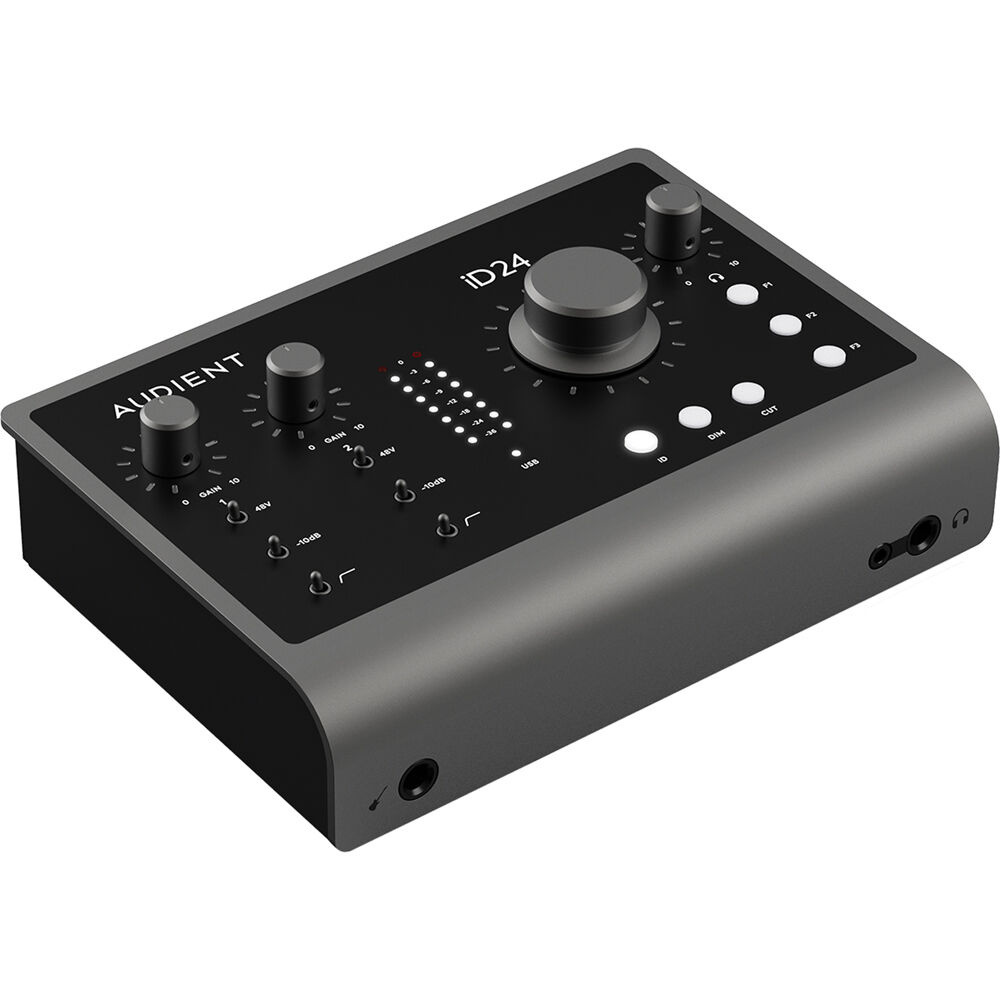

Audient iD24 Desktop 10x14 USB-C Audio Interface

Product #108126 | SKU ID24 | Audient
In stock Ships Tuesday
Our Price $729
In stock Ships Tuesday
- +

Shipping & Availability
Ships Tuesday. Deliver to Auckland for $9.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 working days
Click & Collect

Features

  • Musician, Podcaster, Producer, Streamer
  • 2 Class-A Mic Preamps, Hi-Z Input
  • 2 S/PDIF or 8-Channel ADAT I/O
  • 32-Bit DAC, 126 dB Dynamic Range
  • 2 Fully Balanced Inserts
  • 2 Headphone Outs, 4 Monitor Outs

Description

Introducing the Audient iD24 Desktop 10x14 USB-C Audio Interface, the audio interface made for producers and engineers. Featuring two Audient Console Mic Preamps, class leading converters and an intuitive layout, iD24 effortlessly combines astonishing audio performance with ease of use. Add to that professional must have features like balanced inserts, ADAT expandability and customisable monitor control, iD24 makes getting studio quality results easier than ever.

Every iD interface features the Audient Console Mic Preamp, the same discrete circuit design found in Audients renowned recording console the ASP8024-HE. Designed to deliver ultra- low noise and low distortion with a touch of classic analogue warmth, iD24’s two Audient Console Mic Preamps deliver a clean, accurate and true to source translation of your audio.

Hear every nuance, every aspect of your audio with iD24’s class leading converters. With 32-bit DAC converter technology and 126dB of dynamic range, iD24s converters make sure you hear subtle details, identify problematic issues and make better mix decisions. Experience remarkable clarity from the moment you press play.

Be ready to expand when you need to tackle bigger sessions like recording drums or a live band with iD24’s optical input and output connections. Supporting both ADAT and SPDIF, iD24 lets you boost your I/O by adding up to 8 channels of mic preamps to your setup.

Integrate your favourite outboard FX prior to conversion and start creating signal chains that rival the very best. The insert returns also gives you direct access to the A/D converters providing the cleanest signal path possible, making it great for print-backs or integrating outboard line level sources.

Designed to replicate the input stage of a classic valve amplifier, iD24’s harmonically rich JFET Instrument Input gives you the perfect sonic foundation for your guitars or basses before you hit your amp sims.

Specifications

Key Specs
Form Factor Desktop
Channels of I/O 10 Input / 14 Output
Maximum Sampling Rate 96 kHz / 32-Bit
Number of Microphone Preamps 2 Preamps
Analogue Audio I/O 2 x Combo XLR-1/4" 3-Pin Mic/Line Input
1 x 1/4" TS Unbalanced Hi-Z Input (Front Panel)
2 x 1/4" TRS Balanced Insert Send
2 x 1/4" TRS Balanced Insert Return
4 x 1/4" TRS Balanced Monitor Output
1 x 1/4" TRS Headphone Output (Front Panel)
1 x 1/8" / 3.5 mm TRS Headphone Output (Front Panel)
Digital Audio I/O 1 x TOSLINK Optical ADAT / S/PDIF Input
1 x TOSLINK Optical ADAT / S/PDIF Output
Host Connection 1 x USB-C
OS Compatibility Windows
macOS
*As of February, 2023: Cheque with manufacturer for the most up-to-date compatibility
Power Requirements USB Bus Power
Display 1 x LED
1 x Colour Multi-Segment LED Metre
Channels of I/O 10 Input / 14 Output
Built-In DSP Yes
Maximum Sampling Rate 96 kHz / 32-Bit
Number of Microphone Preamps 2 Preamps
Built-In Microphone None
Input Level Adjustment 2 x Knob
Expansion Slots None
Signal Processing
Pad Mic/Line:
-10 dB (Switchable per Channel)
Gain/Trim Range 0 to +58 dB
High-Pass Filter 100 Hz
Solo/Mute Mute per Master
Connectivity
Analogue Audio I/O 2 x Combo XLR-1/4" 3-Pin Mic/Line Input
1 x 1/4" TS Unbalanced Hi-Z Input (Front Panel)
2 x 1/4" TRS Balanced Insert Send
2 x 1/4" TRS Balanced Insert Return
4 x 1/4" TRS Balanced Monitor Output
1 x 1/4" TRS Headphone Output (Front Panel)
1 x 1/8" / 3.5 mm TRS Headphone Output (Front Panel)
Phantom Power 48 V ± 4 V, Selectable On/Off (Selectable on Individual Inputs)
Phantom Power Current 10 mA per Channel
Digital Audio I/O 1 x TOSLINK Optical ADAT / S/PDIF Input
1 x TOSLINK Optical ADAT / S/PDIF Output
Host Connection 1 x USB-C
Host Connection Protocol USB 2.0, USB 3.0 / 3.1/3.2 Gen 1
USB (Non-Host) None
Sync I/O 1 x BNC Word Clock Output
Network I/O None
MIDI I/O None
Performance
Frequency Response 10 Hz to 40 kHz
Maximum Input Level Line:
+12 dBu
A/D Convertors:
+12.5 dBu for 0 dBFS
Maximum Output Level D/A Convertors:
12 dBu at 0 dBFS
Headphone Output Power 1/4": 232 mW into 50 Ohms (Max)
Impedance Mic :
> 2.8 Kilohms
Line :
> 8 Kilohms
Hi-Z :
> 500 Kilohms
Dynamic Range A/D Convertors:
122 dBA
D/A Convertors:
126.5 dBA
Headphone:
124 dBA
SNR Mic:
97.5 dB (Unweighted)
100 dBA
THD+N Mic:
-96 dB / 0.0015%
Line:
-97 dB / 0.0013%
A/D Convertors:
-108 dB / 0.0004%
D/A Convertors:
-110 dB / 0.0003%
EIN 129 dB A-Weighted
CMRR > 75 dB
Digital Audio
dBFS Reference Level +12 dBu = 0 dBFS
Sample Rates TOSLINK Optical S/PDIF:
Up to 96 kHz
Sample Rate Conversion None
Bit Depths 32-Bit
Latency 0.344 ms at 44.1 kHz
0.312 ms at 48 kHz
0.188 ms at 88.2 kHz
0.177 ms at 96 kHz
Sync Sources Word Clock
Clocking Internal:
<nbsp;>
Audio Storage & Playback
Memory Card Slot None
Compatibility
OS Compatibility Windows
macOS
*As of February, 2023: Cheque with manufacturer for the most up-to-date compatibility
Included Software Cubase LE
Compatible Software (Not Included) Pro Tools
Logic
Nuendo
Cubase
Ableton Live
Supported Drivers/API & Plug-Ins macOS Class-Compliant (No Driver Needed)
Windows Class-Compliant (No Driver Needed)
Mobile App Compatible No
*As of February, 2023: Cheque with manufacturer for the most up-to-date compatibility
Mobile Device Compatibility None
Required Hardware USB-C Port
Internet Connection Required for Software/Driver Download
Power
Power Requirements USB Bus Power
Physical
Anti-Theft Features Kensington Security Slot
Dimensions 7.8 x 5.3 x 2.6" / 198 x 134 x 66 mm

In The Box

  • Audient iD24 Desktop 10x14 USB-C Audio Interface
  • USB-C Cable
