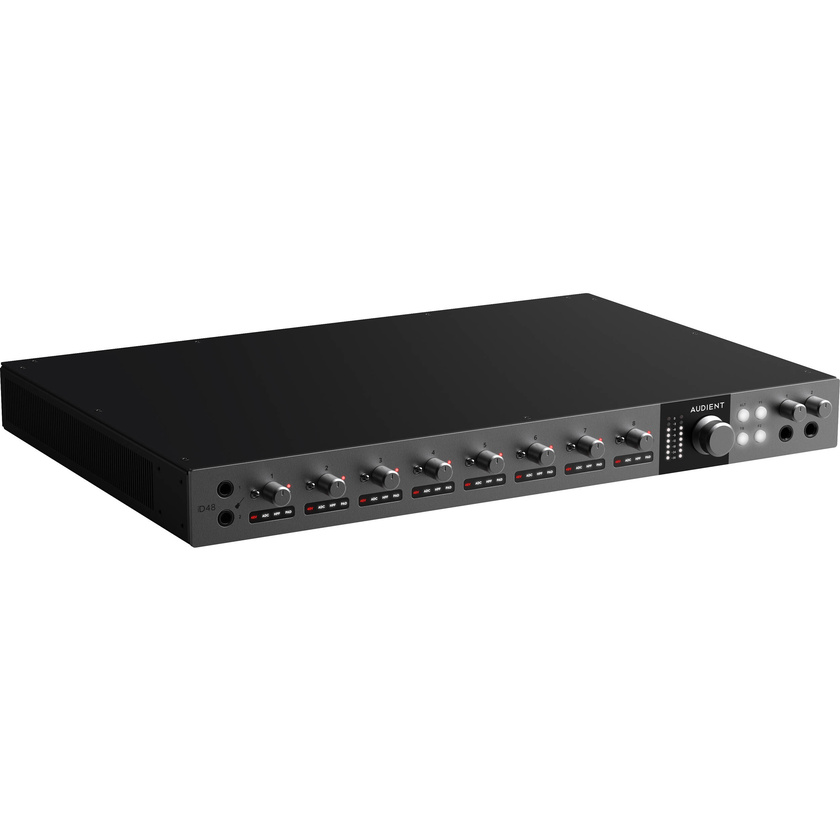

Audient iD48 24-In and 32-Out USB-C Audio Interface

Name: Audient iD48 24-In and 32-Out USB-C Audio Interface
Brand: Audient
SKU: 120310
Price: 1879.00 NZD
Availability: InStock

Product #120310 | SKU iD48 | Audient

| Write a review

In stock Ships Monday

Audient iD48 24-In and 32-Out USB-C Audio Interface

Our Price $1,879

In stock Ships Monday

this item may be nonreturnable

Request price match

Talk to our experts

Shipping & Availability

Ships Monday. Deliver to Auckland for $15 Change location

Click & Collect

Check availability

Features

Producers, Musicians, Engineers
External Power, Mac/Windows
8 Mic/Line Preamps, 2 Hi-Z Inputs
2 Headphone Outs, 24 Line/Monitor Outs
24-Bit / 96 kHz AD/DA Conversion
8 Switchable Balanced Inserts

Description Specifications In The Box

Description

Bigger, better and more powerful than ever, the Audient iD48 24-In and 32-Out USB-C Audio Interface is the flagship USB iD interface made for producers and engineers. Packing in eight Audient Console Mic Preamps, advanced 32-bit ESS converter technology and the all new Switchable Analogue Insert technology, iD48 seamlessly combines astonishing audio performance with ease of use. Add to that professional must have features like ADAT expandability and customisable monitor control, iD48 is ready to transform your studio.

Audio Performance

Sound better than ever with the Audient Console Mic Preamp. Delivering 68dB gain, ultra- low noise and low distortion with a touch of classic analogue warmth. iD48’s eight Audient Console Mic Preamp’s make sure you capture a clean, accurate and true to source translation of your audio.

Advanced 32-bit Converter Technology

Utilising 32-bit ESS DAC converter technology to minimise quality loss and maximise performance during conversion, iD48 makes sure your audio sounds cleaner, clearer and more precise than ever. And with 126.5dB of dynamic range, you will hear subtle details better and identify problematic issues faster – making getting release ready results easy.

Digital I/O - Expand and conquer

Make short work of the most demanding sessions and future proof your studio with iD48’s optical input and output connections. Supporting both ADAT and SPDIF, iD48 lets you boost your I/O by adding up to 16 channels of external mic preamps to your setup.

Switchable Analogue Inserts

Utilising Dsub connections, iD48 provides eight fully balanced inserts letting you integrate your favourite outboard FX prior to conversion – giving you the cleanest signal path possible. Perfect for stem mixing and print-backs.

Switch it up

And for the first time ever, iD48’s Switchable insert routing enables you to select which source is feeding the ADC path. Letting you choose whether to send the Audient Mic Preamp or a DAW output to your outboard on a per channel basis and all without having to plug or unplug cables.

Specifications


Channels of I/O	24 Inputs / 32 Outputs
Built-In DSP	Yes
Maximum Sampling Rate	96 kHz / 24-Bit
Number of Microphone Inputs	8
Built-In Microphone	No
Input Level Adjustment	8x Knob
Signal Processing
Pad	-10 dB (Switchable per Channel)
Gain/Trim Range	Combo XLR-1/4" Mic Inputs: 0 dB to +68 dB (with 10 dB Gain Boost) Combo XLR-1/4" Line Inputs: -10 dB to +58 dB (with 10 dB Gain Boost) DB-25 Line Inputs: -10 dB to +48 dB 1/4" Hi-Z Inputs: 0 dB to +68 dB (with 10 dB Gain Boost)
Connectivity
Analogue Audio I/O	8x Combo XLR-1/4" TRS Mic/Line Input 2x 1/4" TS Hi-Z Input 2x 1/4" TRS Headphone Output 4x 1/4" TRS Monitor Output
Phantom Power	48 V, Selectable On/Off
Digital Audio I/O	2x TOSLINK Optical ADAT / S/PDIF Input (S/MUX Support) 2x TOSLINK Optical ADAT / S/PDIF Output (S/MUX Support)
Host Connection	USB-C
Host Connection Protocol	USB 2.0
USB (Non-Host)	No
Sync I/O	1x BNC Word Clock Input 1x BNC Word Clock Output
Network I/O	No
MIDI I/O	No
Expansion Slots	No
Other I/O	1x DB-25 Breakout Cable Input (on Non-Included Breakout Cable) 1x DB-25 Breakout Cable Output (on Non-Included Breakout Cable)
Wireless	No
Performance
Frequency Response	A/D Convertors: 10 Hz to fs/2 ±0.5 dB D/A Convertors: 10 Hz to fs/2 ±0.5 dB Combo XLR-1/4" Mic Inputs: 10 Hz to 65 kHz ±0.5 dB 1/4" Hi-Z Inputs: 10 Hz to 40 kHz ±0.5 dB
Maximum Input Level	A/D Convertors: +18 dBu (0 dBFS Digital Maximum) Combo XLR-1/4" Mic Inputs: +18 dBu DB-25 Line Inputs: +22 dBu 1/4" Hi-Z Inputs: +15 dBu
Maximum Output Level	Headphone Outputs: +18 dBu (0 dBFS Digital Maximum) D/A Convertors: +18 dBu (0 dBFS Digital Maximum)
Headphone Output Power	530 mW into 30 Ohms 565 mW into 60 Ohms 126 mW into 600 Ohms
Impedance	A/D Convertors: > 10 Kilohms (Balanced) D/A Convertors: < 100 Ohms Combo XLR-1/4" Mic Inputs: 3 Kilohms (Balanced) Combo XLR-1/4" Line Inputs: 10 Kilohms (Balanced) 1/4" Hi-Z Inputs: 500 Kilohms (Unbalanced) 1/4" Headphone Outputs: < 50 Ohms (Unbalanced)
Dynamic Range	A/D Convertors: 120 dBA D/A Convertors: 126.5 dBA 124 dB
SNR	Combo XLR-1/4" Mic Inputs: 99 dBA 1/4" Hi-Z Inputs: 96 dBA
THD+N	Combo XLR-1/4" Mic Inputs: 0.0016% (at 0 dBu, 1 kHz) DB-25 Line Inputs: 0.0016% (at 0 dBu, 1 kHz) 1/4" Hi-Z Inputs: < 0.06% (at 0 dBu, 1 kHz) 1/4" Headphone Outputs: 0.00023% (at -1 dBFS, 1 kHz) A/D Convertors: < 0.0003% (at -1 dBFS, 1 kHz) D/A Convertors: < 0.00026% (at -1 dBFS, 1 kHz)
EIN	Combo XLR-1/4" Mic Inputs: -127 dBu
Digital Audio
Sample Rates	96 kHz
Sample Rate Conversion	No
Bit Depths	24-Bit (AD/DA Conversion) 32-Bit (Internal DSP)
Latency	0.344 ms at 44.1 kHz 0.312 ms at 48 kHz 0.188 ms at 88.2 kHz 0.177 ms at 96 kHz
Sync Sources	ADAT, Internal, S/PDIF, Word Clock
Clocking	Word Clock: Input Termination: 75 Ohms Lock Range: 44.1 to 96 kHz
Audio Storage & Playback
Media/Memory Card Slot	No
Compatibility
OS Compatibility	macOS 10.13 or Later / Windows 10 or Later
Mobile Device Compatibility	No
Power
Power Requirements	AC Input
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	75 W
Physical
Rackmount Size	1 RU (with Included Hardware)
Dimensions	17.2 x 12.9 x 2" / 437 x 327 x 50 mm
