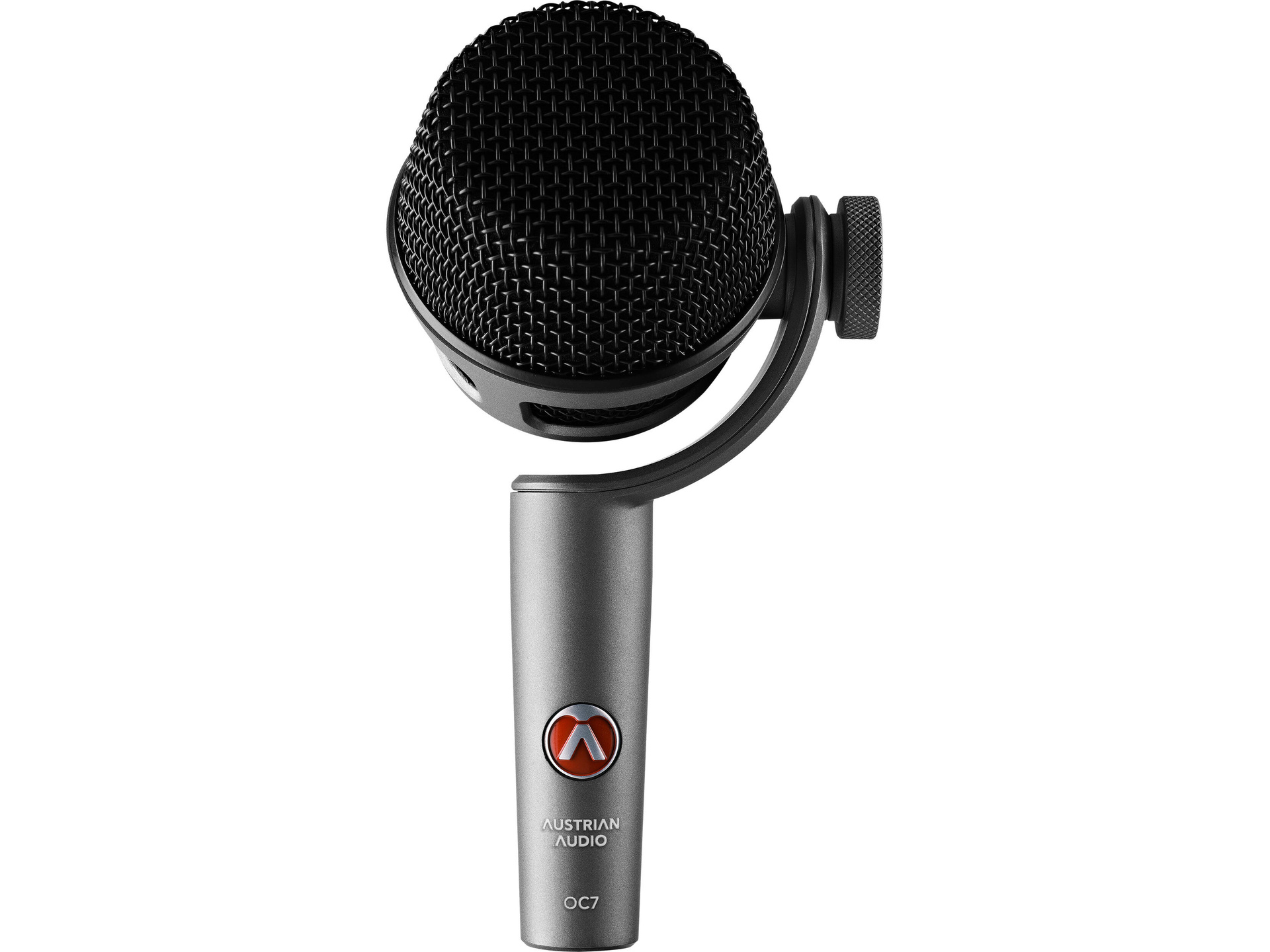

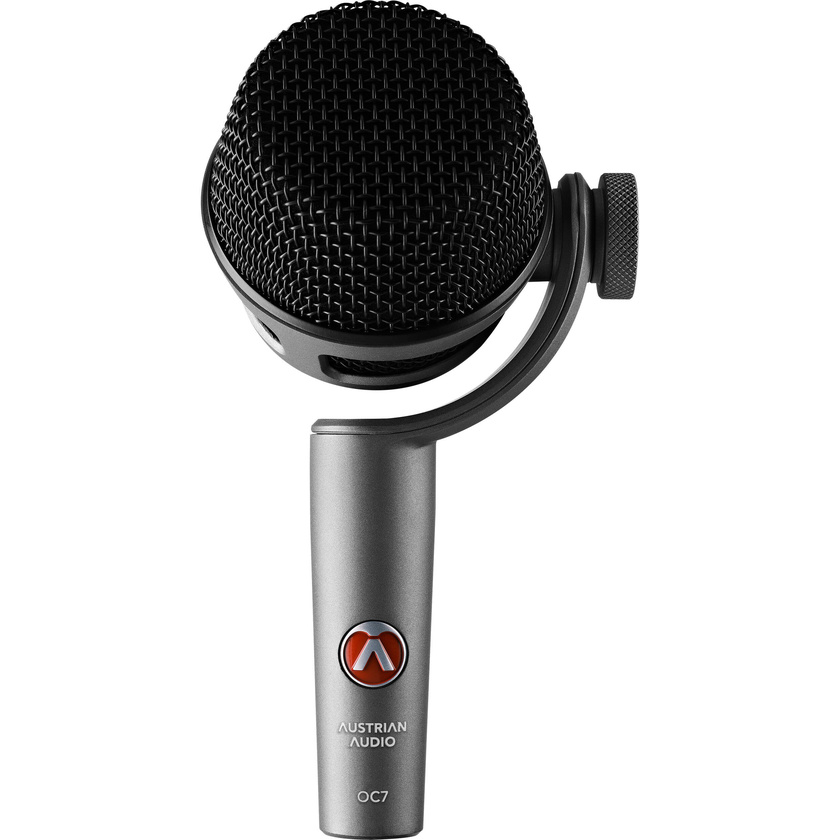

Austrian Audio OC7 Cardioid True Condenser Small-Diaphragm Instrument Microphone

Product #112908 | SKU OC-7 | Austrian Audio
In stock Ships today
Our Price $669
In stock Ships today
- +

this item may be nonreturnable
Shipping & Availability
Ships today. Deliver to Auckland for $7.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 4 working days
Click & Collect

Features

  • For Instruments / Studio and Live Stage
  • Small-Diaphragm Capsule, 48V Phantom
  • Cardioid Polar Pattern
  • 220° Swivel-Joint Mechanism
  • 154 dB Maximum SPL
  • Selectable 10 dB Pad

Description

The Austrian Audio OC7 is a true condenser microphone with the popular OC sound, which is specially optimised for use on instruments.

Handmade in Vienna, Austria, each OC7 undergoes rigorous quality control before it is shipped. The heart of the new microphone is the OCC7 small diaphragm capsule, also handmade in Vienna. In-house development and manufacturing results in perfect tuning for the respective recording application.

The most striking feature is the “Swivel Joint” mechanism. To simplify the positioning of the instrument microphone, Austrian Audio’s engineers have developed a suspension of the microphone basket that allows a 220° rotation in the field. This allows the microphone to be precisely aligned to the sound source or according to personal sound preferences without having to awkwardly adjust or loosen the microphone stand.

The open and transparent sound makes the OC7 a very flexible instrument microphone. It is ideally-suited for use on all instruments that have particularly lively transients, including all kinds of percussion instruments including snare drums and toms, piano, acoustic guitar but also string instruments.

Specifications

Key Specs
Form Factor Stand/Boom Mount
Element Type Condenser
Polar Pattern Cardioid
On-Board Controls Pad
Frequency Range 20 Hz to 20 kHz
Maximum SPL 154 dB SPL
164 dB SPL (with Pad)
Analogue Output 1x XLR 3-Pin Male (on Mic)
Power Sources Phantom Power
Microphone
Primary Applications Live Sound, Studio Recording
Form Factor Stand/Boom Mount
Intended Sound Sources Acoustic Guitar, Piano, Drums, Percussion, Toms, Instruments, Strings
Sound Field Mono
Element Type Condenser
Polar Pattern Cardioid
Orientation End Address
Circuitry Solid-State
Pad -10 dB
High-Pass Filter 40 Hz
80 Hz
On-Board Controls Pad
Performance
Frequency Range 20 Hz to 20 kHz
Maximum SPL 154 dB SPL
164 dB SPL (with Pad)
Impedance 275 Ohms
Load Impedance > 1 Kilohms
Sensitivity 10 mV/Pa
Equivalent Noise Level 19 dB SPL A-Weighted
Connectivity
Analogue Output 1x XLR 3-Pin Male (on Mic)
Power
Power Sources Phantom Power
Operating Voltage V ()

In The Box

  • Austrian Audio OC7 Cardioid True Condenser Small-Diaphragm Instrument Microphone
  • Austrian Audio OCH8 Microphone Clip for OC818 or OC18 Microphone
  • MSC2 Case
