Austrian Audio OC818 Dual Set Plus Large-Diaphragm Multipattern Condenser Microphone (Pair, Black)

Product #117610 | SKU OC818DUALSETBLACK | Austrian Audio
In stock Ships tomorrow
Our Price $3,529
In stock Ships tomorrow
- +

this item may be nonreturnable
Shipping & Availability
Ships tomorrow. Deliver to Auckland for $21 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 4 working days
Click & Collect

Features

  • Matched Pair of Mics for Stereo Setups
  • 5-Position Polar Pattern Switch
  • Handmade Dual-Diaphragm Capsule
  • Per-Diaphragm Output Connectors
  • Selectable Pad at -10 or -20 dB
  • Selectable 40/80/160 Hz High-Pass Filter

Description

Designed by a team of former AKG personnel, the Austrian Audio OC818 Dual Set Plus Large-Diaphragm Multipattern Condenser Microphone offers a wide range of features and capabilities for capturing detailed and customisable audio. These large-diaphragm studio condenser microphones are perfect for stereo miking solo instruments, drum kits, and ensembles. The 1" ceramic capsule is handmade and features two gold-plated polymer membranes, allowing for multiple polar patterns. With a 5-position switch, you can easily choose between figure-8, hypercardioid, cardioid, omnidirectional, or wide cardioid patterns.

The OC818 also boasts dual-channel recording, with each diaphragm routed to a separate output connector. This allows you to create custom polar pattern responses across five frequency bands using the open-source PolarDesigner plug-in. Additionally, the StereoCreator plug-in enables you to achieve a tweakable stereo image. Alternatively, you can connect the secondary output to the optional OCR8 Bluetooth module for wireless control and selection of 255 polar patterns via the PolarPilot app.

Convenience is key with the OC818. Front-panel switches provide easy access to pad and roll-off settings. The pad can be set to -10 or -20 dB to prevent distortion when miking loud sources. The high-pass filter, available at 40, 80, or 160 Hz, effectively attenuates low-frequency issues like rumble and proximity effect. The microphone's housing is constructed of zinc-aluminium alloy, ensuring strength and durability.

The OC818 Dual Set Plus includes everything you need for professional recording. It comes with two shockmounts, two mic clips, a stereo bar, two mini 5-pin XLR to 3-pin XLR cables, two windscreens for noise mitigation, and a protective carry case for easy transport and storage. Get the most out of your recording sessions with the Austrian Audio OC818 Dual Set Plus.

Specifications

Key Specs
Microphone Type Large Diaphragm / Stand/Boom Mount
Element Type Condenser
Polar Pattern Cardioid / Figure-8 / Hypercardioid / Omnidirectional / Subcardioid/Wide Cardioid
On-Board Controls High-Pass Filter, Pad, Polar Pattern
Frequency Range 20 Hz to 20 kHz
Maximum SPL 148 dB SPL
Analogue Output 1x XLR 3-Pin Male (on Mic)
1x TB5M 5-Pin Male (on Mic)
Power Sources Phantom Power
Microphone
Primary Applications Live Sound, Studio Recording
Microphone Type Large Diaphragm / Stand/Boom Mount
Intended Sound Sources Vocals, Instruments
Sound Field Mono
Element Type Condenser
Diaphragm 1" / 25.40 mm
Polar Pattern Cardioid / Figure-8 / Hypercardioid / Omnidirectional / Subcardioid/Wide Cardioid
Pattern Selection Switched (Adjustable on Mic)
Orientation Side Address
Circuitry Solid-State
Pad -10 dB
-20 dB
High-Pass Filter 40 Hz, 12 dB/Octave
80 Hz, 12 dB/Octave
160 Hz, 6 dB/Octave
Gain Adjustment No
On-Board Controls High-Pass Filter, Pad, Polar Pattern
Performance
Frequency Range 20 Hz to 20 kHz
Maximum SPL 148 dB SPL
Sensitivity 13 mV/Pa
Equivalent Noise Level 9 dB SPL A-Weighted
Connectivity
Analogue Output 1x XLR 3-Pin Male (on Mic)
1x TB5M 5-Pin Male (on Mic)
Power
Power Sources Phantom Power
Operating Voltage Not Specified by Manufacturer
Physical
Colour Black
Mounting Thread Size 5/8"-27 Female (3/8"-16 Female with Included Adapter)
Environmental Resistance No
Dimensions H: 1.4 x W: 2.5 x L: 6.2" / H: 3.5 x W: 6.3 x L: 15.7 cm
Weight 12.7 oz / 360 g

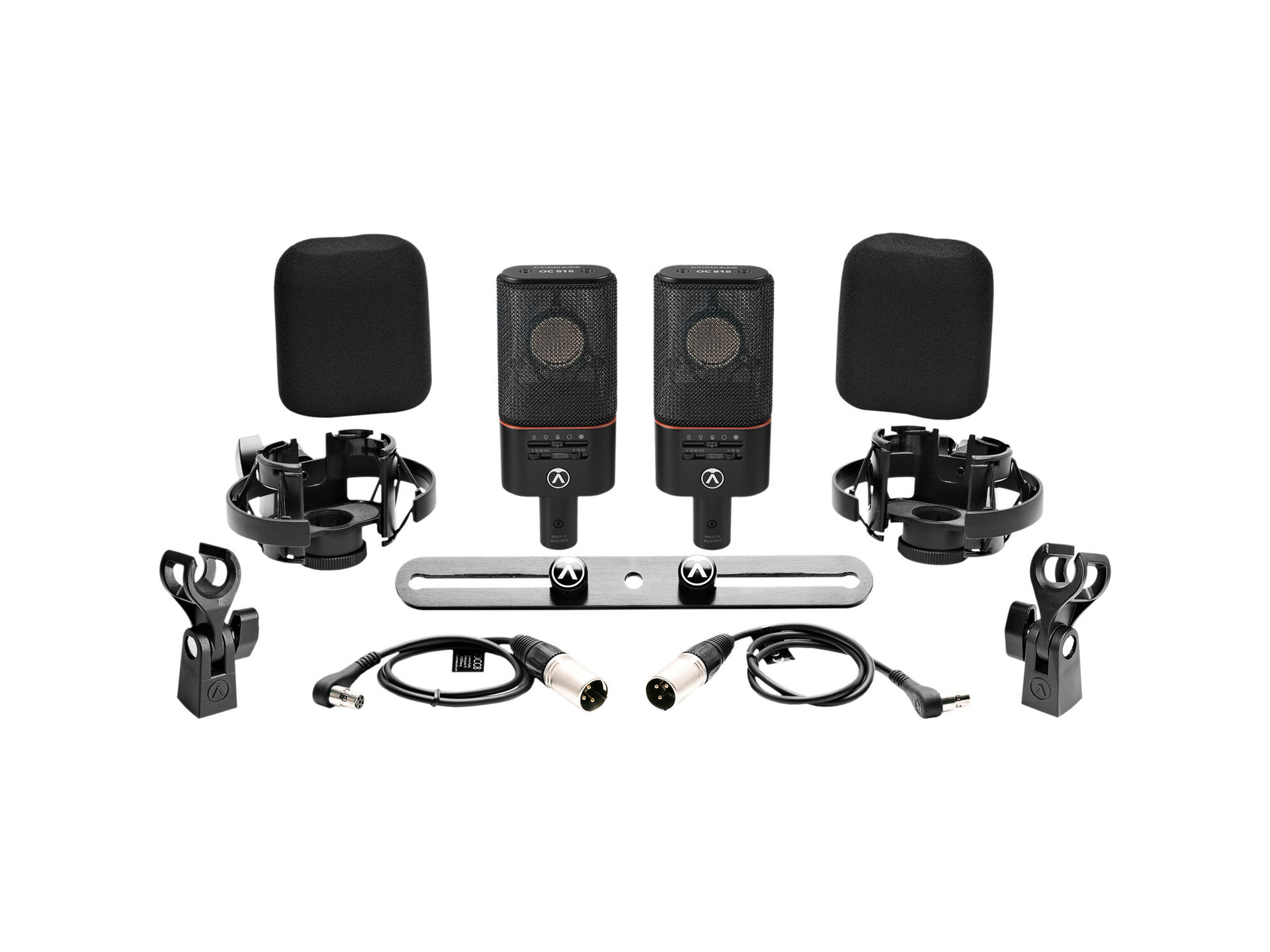

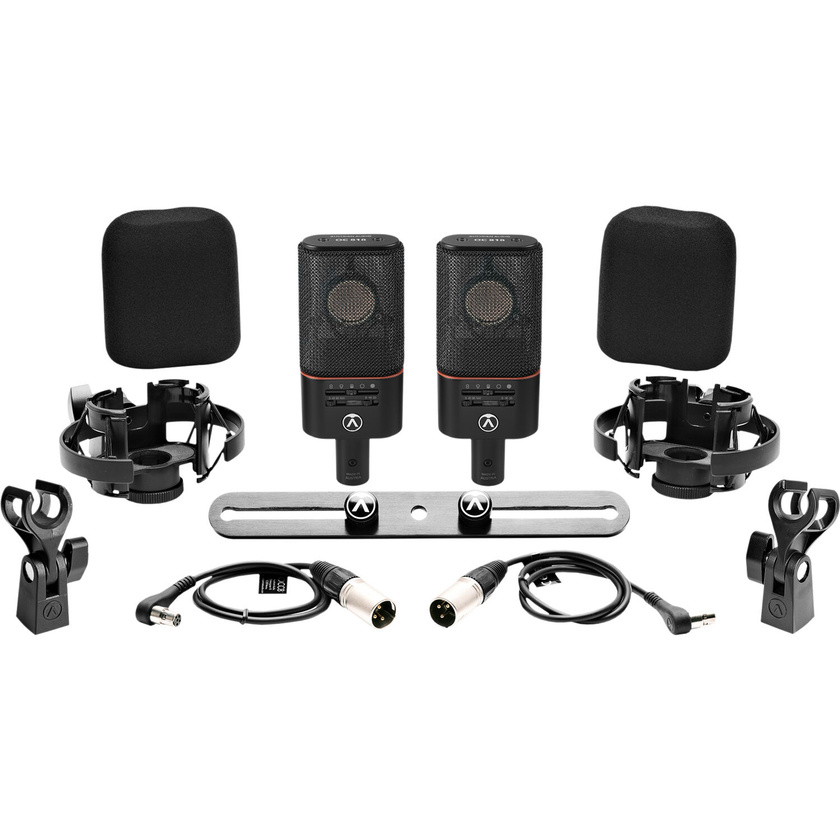

In The Box

  • Austrian Audio OC818 Dual Set Plus Large-Diaphragm Multipattern Condenser Microphone (Matched Pair, Black)
  • Austrian Audio OCS8 Shockmount for OC818 or OC18 Microphone
  • Austrian Audio OCH8 Microphone Clip for OC818 or OC18 Microphone
  • Austrian Audio Foam Windshield for OC818 and OC18
  • Austrian Audio Mini XLR Cable for OC818, with Clip
  • Stereo Bar
  • Protective Carry Case
