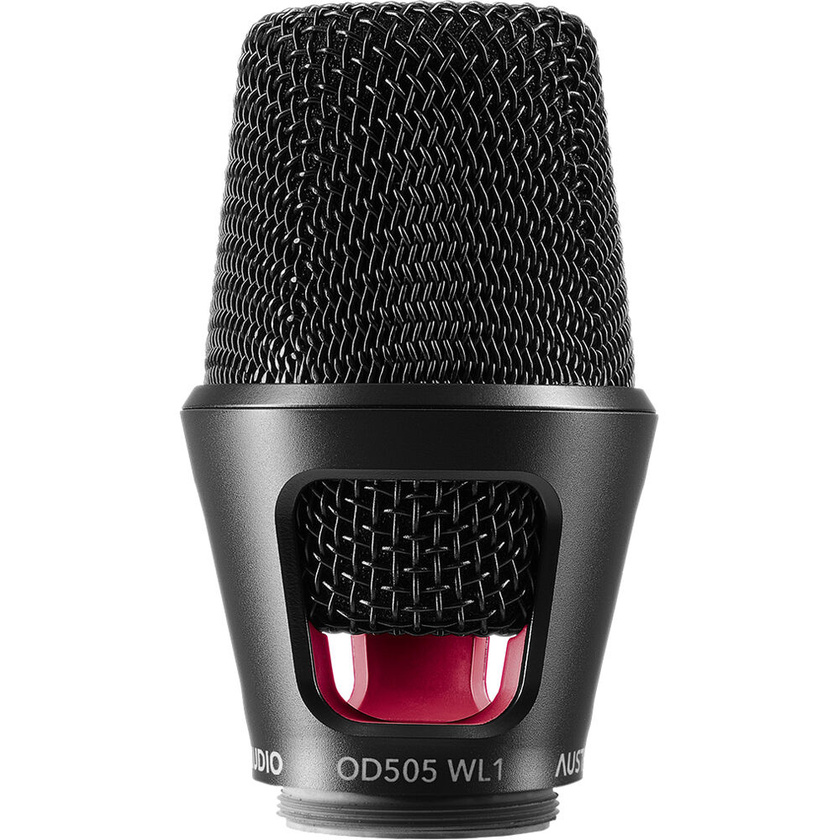

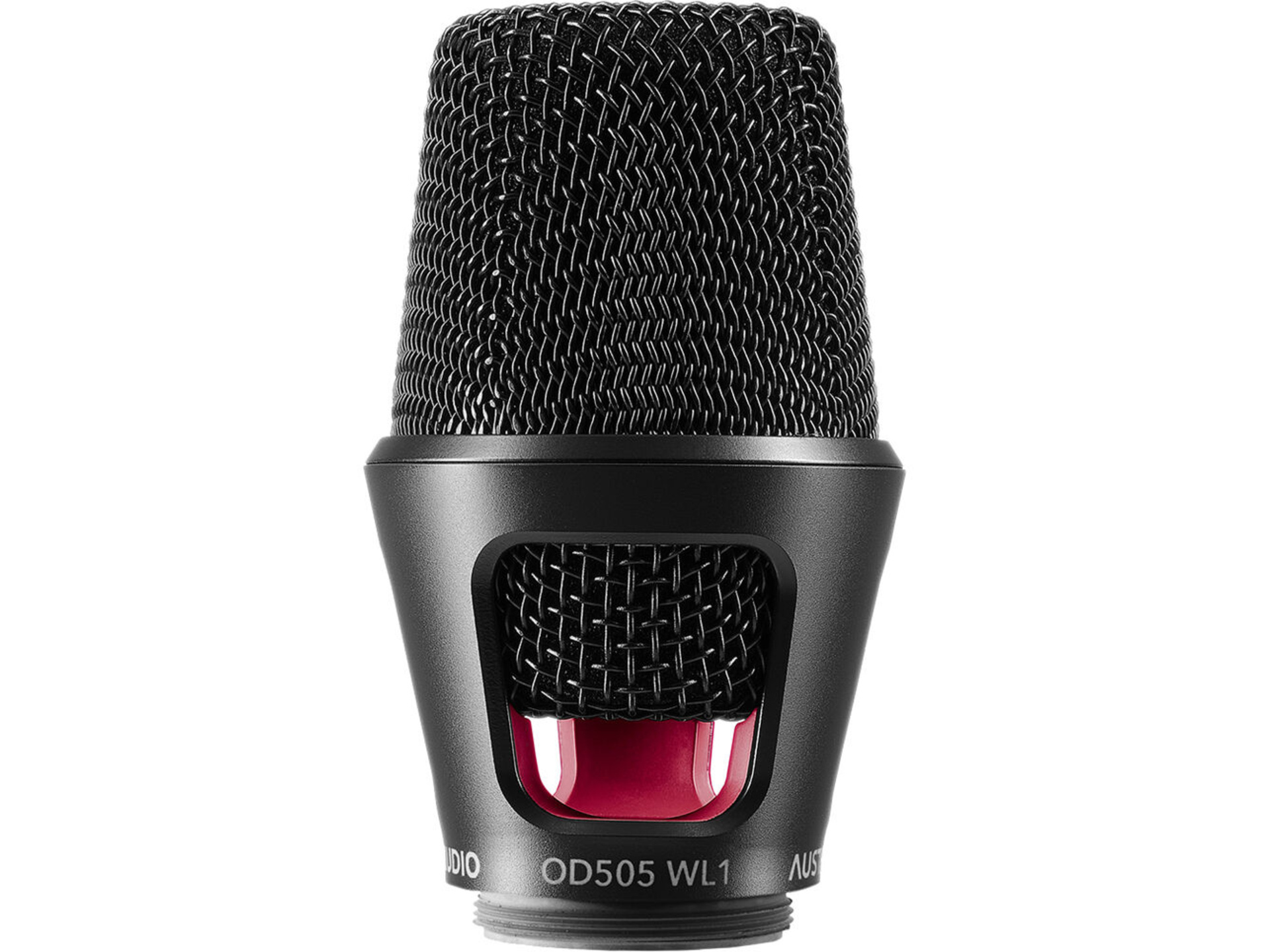

Austrian Audio OD505 WL1 Supercardioid Active-Dynamic Wireless-Microphone Capsule

Product #115083 | SKU OD505WL1 | Austrian Audio
In stock Ships tomorrow
Our Price $419
In stock Ships tomorrow
- +

this item may be nonreturnable
Shipping & Availability
Ships tomorrow. Deliver to Auckland for $8.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 4 working days
Click & Collect

Features

  • Wireless Version of OD505 Handheld Mic
  • For Shure/Sony/Lectrosonics Transmitters
  • Supercardioid Polar Pattern
  • Active-Dynamic Capsule
  • 3D Pop-Noise Diffuser
  • Metal Housing, Mesh Grille

Description

Introducing the Austrian Audio OD505 WL1 Supercardioid Active-Dynamic Wireless-Microphone Capsule, an active-dynamic wired handheld vocal microphone capsule that can be integrated into your wireless system. Compatible with Shure, Sony, and Lectrosonics handheld transmitters, this mic capsule brings the open, consistent, and authentic sound of the OD505 to your setup. It is specifically designed to enhance lead and background voices without requiring extensive adjustments from FOH engineers, technicians, or artists.

Featuring a supercardioid polar pattern, the OD505 WL1 utilizes the innovative Open Acoustic technology developed by Austrian Audio. This ensures that your voice is prominently and accurately captured in the mix. The proximity effect is carefully optimized to preserve the tonal openness of your voice, regardless of the distance from the microphone or changes in microphone technique. Each OD505 WL1 capsule is meticulously hand-built in Vienna and meticulously measured and tuned in the in-house anechoic chamber.

Specifications

Compatible Transmitters Shure: Axient, PG, PGX, PGX2, QLXD, SLX, SLX2, ULX, ULX2, ULXD
Sony: DWM-02, UTX-M03, ZTX-M01
Lectrosonics: HHa
Element Type Active Dynamic
Polar Pattern Supercardioid
Performance
Frequency Range 35 Hz to 16 kHz
Maximum SPL 150 dB SPL
Sensitivity 4.4 mV/Pa
Power
Operating Voltage 5 to 10 V
Operating Current Consumption 1 mA
Physical
Dimensions H: 3.6 x W: 2" / H: 92 x W: 52 mm
Weight 6.9 oz / 195 g

In The Box

  • Austrian Audio OD505 WL1 Supercardioid Active-Dynamic Wireless-Microphone Capsule for Shure/Sony/Lectrosonics Handheld Transmitters
  • Pouch

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Austrian Audio OD505 WL1 Supercardioid Active-Dynamic Wireless-Microphone Capsule
  • Manufacturer: Austrian Audio
  • Model: OD505WL1
  • SKU: OD505WL1
  • RM Product #: 115083
