Behringer 1016 Dual Noise Random Volt Generator Module

Product #106373 | SKU 1016DUALNOISERANDOMVOLTGENMODU | Behringer
Contact us for an ETA what does this mean?
Our Price $139.00
Contact us for an ETA what does this mean?
This product can't be purchased at this time, please contact us for more information.
- +

Email me when stock arrives


Features

  • Modular Synthesis
  • Eurorack Ready
  • Classic white/pink/random noise source

Description

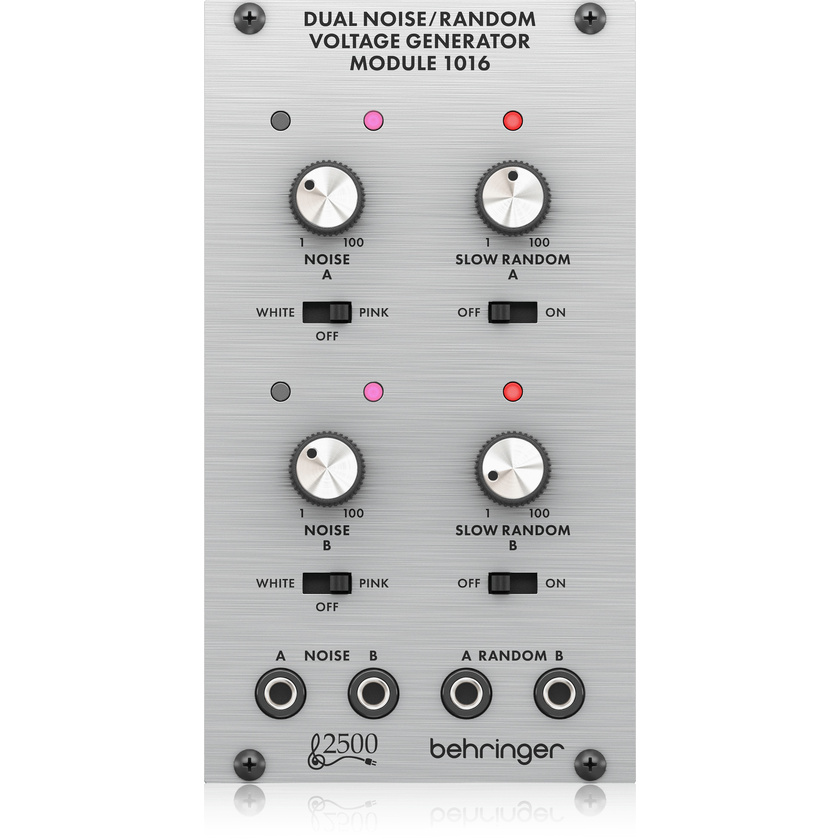

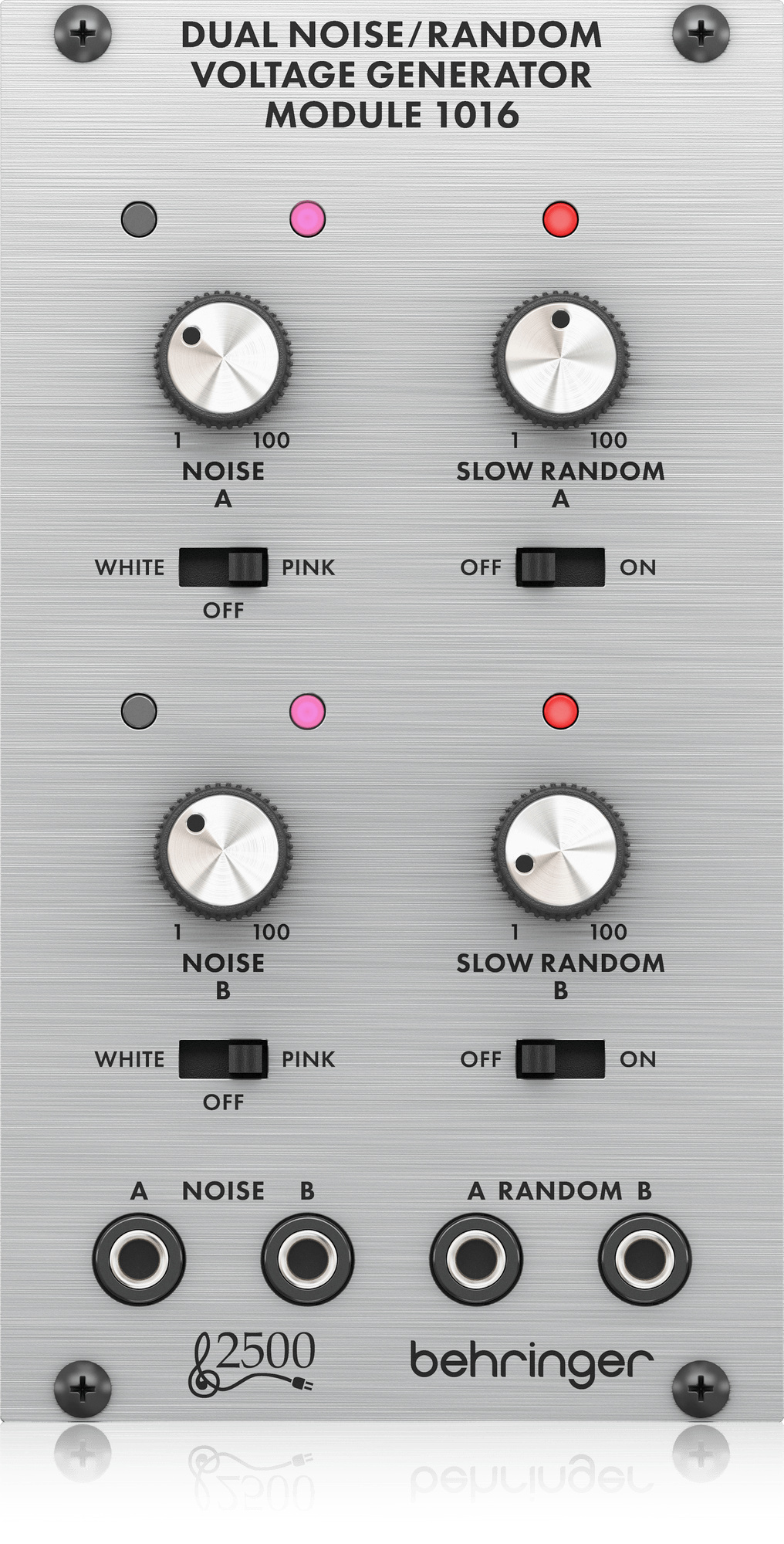

This is the Behringer 1016 Dual Noise Random Volt Gen Module. An authentic reproduction of the original “System 2500” circuitry from the 70’s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the DUAL NOISE/RANDOM VOLTAGE MODULE 1016 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.

The DUAL NOISE/RANDOM VOLTAGE MODULE 1016 is a classic discrete transistor white/pink/random noise source with independent attenuators for the white/pink noise level, a white /pink selector switch with color coded LED’s. The slow random voltage generator produces random CV voltages and the maximum level can be controlled via the attenuators as well as an on/off switch with LED indicators for each channel. The 2 channels are completely independent of each other for even more creative possibilities.

Ins and Outs

The 1016 gives you comprehensive connectivity, each channel has a separate white/pink noise output and separate outputs for the random voltages, the outputs are all available simultaneously to feed multiple noise and CV signals to other modules.

Eurorack Ready

Installing the DUAL NOISE/RANDOM VOLTAGE MODULE 1016 is easy as it is designed to fit into a standard Eurorack case. Just connect the power cable to the power supply and screw in the module using the included screws. This allows for the 1016 to be mixed with other synth modules for a truly unique set up.

Complete Your Setup

Whether you’re just getting into modular synths or looking to complete your collection, the DUAL NOISE/RANDOM VOLTAGE MODULE 1016 from Behringer is a great tool to have when creating amazing music.

Specifications

Outputs
Noise
Type 2 x 3.5 mm TS jacks, DC coupled
Impedance 1 kΩ, unbalanced
Max output level ±5 V
Random
Type 2 x 3.5 mm TS jacks, DC coupled
Impedance 1 kΩ, unbalanced
Max output level ±5 V
Controls
Noise Attenuates noise generator output
Random Attenuates voltage output
White/pink/of Selects white or pink noise, or of
Random on/of Engages or disengages voltage generator
Power
Power supply Eurorack
Current draw 45 mA (+12 V), 15 mA (-12 V)
Physical
Dimensions 42 x 71 x 129mm (1.7 x 2.8 x 5.1")
Rack units 14 HP
Weight 0.13kg

In The Box

  • Behringer 1016 Dual Noise Random Volt Gen Module
