The Behringer BM-15M Resonance Filter Array Pedal is the ultimate filtering machine designed to bring motion, groove and life to your sound. With 8 filters, selectable patterns, MIDI control and expressive modulation options, BM-15M is a gateway to an entirely new world of sound whether you’re a guitarist looking for dynamic tonal animation, a synth player seeking evolving textures.

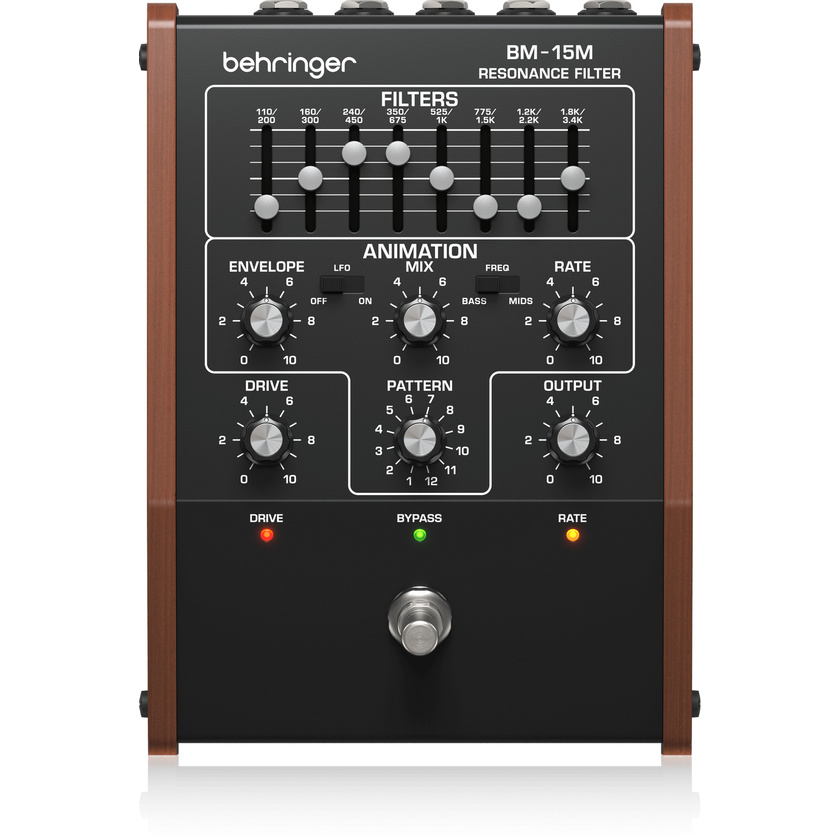

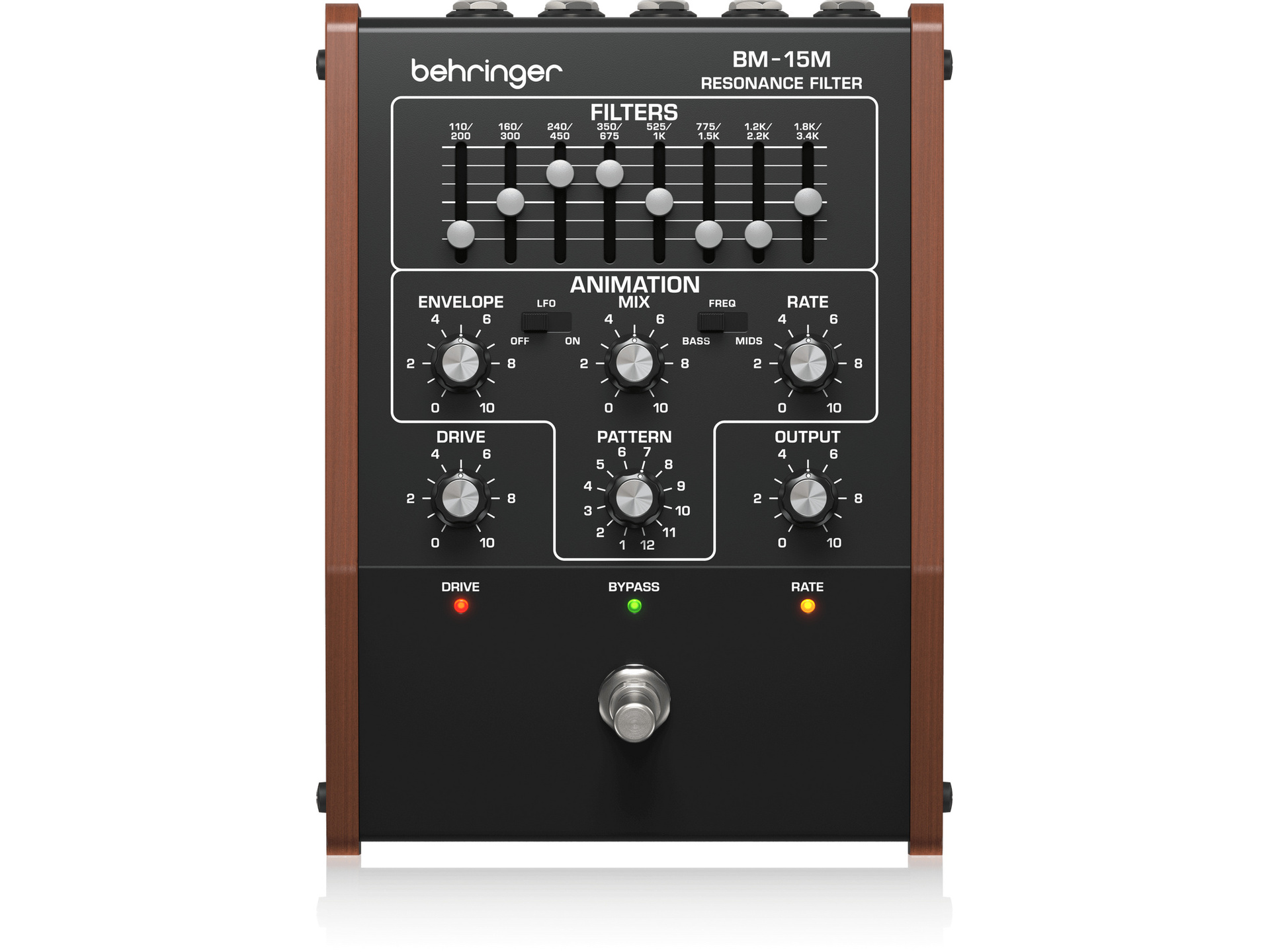

Behringer BM-15M Resonance Filter Array Pedal
On Backorder ETA to be confirmed
Our Price
$319
On Backorder ETA to be confirmed
Email me when stock arrives
Shipping & Availability
ETA to be confirmed.
Deliver to
Auckland
for $12
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
ETA to be confirmed
Click & Collect
Features
- 12 dynamic patterns
- 8 filters
- MIDI integration
- Sync to DAW or drum machine
Description
Specifications
| Audio Connections | |
| Audio in | |
| Connector | 1 x 1/4" TS, unbalanced |
| Impedance | 238 kΩ |
| Left / mono out | |
| Connector | 1 x 1/4" TS, unbalanced |
| Output impedance | 1 kΩ |
| Right out | |
| Connector | 1 x 1/4" TS, unbalanced |
| Output impedance | 1 kΩ |
| Tap / step | |
| Connector | 1 x 1/4" TRS, balanced |
| Input impedance | 48 kΩ |
| Control Connections | |
| Rate | |
| Connector | 1 x 1/4" TRS |
| Impedance | 22 kΩ, unbalanced |
| CV input range | 0 V to +5 V |
| Mix | |
| Connector | 1 x 1/4" TRS |
| Impedance | 22 kΩ, unbalanced |
| CV input range | 0 V to +5 V |
| Envelope | |
| Connector | 1 x 1/4" TRS |
| Impedance | 22 kΩ, unbalanced |
| CV input range | 0 V to +5 V |
| LFO / sweep | |
| Connector | 1 x 1/4" TRS |
| Impedance | 22 kΩ, unbalanced |
| CV input range | 0 V to +5 V |
| MIDI in | 2 x 5-pin DIN, 16 channels |
| USB | 1 x USB, type C |
| Controls | |
| Filter | 8 x sliders |
| Drive | 1x rotary knob |
| Output | 1 x rotary knob |
| Envelope | 1x rotary knob |
| LFO (off / on) | 1 x sliding switch |
| Mix | 1 x rotary knob |
| Freq (bass / mids) | 1 x sliding switch |
| Rate | 1 x rotary knob |
| Pattern | 1 x rotary knob |
| Bypass | 1 x footswitch |
| System | |
| Frequency response | 20 Hz to 20 kHz (+0 / -2 dB) |
| Dynamic range | > 66 dB |
| Signal-to-noise ratio | > 56 dB |
| Overall gain | +16.5 dB |
| Power Supply / Voltage | |
| Power input | Standard 9 V DC, centre negative, > 400 mA (power supply not included) |
| Power consumption | 1.8 W |
| Dimensions / Weight | |
| Dimensions (H x W x D) | 85.9 x 147.6 x 196.9 mm (3.38 x 5.81 x 7.75") |
| Weight | 1,108 g (39.1 oz) |
In The Box
- Behringer BM-15M Resonance Filter Array Pedal
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Behringer BM-15M Resonance Filter Array Pedal
- Manufacturer: Behringer
- Model: BM-15M
- SKU: BM-15M
- RM Product #: 122253
- Warranty: 1 year manufacturer warranty view terms
