The Behringer BRAINS is an amazingly versatile digital sound source for creating percussion sounds, leads and basses, as well as drones and soundscapes. With 20 digital oscillator modes, including many different control engines, you’ve got a wealth of different sounds and timbres to create some wild and out-of-this-world patches using chords, harmonic oscillation, particle noise, analog bass drum, snare, hi hat and even speech.

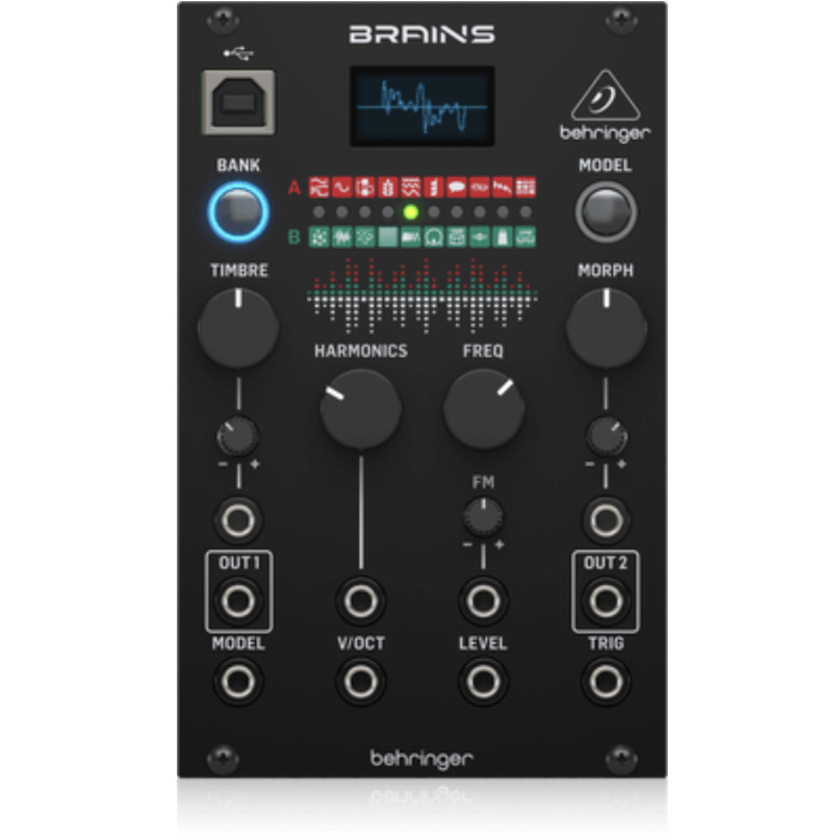

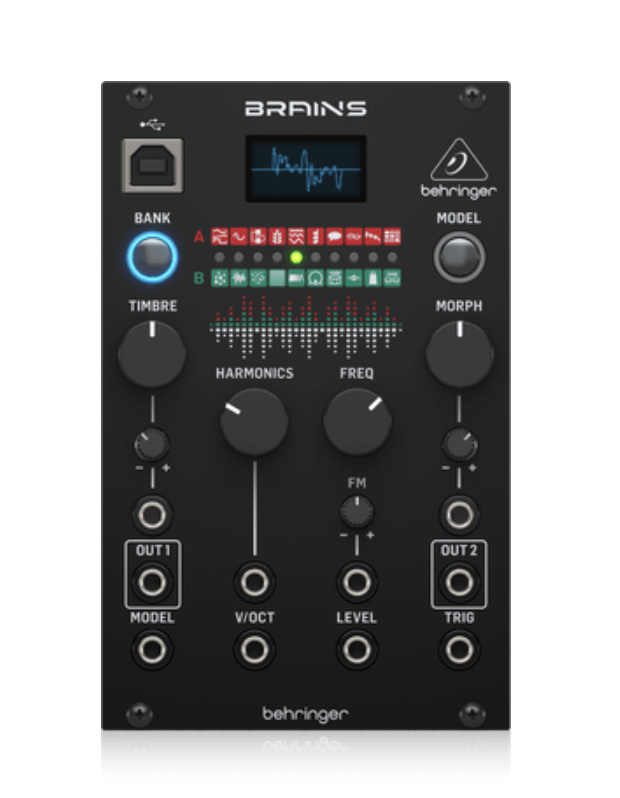

Behringer BRAINS Oscillator Module for Eurorack
In Stock with Supplier Usually ships in 3 - 5 working days
Our Price
$279
In Stock with Supplier Usually ships in 3 - 5 working days
Email me when stock arrives
Shipping & Availability
Usually ships in 3 - 5 working days.
Deliver to
Auckland
for $5.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
3 - 5 working days
Click & Collect
Features
- Amazing sound powerhouse for anything from percussion, leads and basses to drums
- 20 digital oscillators including 15 Mutable Instruments Plaits* engines
- High-resolution 96 kHz synthesis for unsurpassed sound quality
- Inspiring OLED oscilloscope for waveform visualisation
- Synthesis models designed for pitched sounds like ripping leads and lush chords
- 10 synth engines
Description
Specifications
Inputs
Timber CV input
| Type | 3.5 mm TS jack, DC to 2 kHz |
| Impedance | 50 kΩ |
| Max input level | ±8 V |
Harmonics CV input
| Type | 3.5 mm TS jack, DC to 2 kHz |
| Impedance | 100 kΩ |
| Max input level | ±5 V |
Freq CV input
| Type | 3.5 mm TS jack, DC to 2 kHz |
| Impedance | 50 kΩ |
| Max input level | ±8 V |
Morph CV input
| Type | 3.5 mm TS jack, DC to 2 kHz |
| Impedance | 50 kΩ |
| Max input level | ±8 V |
Model CV input
| Type | 3.5 mm TS jack, DC to 2 kHz |
| Impedance | 100 kΩ |
| Max input level | ±5 V |
V/oct input
| Type | 3.5 mm TS jack, DC to 2 kHz |
| Impedance | 100 kΩ |
| Max input level | -3 to +7 V |
Level input
Type | 3.5 mm TS jack, DC to 2 kHz Impedance | 50 kΩ Max input level | 0 to +8 V
Trig input
| Type | 3.5 mm TS jack, DC to 2 kHz |
| Impedance | 50 kΩ |
| Max input level | 0 to +8 V |
Outputs
Out 1
| Type | 3.5 mm TS jack, DC coupled |
| Impedance | 1 kΩ |
| Max output level | 6.2 V |
Out 2
| Type | 3.5 mm TS jack, DC coupled |
| Impedance | 1 kΩ |
| Max output level | 6.2 V |
Controls
| Timbre | Darker or brighter content |
| Harmonics | Frequency spread or tonal balance |
| Freq | Frequency adjustment |
| Morph | Panning or character |
| Bank | Toggles band A and B |
| Model | Scrolls through models in active bank |
Digital Processing
A/D converter
| Resolution | 16 bit |
D/A converter
| Resolution | 16 bit |
| Sampling rate | 96 kHz |
| Internal processing | 32-bit floating point |
USB
| Type | USB 2.0, type B |
Power
| Power supply | Eurorack |
| Current draw | 130 mA (+12 V), 10 mA (-12 V) |
Physical
| Dimensions | 129 x 81 x 45 mm |
| Rack units | 16 HP |
| Weight | 0.16 kg |
In The Box
- Behringer BRAINS Oscillator Module for Eurorack
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Behringer BRAINS Oscillator Module for Eurorack
- Manufacturer: Behringer
- Model: BRAINS
- SKU: BRAINS
- RM Product #: 94240
- Warranty: 1 year manufacturer warranty view terms
