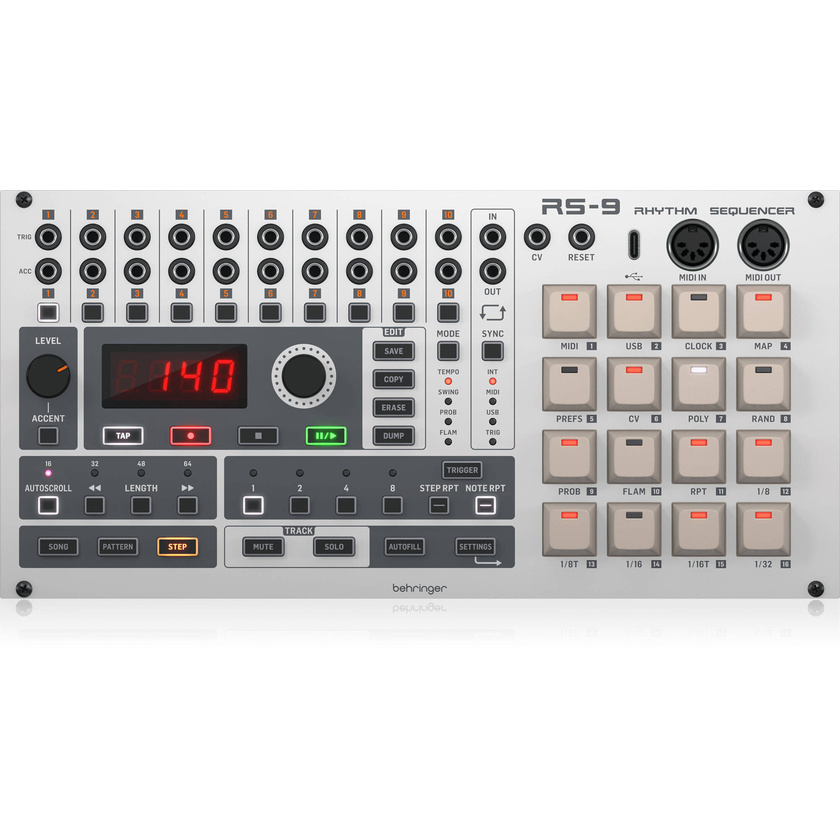

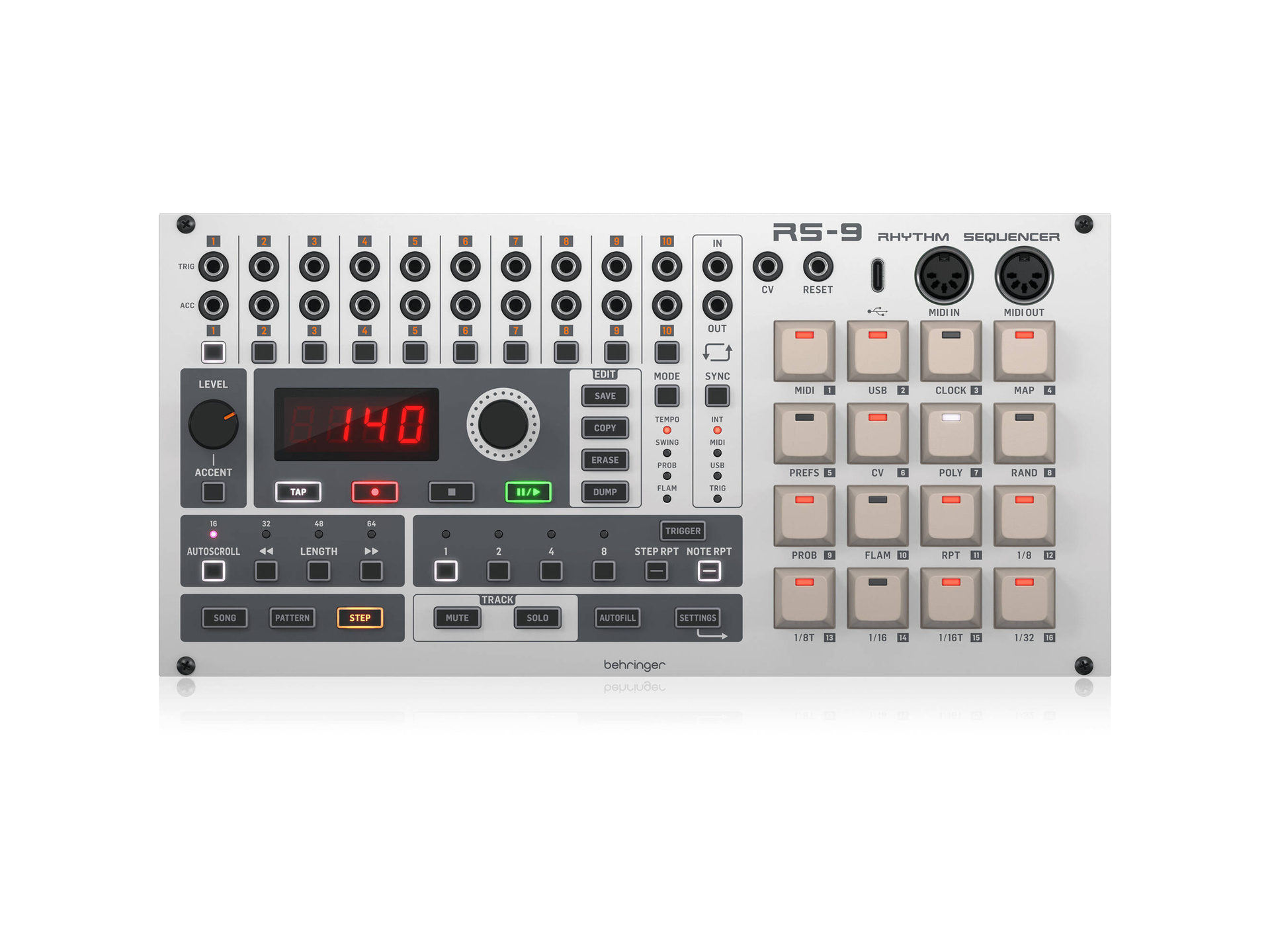

Behringer RS-9 Rhythm Sequencer Eurorack Module (52 HP)

Product #119519 | SKU RS9 | Behringer
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
Our Price $299
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 5 working days. Deliver to Auckland for $12 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 1 - 2 weeks
Click & Collect

Features

  • 64-Step Sequencer + 10 Drum Channels
  • Based on Sequencer from RD-9
  • 10 Triggers, 10 Accent, 1 CV Output
  • Polymeter, Step-Repeat, Note-Repeat
  • Real-Time Triggering, Track Mute & Solo
  • Rec, Edit, Playback CV Automation

Description

Create dynamic beats on the fly with the Behringer RS-9 Rhythm Sequencer Eurorack Module, a versatile rhythm sequencer module boasting a 64-step sequencer and 10 drum channels. Modelled after the RD-9 sequencer, this module is optimized for live performances. The ten drum channels offer trigger and accent outputs, ideal for interfacing with external sound modules.

In addition to supporting polymeter, step repeat, note repeat, real-time triggering, track mute, and track solo functions, the drum sequencer also allows for the recording, editing, and playback of CV automation. With the capability to import and export up to 16 songs and 256 patterns during playback, the RS-9 ensures endless possibilities for creating unique songs and patterns. For added convenience, this module comes complete with a power ribbon cable and mounting screws.

Specifications

Key Specs
Sound Generation Controller Only (No Internal Sounds)
Audio I/O No
MIDI I/O 1x DIN 5-Pin Input
1x DIN 5-Pin Output
CV/Gate I/O 1x 1/8" / 3.5 mm TS CV Output
10x 1/8" / 3.5 mm TS Trigger Output
10x 1/8" / 3.5 mm TS CV Output
1x 1/8" / 3.5 mm TS Gate Input
Patch Points 22x 1/8" / 3.5 mm Output
2x 1/8" / 3.5 mm Input
Eurorack Current Consumption 350 mA on +12 V Rail
20 mA on -12 V Rail
Horizontal Pitch 52 HP
General
Item Type Eurorack Module
Sound Generation Controller Only (No Internal Sounds)
Expression Controls No
Number of Pads No
Built-In Speaker No
Synthesis
Oscillators No
Mixer No
Amplifiers No
Envelopes No
Filters No
LFOs No
Sequencing & Recording
Sequencer Number of Steps: 64x Step
Number of Parts: 10
Number of Sequencer Patterns: 256x User
Motion Sequencing Yes
Arpeggiator No
Number of Recorder Tracks 10x Sequencer
Connectivity
Audio I/O No
MIDI I/O 1x DIN 5-Pin Input
1x DIN 5-Pin Output
CV/Gate I/O 1x 1/8" / 3.5 mm TS CV Output
10x 1/8" / 3.5 mm TS Trigger Output
10x 1/8" / 3.5 mm TS CV Output
1x 1/8" / 3.5 mm TS Gate Input
Control Voltage Level ±10 V
Patch Points 22x 1/8" / 3.5 mm Output
2x 1/8" / 3.5 mm Input
Sync I/O 1x 1/8" / 3.5 mm TS Clock Input
1x 1/8" / 3.5 mm TS Clock Output
Power
Power Requirements Eurorack Power
Eurorack Current Consumption 350 mA on +12 V Rail
20 mA on -12 V Rail
Physical
Horizontal Pitch 52 HP
Included Accessories No
Operating Conditions No
Dimensions 10.4 x 5 x 1.6" / 264.2 x 127 x 40.6 mm
Weight 1.1 lb / 0.5 kg

In The Box

  • Behringer RS-9 Rhythm Sequencer Eurorack Module (52 HP)
  • Eurorack Power Cable
  • Mounting Screws
