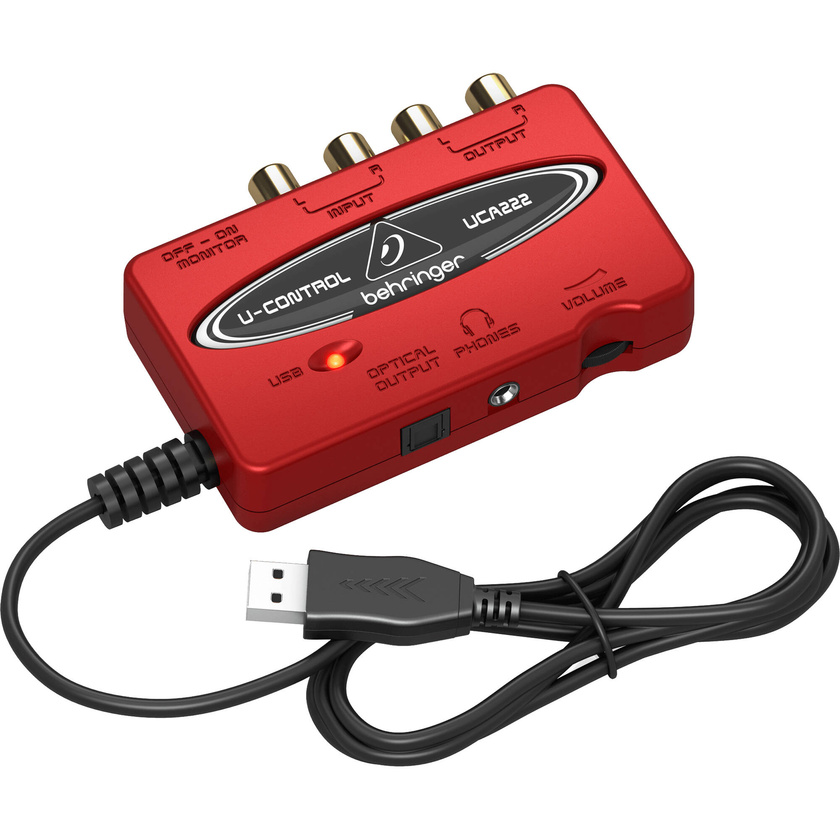

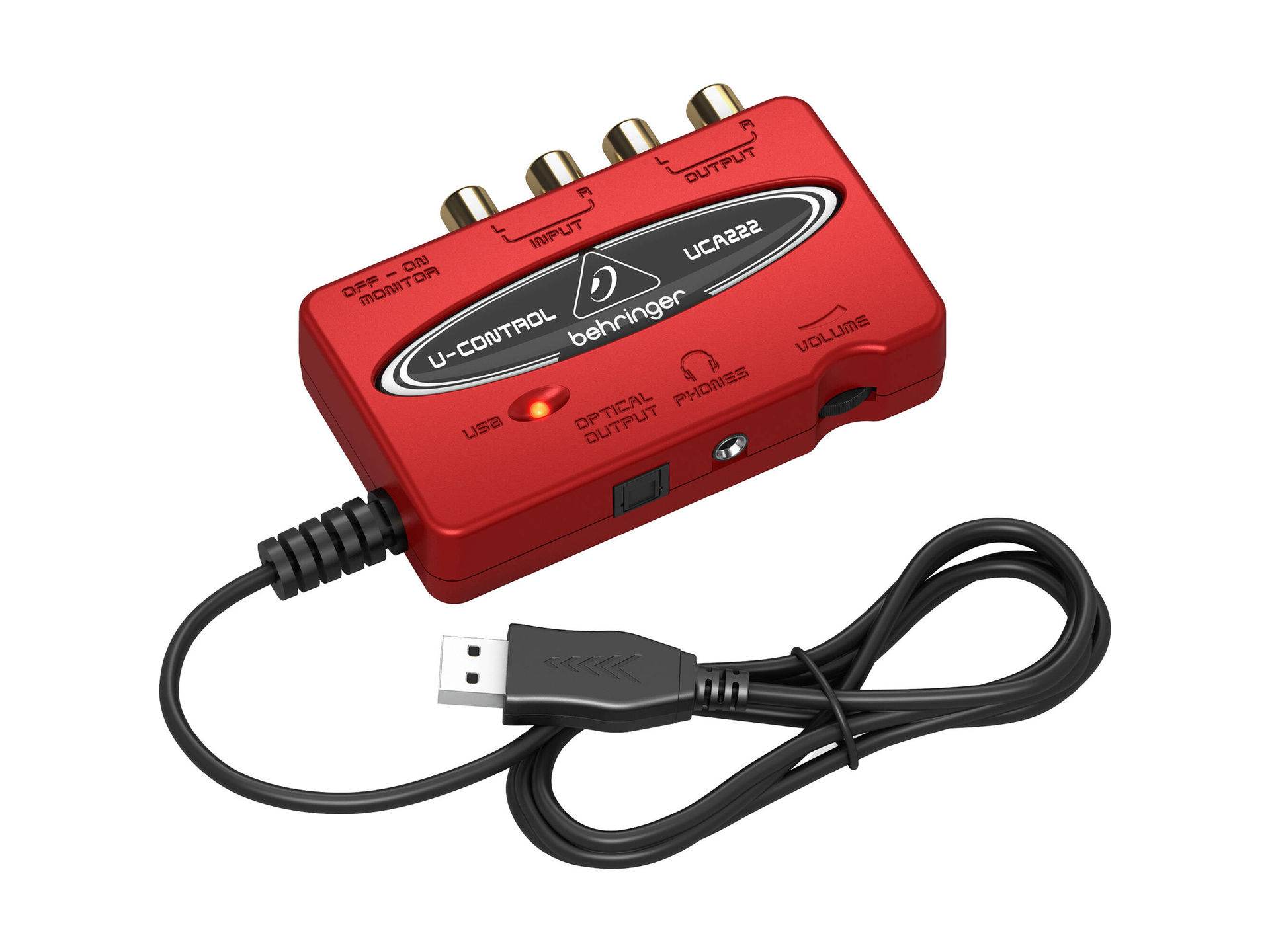

Behringer UCA222 2-Channel USB Audio Interface

Product #2322 | SKU BEUCA222 | Behringer
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
Our Price $59
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 5 working days. Deliver to Auckland for $5.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 1 - 2 weeks
Click & Collect

Features

  • Highly Compact Portable Audio Interface
  • Recording and Playback Function
  • Up to 16-Bit / 48 kHz Sampling
  • TOSLINK S/PDIF Optical Output
  • Class Compliant, No Drivers Required
  • Fixed USB Cable for Host and Power

Description

Connect instruments and other audio devices to your computer with Behringer UCA222 2-Channel USB Audio Interface, a compact and cost-effective audio interface. Supporting both recording and playback, the UCA222 features 16-bit / 48 kHz sampling rates and a convenient fixed USB cable for easy host connections. It also includes a versatile optical S/PDIF digital output for added flexibility.

The UCA222 is class compliant, ensuring compatibility with macOS and Windows without the need for additional drivers. It is entirely bus powered, eliminating the need for extra power cables and outlets. Additionally, this interface offers a stereo 3.5mm headphone output for low-latency monitoring and a dedicated headphone volume control wheel. Its analogue I/O includes two stereo pairs of RCA connectors that support stereo or dual-mono signals.

Included with the UCA222 is a comprehensive software bundle that features the Audacity audio editor, podcasting software, and over 150 virtual instruments and FX plug-ins. These tools are available for download from the Behringer website, providing users with a wide range of creative options for their audio projects.

Specifications

Key Specs
Channels of I/O 2 Inputs / 2 Outputs
Maximum Sampling Rate 48 kHz / 16-Bit
Number of Microphone Inputs No
Analogue Audio I/O 2x RCA Unbalanced Line Input
2x RCA Unbalanced Line Output
1x 1/8" / 3.5 mm TRS Headphone Output
Digital Audio I/O 1x TOSLINK Optical S/PDIF In or Out
Host Connection 1x USB-A (Class-Compliant, with Included Cable)
Power Requirements USB Bus Power
Channels of I/O 2 Inputs / 2 Outputs
Built-In DSP No
Maximum Sampling Rate 48 kHz / 16-Bit
Number of Microphone Inputs No
Built-In Microphone No
Signal Processing
Pad No
High-Pass Filter No
Solo/Mute No
Connectivity
Analogue Audio I/O 2x RCA Unbalanced Line Input
2x RCA Unbalanced Line Output
1x 1/8" / 3.5 mm TRS Headphone Output
Phantom Power No
Digital Audio I/O 1x TOSLINK Optical S/PDIF In or Out
Host Connection 1x USB-A (Class-Compliant, with Included Cable)
Host Connection Protocol USB 1.1
USB (Non-Host) No
Sync I/O No
Network I/O No
MIDI I/O No
Expansion Slots No
Wireless No
Performance
Frequency Response 10 Hz to 20 kHz ±1 dB (at 44.1 kHz)
10 Hz to 22 kHz ±1 dB (at 48 kHz)
Maximum Input Level 2 dBV
Maximum Output Level 2 dBV
Impedance Inputs:
27 Kilohms
Outputs:
400 Ohms
SNR A/D Convertors:
89 dBA (at 1 kHz)
D/A Convertors:
96 dBA (at 1 kHz)
THD 0.05% (at -10 dBV)
Digital Audio
Sample Rates 32 / 44.1 / 48 kHz
Sample Rate Conversion No
Bit Depths 16-Bit
Sync Sources S/PDIF
Audio Storage & Playback
Media/Memory Card Slot No
Compatibility
OS Compatibility Windows / macOS
Processor Requirement PC:
1 GHz Intel (Minimum)
1 GHz AMD (Minimum)
Mac:
800 MHz Apple G4 or Better (Minimum)
RAM Requirements 512 MB
Required Hardware USB-A Port
Power
Power Requirements USB Bus Power
AC/DC Power Adapter 5 VDC at 100 mA
Physical
Dimensions 3.46 x 2.36 x 0.87" / 8.79 x 5.99 x 2.21 cm
Weight 3.5 oz / 100.0 g

In The Box

  • Behringer UCA222 2-Channel USB Audio Interface
