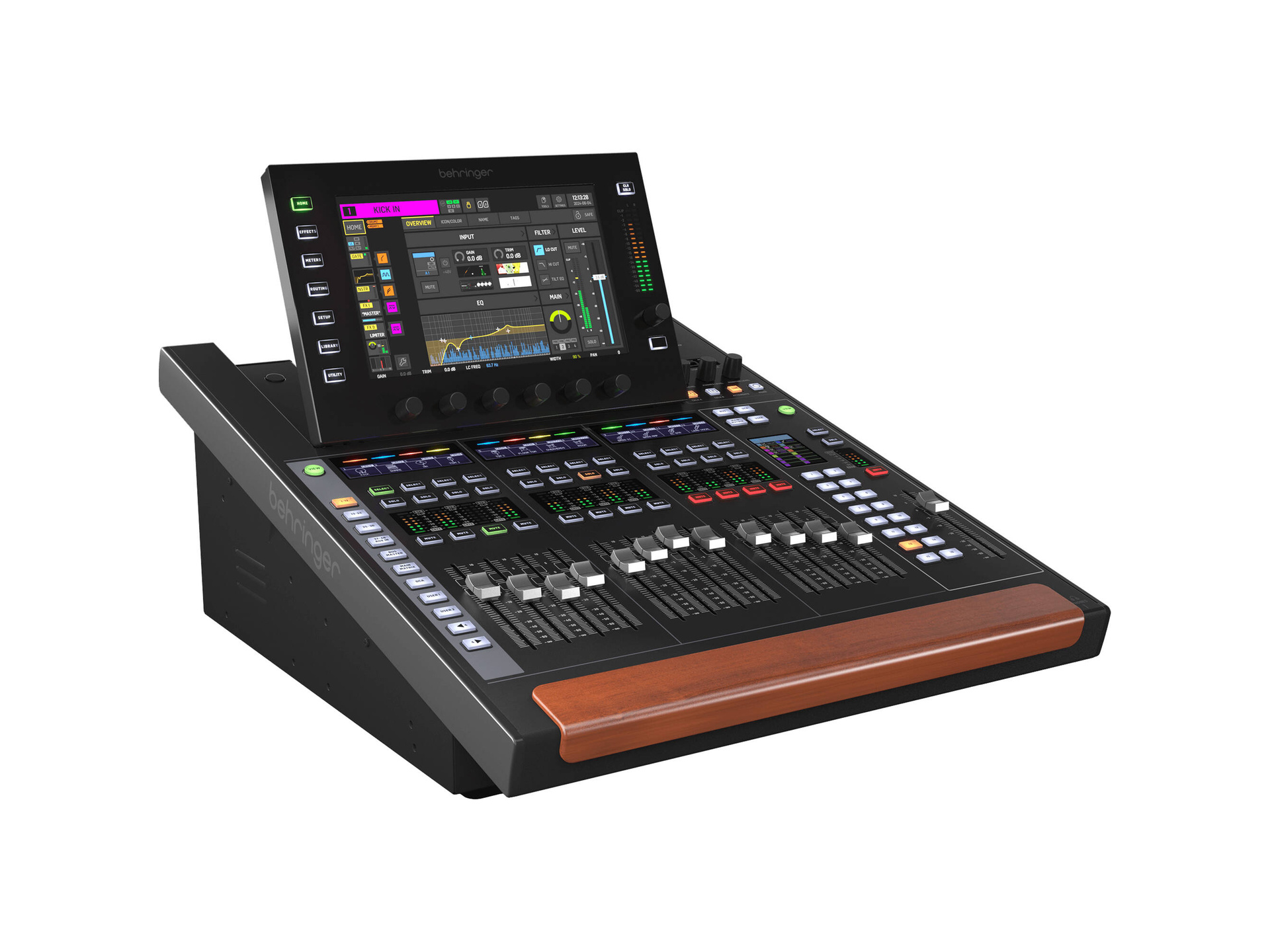

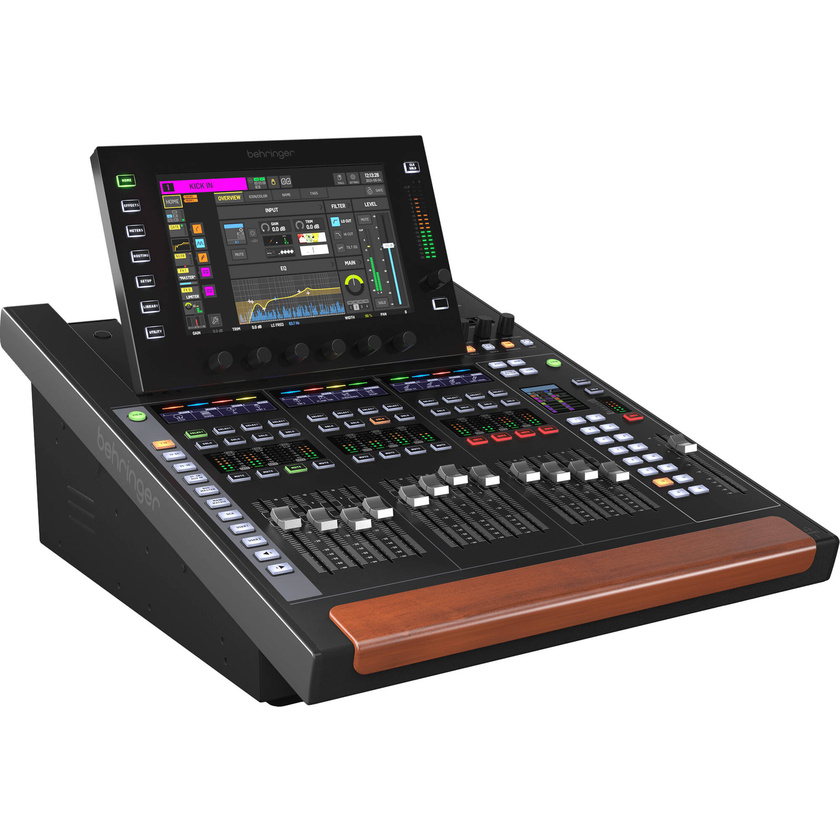

Behringer WING COMPACT 48-Channel / 28-Bus Full-Stereo Digital Mixing Console (Pro Black)

Product #118577 | SKU WING COMPACT | Behringer
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
Our Price $5,229
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 5 working days. Deliver to Auckland for $39 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 5 working days
Click & Collect

Features

  • Programmable MIDAS-Designed Mic Preamps
  • Local I/O: 24 XLR Inputs + 8 XLR Outputs
  • 12+1 Motorised Faders, 20 Custom Buttons
  • 48x48 USB Audio Interface
  • 64x64 Dual SD-Card Recorder
  • 10.1" TFT Colour Touchscreen Display

Description

Elevate your production to new heights with the Behringer WING COMPACT. This 40-channel, 28-bus full-stereo digital mixing console is designed to take your sound to the next level. With its 12+1 motorised faders, large 10" capacitive touchscreen interface, and touch-sensitive rotary controls, the WING COMPACT offers a new level of ease and intuitiveness.

Customisation is key with this mixer. It features three separate fader sections and a Custom Control section that can be easily tailored to meet your specific requirements. With 24 Midas PRO mic preamps and eight XLR outputs, as well as a 1/4" TRS headphone output, the WING COMPACT has all the I/O you need.

But that's not all. The WING COMPACT also offers expandability options. With three AES50 SuperMAC ports, a StageCONNECT port, and optional expansion cards for audio interfaces, digital network bridges, MADI, and ADAT/WC, you can easily expand the number of I/O options available to you.

In addition, the WING COMPACT features three variable plug-in processing slots for all 40 stereo input channels. Each slot can host plug-ins based on iconic vintage analogue equalisers and compressors, as well as an insert FX slot and 4-band parametric AEQ for all 8 stereo aux channels.

Take your production to the next level with the black Behringer WING COMPACT. Its innovative features and customizable options make it the perfect choice for any professional audio setup.

Specifications

Key Specs
Max I/O Capacity 48x Input / 28x Output
Number of Analogue Input Channels 24 (24 Mono / 0 Stereo)
Number of Mic Preamps 24
Number of Analogue Output Channels 8
Faders & Level Adjustment 13x 3.9" / 100 mm Motorised Channel Fader(Touch Sensitive)
Analogue Inputs 24x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
Analogue Outputs 8x XLR 3-Pin Main/Bus Output
1x 1/4" TRS Unbalanced Stereo Headphone Output
Digital I/O 2x RJ45 Ethernet (Control, 1 Gb/s)
3x RJ45 AES50 (I/O)
1x XLR AES3 Input (I/O)
1x XLR AES3 Output
1x XLR Input/Output (I/O)
USB I/O 1x USB-B 2.0 (Audio Playback, Control, Multitrack Record)
Wireless No
Rack Mountable No
Mixer
Max I/O Capacity 48x Input / 28x Output
Number of Analogue Input Channels 24 (24 Mono / 0 Stereo)
Number of Mic Preamps 24
Number of Analogue Output Channels 8
Mix Routing 28x Stereo Bus
Groups No
Presets No
Display Main Display:
10.1" LCD Touchscreen (Daylight-Viewable)
Channel Display:
2.4" LCD
Faders & Level Adjustment 13x 3.9" / 100 mm Motorised Channel Fader(Touch Sensitive)
Metres 2x 18-Segment LED
Signal Processing
Gain/Trim Range Mic:
0 dB to +72 dB
Input Polarity Normal/Reverse
Dynamic Processing Input Channels:
Compressor, Limiter, Soft Limiter, Gate
AEQ 4-Band AEQ
Graphic AEQ Yes
Solo/Mute Solo, Mute per Input Channel
Mute per Master
Audio Delay Yes
Automatic Mic Mixing No
Digital Audio
Sample Rates Up to 192 kHz
Bit Depth AD/DA Conversion:
24-Bit
Performance
Frequency Response 10 Hz to 20 kHz +0/-1 dB (at 48 kHz)
Max Input Level XLR Mic Input:
+21 dBu
Analogue Dynamic Range 111 dB
Headphone Output Power 500 mW per Channel into 75 Ohms
I/O Impedance XLR Mic Input:
1 Kilohms (Unbalanced)
2 Kilohms (Balanced)
XLR Output:
75 Ohms (Balanced/Unbalanced)
Noise Floor -97 dBu A-Weighted
THD+N Mic Input to Analogue Output:
0.006% at +40 dB Gain (+20 dBu, Output)
0.004% at Unity Gain (0 dBu, Output)
Signal Generator No
Connectivity
Analogue Inputs 24x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
Analogue Outputs 8x XLR 3-Pin Main/Bus Output
1x 1/4" TRS Unbalanced Stereo Headphone Output
Phantom Power +48 V (Selectable on Individual Inputs)
Digital I/O 2x RJ45 Ethernet (Control, 1 Gb/s)
3x RJ45 AES50 (I/O)
1x XLR AES3 Input (I/O)
1x XLR AES3 Output
1x XLR Input/Output (I/O)
MIDI I/O 1x MIDI 5-Pin In
1x MIDI 5-Pin Out
USB I/O 1x USB-B 2.0 (Audio Playback, Control, Multitrack Record)
USB I/O Capacity 48x Input / 48x Output
Other I/O 1x 1/4" TRS GPIO In/Out
Expansion Ports No
Wireless No
External Display I/O No
Max Multitrack Recording 64 Tracks
Media Support SD, SDHC
Compatibility
Mobile Device Compatibility iPad
Android Tablet
Power
Input Power 100 to 240 VAC, 50 / 60 Hz
Physical
Rack Mountable No
Dimensions 22.6 x 17.8 x 8.9" / 57.4 x 45.2 x 22.6 cm
Weight 34 lb / 15.4 kg

In The Box

  • Behringer WING COMPACT 48-Channel / 28-Bus Full-Stereo Digital Mixing Console (Pro Black)
  • Power Cord

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Behringer WING COMPACT 48-Channel / 28-Bus Full-Stereo Digital Mixing Console (Pro Black)
  • Manufacturer: Behringer
  • Model: WING COMPACT
  • SKU: WING COMPACT
  • RM Product #: 118577
  • Warranty: 1 year manufacturer warranty view terms
