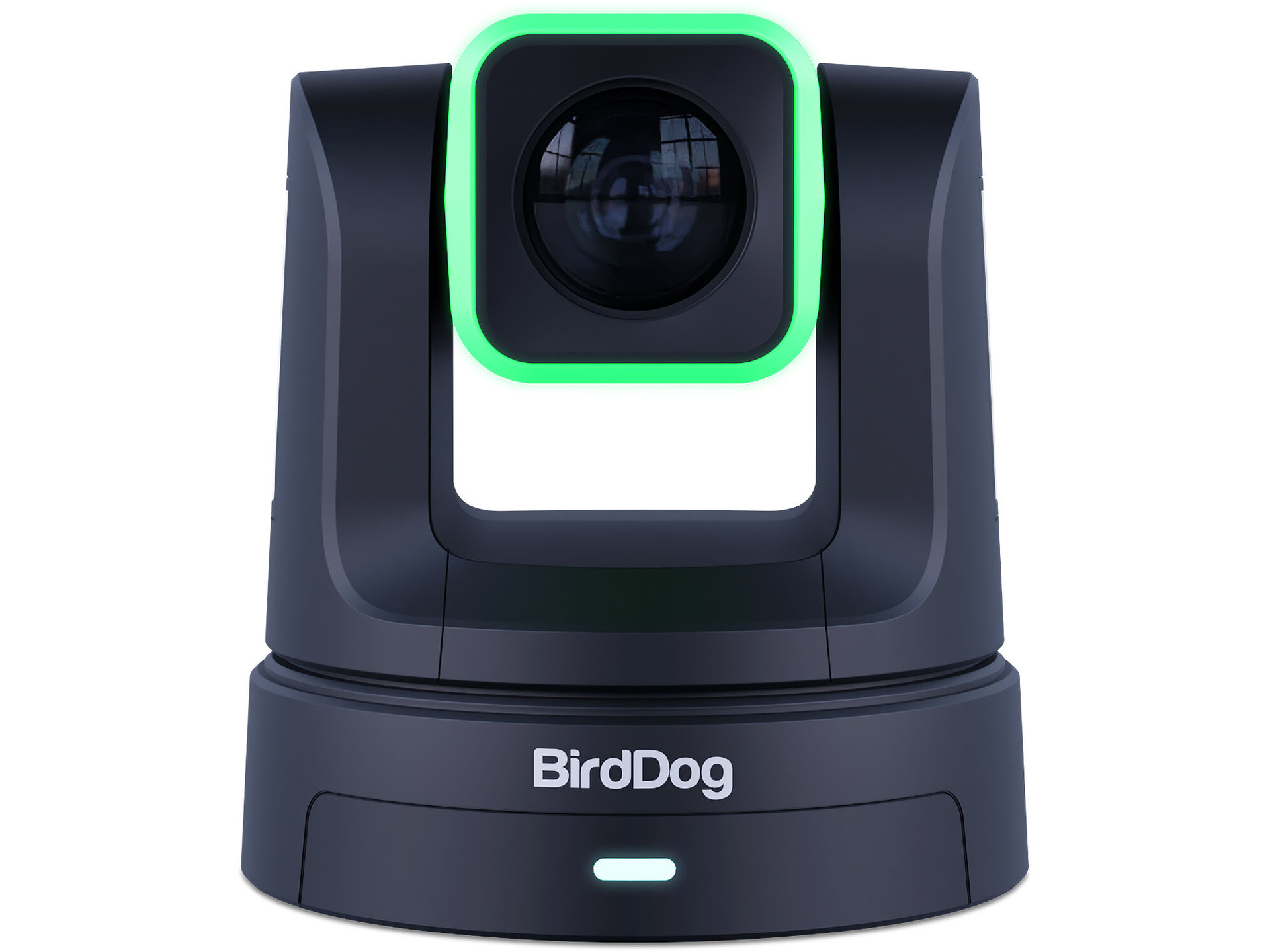

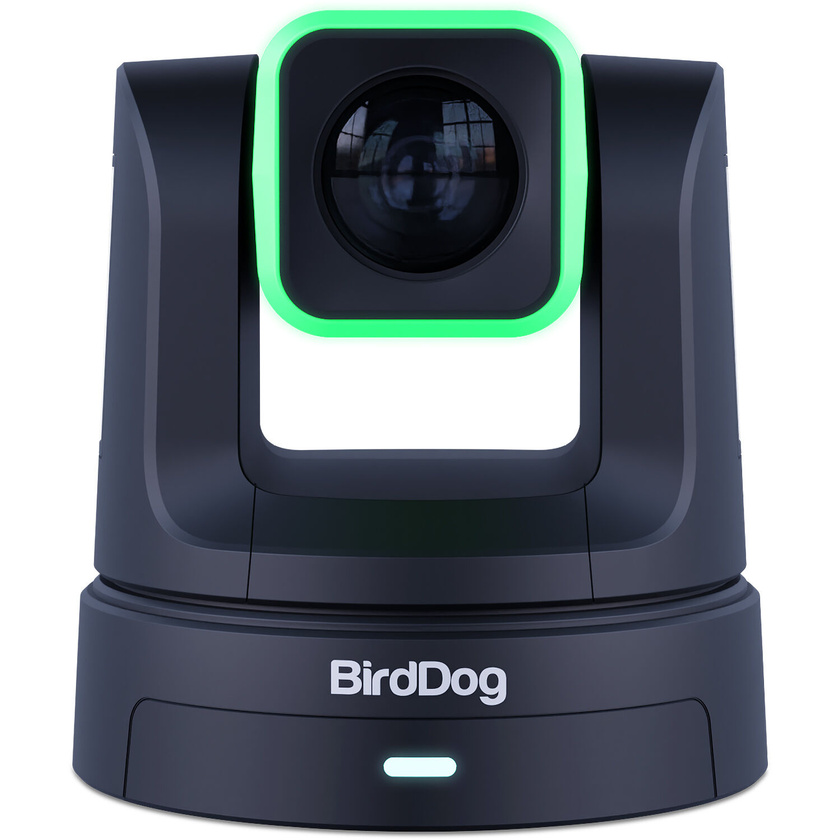

BirdDog X5 Ultra PTZ Camera with 20x Optical Zoom (Black)

Product #116755 | SKU BDX5UB | BirdDog
In stock with Supplier Ships in 3 - 5 working days what does this mean?
Our Price $6,899
In stock with Supplier Ships in 3 - 5 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Ships in 3 - 5 working days. Deliver to Auckland for $15 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 4 - 6 working days
Click & Collect

Features

  • Capture up to UHD 4K60 Resolution Video
  • 20x Zoom, AI Auto Tracking/Framing
  • Built-In NDI|HX3 Support
  • 12G-SDI, HDMI 2.0 & USB/UVC Outputs
  • 2 x Integrated 2.93" E-Ink Displays
  • Built-In Halo Tally, PoE+ Support

Description

Update your production to 4K and ensure that your subjects stay in frame with the advanced AI auto framing feature of the remarkable BirdDog X5 Ultra PTZ Camera with 20x Optical Zoom. This camera, equipped with a 20x optical zoom and color matrix, provides excellent low-light performance and supports NDI|HX3. Additionally, the X5 Ultra boasts 12G-SDI and HDMI 2.0 outputs for capturing UHD 4K60, Gigabit Ethernet, and PoE+ support. It also features two 2.983" E-Ink displays, making it highly versatile.

For seamless connectivity, the X5 Ultra comes with an NDI|HX decoder that simplifies how you interface with your equipment by consolidating all the connections into a single cable. Moreover, the camera incorporates AI tracking technology that keeps your subject in focus by intelligently following their movements in real-time. This proves to be valuable whether you are managing a live event, capturing spontaneous moments in a hybrid environment, or tracking sports action.

The X5 Ultra offers various connectivity options, including 12G-SDI output, dual HDMI outputs, and support for multiple network formats such as NDI|HX3, SRT, RTMP, RTSP, and webcam connectivity via USB-C with UVC 1.1 support.

Another standout feature of the X5 Ultra is its dual always-on e-ink label displays. These displays provide easy access to controls and allow for customizable logos, helping to enhance your brand image. Even when the power is off, these labels ensure that your setup remains clear and each camera is easily identifiable.

To further simplify the operation of the X5 Ultra, BirdUI offers an intuitive interface that grants access to every function of the camera. This browser-based application can be accessed from anywhere on the same network as the X5 Ultra. Additionally, BirdUI provides a convenient dashboard for monitoring the camera and offers light and dark modes to suit your production environment.

Specifications

Key Specs
Image Sensor 1/2.8"-Type CMOS
Sensor Resolution Effective: 8.46 Megapixel (3840 x 2160)
Shutter Speed 1/1 to 1/10000 Second
Optical Zoom Ratio 20x
External Recording Modes HDMI / RJ45 / USB
UHD 4K (3840 x 2160) at 25/29.97/30.00/50/59.94/60.00 fps
HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Broadcast Output NTSC/PAL
IP Streaming H.264, H.265, NDI/HX3, RTMP, RTSP, SRT
1920 x 1080 at 25p, 29.97p, 30p, 50p, 59.94p, 60p
1280 x 720 at 50p, 59.94p, 60p
Supported Control Protocols IP
NDI
RS-232
RS-422
VISCA
PoE Support PoE+ 802.3at
Mounting 1x 1/4"-20 Female for Bracket/Tripod
Imaging
Image Sensor 1/2.8"-Type CMOS
Sensor Resolution Effective: 8.46 Megapixel (3840 x 2160)
IR Cut Filter No
Built-In ND Filter No
Focus Control Autofocus
Manual Focus
Exposure Control
Shutter Speed 1/1 to 1/10000 Second
Precise Scan Rate Control No
Signal-to-Noise Ratio 50 dB
Lens
Focal Length 5.4 to 104mm
Optical Zoom Ratio 20x
Field of View Horizontal: 56.6 to 3°
Vertical: 32.5 to 1.7°
Diagonal: 64.7 to 3.5°
Maximum Aperture f/1.6 to 3.6
Video Capture
External Recording Modes HDMI / RJ45 / USB
UHD 4K (3840 x 2160) at 25/29.97/30.00/50/59.94/60.00 fps
HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Embedded Audio HDMI/LAN (RJ45)/SDI
Broadcast Output NTSC/PAL
IP Streaming H.264, H.265, NDI/HX3, RTMP, RTSP, SRT
1920 x 1080 at 25p, 29.97p, 30p, 50p, 59.94p, 60p
1280 x 720 at 50p, 59.94p, 60p
Control
Presets 128
Move Speed Pan: 0.1 to 200°/sec
Tilt: 0.1 to 200°/sec
Movement Range Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)
Tally Light Yes
Supported Control Protocols IP
NDI
RS-232
RS-422
VISCA
Interface
Video I/O 1x HDMI 2.0 Output
1x HDMI 1.4 Output
1x BNC (12G-SDI) Output
1x USB-C 3.0 / 3.1/3.2 Gen 1 Output
1x RJ45 (NDI) Input/Output
Audio I/O 1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Other I/O 1x RJ45 (RS-232, RS-422, VISCA)
Built-In Speaker No
Power
PoE Support PoE+ 802.3at
Power I/O 1x Barrel (12VDC up to 2 A) Input
Power Consumption Device: 18 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 20 to 80%
General
Mounting 1x 1/4"-20 Female for Bracket/Tripod
Dimensions (W x H x D) 7.9 x 7.3 x 6.8" / 200.9 x 185.7 x 171.9 mm
Weight 5.09 lb / 2.31 kg (Body Only)

In The Box

  • BirdDog X5 Ultra PTZ Camera with 20x Optical Zoom (Black)
  • IR Remote Controller
  • 12 VDC Power Supply
  • USB-C Cable (5.9')

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: BirdDog X5 Ultra PTZ Camera with 20x Optical Zoom (Black)
  • Manufacturer: BirdDog
  • Model: X5 Ultra
  • SKU: BDX5UB
  • RM Product #: 116755
  • Resolution: 3840 x 2160
  • Optical Zoom: 20.00000x
  • PoE Capable: Yes
  • Interface: HDMI
