You can establish a connection between your 12G-SDI broadcast studio camera and SMPTE-2110 IP systems by utilising the Blackmagic 2110 IP Mini BiDirect 12G Converter. This convertor grants you the capability to transmit UHD 4K 12G-SDI camera video and programme return through a single convertor, while its compact design allows for convenient mounting onto your camera rig. Additionally, the convertor incorporates a 5-pin XLR talkback headset and a press-to-talk button to facilitate seamless communication between camera operators and the broadcast production booth.

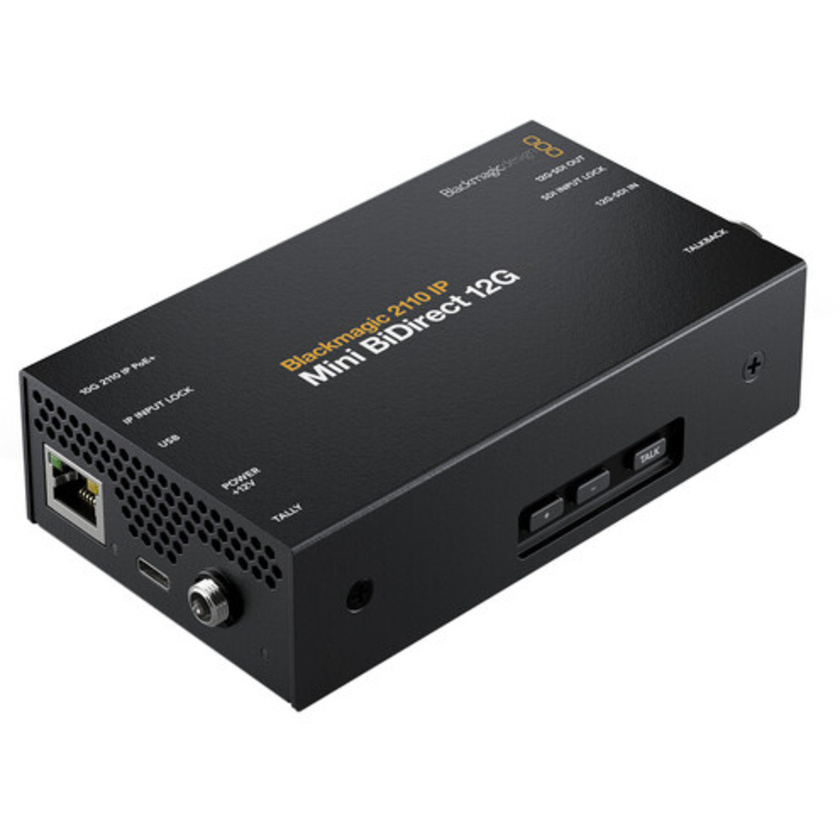

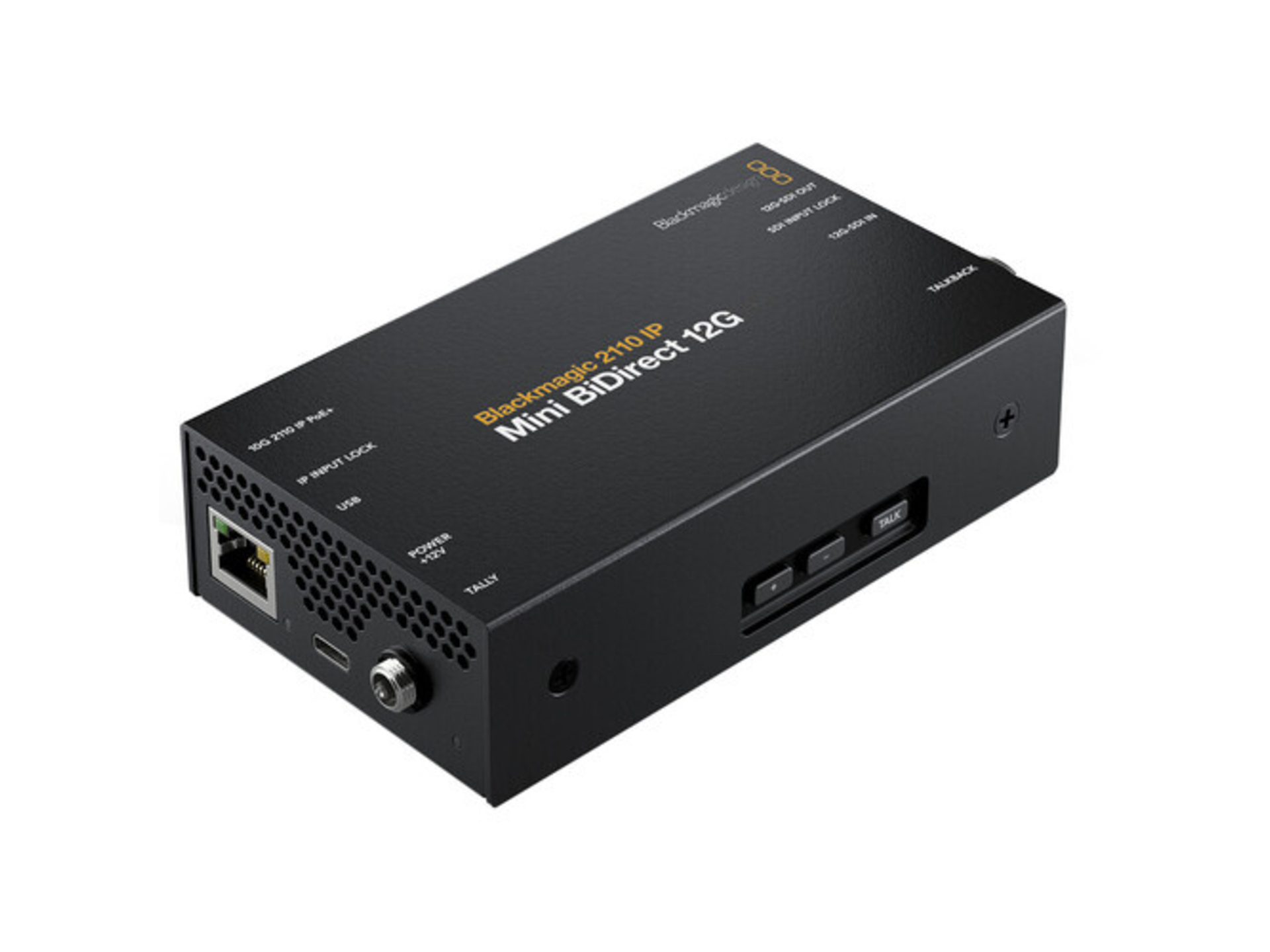

Blackmagic 2110 IP Mini BiDirect 12G Converter
In Stock with Supplier Usually ships in 3 - 5 working days
Our Price
$668
In Stock with Supplier Usually ships in 3 - 5 working days
Email me when stock arrives
Shipping & Availability
Usually ships in 3 - 5 working days.
Deliver to
Auckland
for $8.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
3 - 5 working days
Click & Collect
Features
- 12G-SDI to 2110 IP Convertor
- Video Monitoring To/From Studio Camera
- Supports UHD 4K Video via SMPTE-2110 IP
- 5-Pin XLR Talkback Control
- Windows/macOS Software Utility
- PoE and 10G Ethernet Power
Description
Specifications
| Key Specs | |
| Video I/O | Input 1x BNC (12G-SDI) Female Output 1x BNC (12G-SDI) Female |
| Audio I/O | Input 1x XLR 5-Pin Analogue Female Output 1x XLR 5-Pin Analogue Female |
| Video Resolution | BNC Input/Output (4:2:2) 4096 x 2160 up to 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 3840 x 2160 up to 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080p up to 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps |
| Wireless | No |
| Audio I/O | Input 1x XLR 5-Pin Analogue Female Output 1x XLR 5-Pin Analogue Female |
| Other I/O | Input/Output 1x RJ45 (10 GbE) Input 1x USB-C (Firmware) 1x USB-C (Device) |
| Expansion Slots | No |
| Video Resolution | BNC Input/Output (4:2:2) 4096 x 2160 up to 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 3840 x 2160 up to 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080p up to 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps |
| Embedded Audio | LAN (RJ45)/SDI |
| Standards | |
| HDCP Support | No |
| Hardware | |
| Wireless | No |
| Power | |
| Power I/O | 1x Barrel (12 VDC ) Input |
| PoE Support | PoE++ 802.3bt |
| General | |
| Operating Conditions | 41 to 104°F / 5 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C up to 90% Humidity |
| Dimensions | 5.75 x 2.91 x 1.34" / 14.61 x 7.39 x 3.4 cm |
| Weight | 10.41 oz / 295 g |
In The Box
- Blackmagic 2110 IP Mini BiDirect 12G Convertor
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Blackmagic 2110 IP Mini BiDirect 12G Converter
- Manufacturer: Blackmagic
- Model: 2110 IP Mini BiDirect 12G Converter
- SKU: CONVNVIPF/IP/12G
- RM Product #: 113565
