Easily connect your 12G-SDI broadcast studio camera to SMPTE-2110 IP systems over extended distances using the innovative Blackmagic 2110 IP Mini BiDirect 12G SFP Converter. This compact convertor enables the transmission of UHD 4K 12G-SDI camera video and programme return through a single device. Additionally, it can conveniently be mounted onto your camera rig. With its SFP connection, you can establish an optical fibre link for seamless connectivity over long distances. The convertor also boasts a 5-pin XLR talkback headset and a user-friendly press-to-talk button, allowing seamless communication between camera operators and the broadcast production booth.

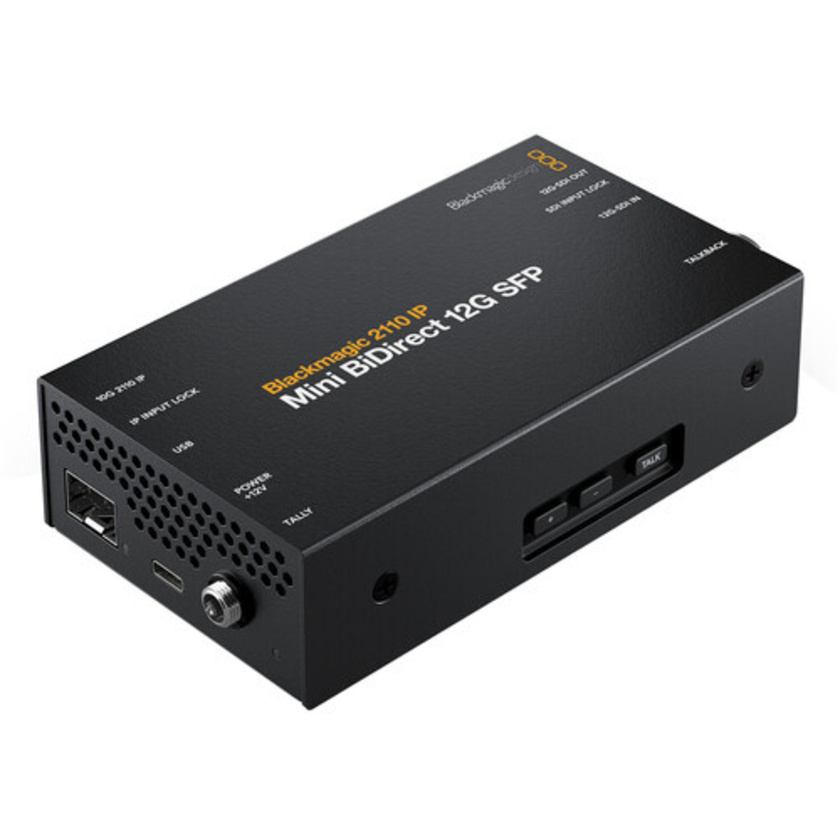

Blackmagic 2110 IP Mini BiDirect 12G SFP Converter
In Stock with Supplier Usually ships in 3 - 5 working days
Our Price
$668
In Stock with Supplier Usually ships in 3 - 5 working days
Email me when stock arrives
Shipping & Availability
Usually ships in 3 - 5 working days.
Deliver to
Auckland
for $12
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
3 - 5 working days
Click & Collect
Features
- 12G-SDI to SFP Fibre Convertor
- Video Monitoring To/From Studio Camera
- Supports UHD 4K Video via SFP Fibre
- Talkback Control
- Windows/macOS Software Utility
- PoE and 10G Ethernet Power
Description
Specifications
| Key Specs | |
| Video I/O | Input 1x BNC (12G-SDI) Female Output 1x BNC (12G-SDI) Female |
| Audio I/O | Input 1x XLR 5-Pin Analogue Female Output 1x XLR 5-Pin Analogue Female |
| Video Resolution | SDI Input/Output (4:2:2 YUV) 4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 25/29.97/30 fps 1280 x 720 at 50/59.94/60 fps 720 x 480i at 59.94 fps 720 x 576i at 50 fps |
| Wireless | No |
| OS Compatibility | macOS 13 or Later Windows 10 to 11 |
| Audio I/O | Input 1x XLR 5-Pin Analogue Female Output 1x XLR 5-Pin Analogue Female |
| Other I/O | Input/Output 1x RJ45 (10 GbE) Input 1x USB-C (Firmware) |
| Expansion Slots | 1x SFP Slot |
| Video Resolution | SDI Input/Output (4:2:2 YUV) 4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 25/29.97/30 fps 1280 x 720 at 50/59.94/60 fps 720 x 480i at 59.94 fps 720 x 576i at 50 fps |
| Embedded Audio | LAN (RJ45)/SDI |
| Standards | |
| Video Standard Compliance | SMPTE: ST-2110 |
| HDCP Support | No |
| HDR Support | Yes |
| Hardware | |
| Wireless | No |
| OS Compatibility | macOS 13 or Later Windows 10 to 11 |
| Power | |
| Power I/O | 1x Barrel (12 to 16 VDC ) Input |
| PoE Support | PoE++ 802.3bt |
| Power Consumption | Device: 12 to 16 VDC (18 W) |
| General | |
| Operating Conditions | 41 to 104°F / 5 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C up to 90% Humidity |
| Dimensions | 5.75 x 2.91 x 1.34" / 14.61 x 7.39 x 3.4 cm |
In The Box
- Blackmagic 2110 IP Mini BiDirect 12G SFP Convertor
