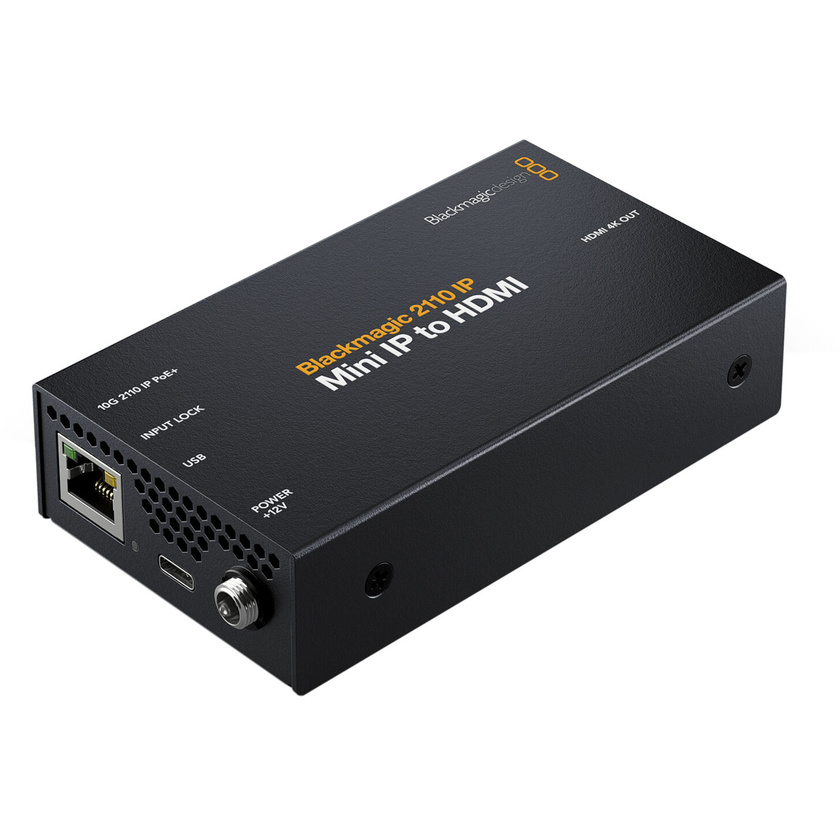

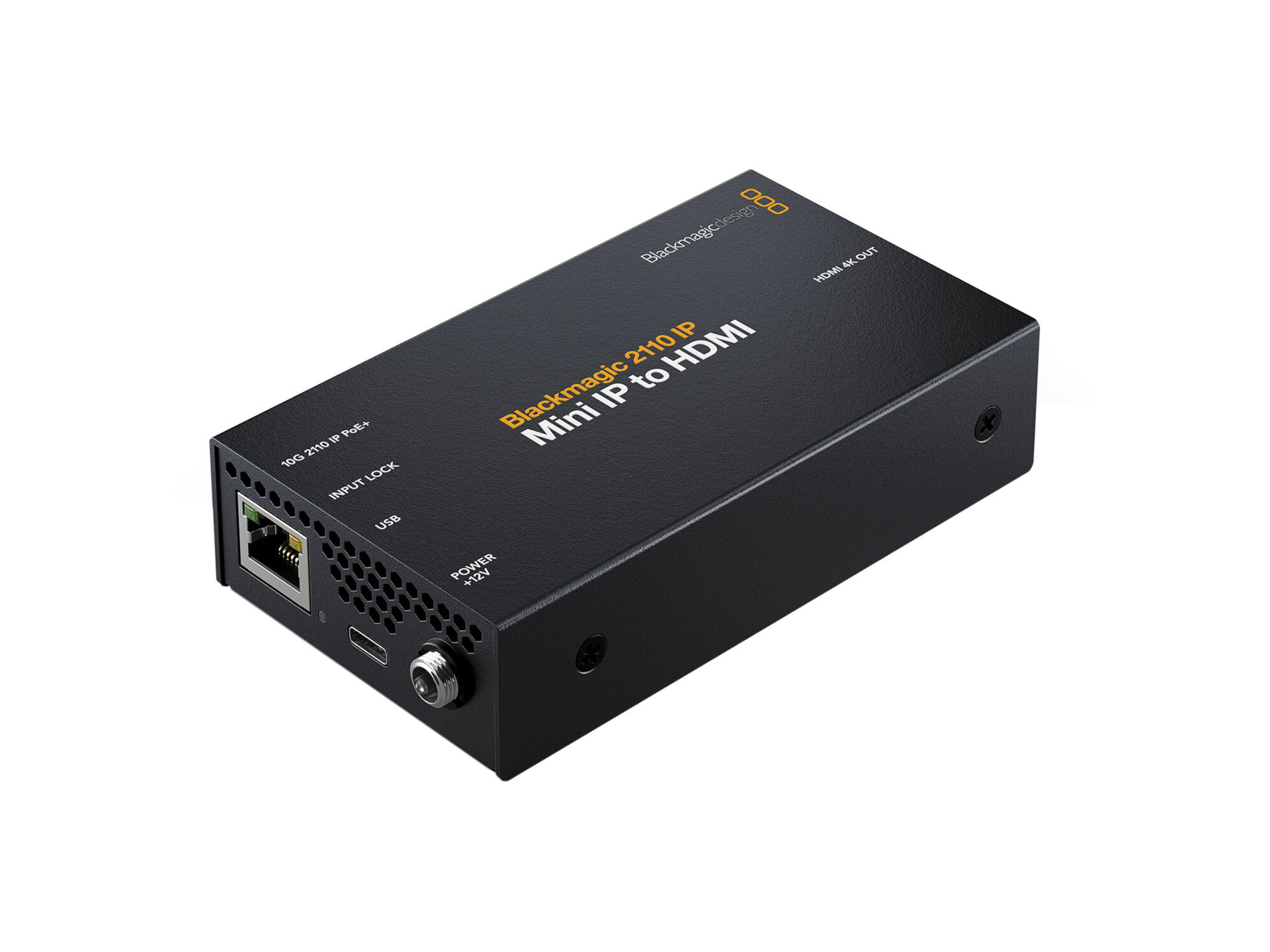

The Blackmagic 2110 IP Mini IP to HDMI Converter lets you monitor 2110 IP video and audio on any HDMI monitor or TV. Its compact design means it can be placed behind displays, while it connects and powers from 10G Ethernet and supports HD and Ultra HD standards to 2160p60. Also includes DC power supply.
Blackmagic 2110 IP Mini IP to HDMI Converter
Usually ships in 2 - 3 weeks
Our Price
$538
Usually ships in 2 - 3 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 2 - 3 weeks.
Deliver to
Auckland
for $7.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
2 - 3 weeks
Click & Collect
Features
- 2110 IP to HDMI Convertor
- Video Monitoring To/From Studio Cameras
- Supports UHD 4K Video via SMPTE 2110 IP
- Windows/macOS Software Utility
- PoE and 10G Ethernet Power
Description
Specifications
| Connections | |
| HDMI Video Outputs | 1 |
| HDMI Audio Outputs | 1 |
| SMPTE ST-2110 IP Video Inputs | 1 x 10G Ethernet |
| SMPTE ST 2110 IP Audio Inputs | 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. |
| Ethernet | 1 x 10Gb/s RJ‑45 PoE++ connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates. |
| Computer Interface | 1 x USB-C 3.0 for configuration and firmware updates. |
| SDI Video Standards | |
| HDMI HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 |
| HDMI Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| HDMI 4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. |
| HDMI Color Precision | 4:2:2 |
| HDMI Color Space | YUV |
| IP Video Compliance | |
| SMPTE 2110-20 (Uncompressed Video) | IGMP v2 |
| SMPTE 2110-21 (Traffic Shaping) | Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous |
| SMPTE 2110-30 (PCM) | Audio Conformance level: Level C |
| SMPTE 2110-40 (Ancillary Data) | Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. |
| Codec | Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. |
| Precision Time Protocol | IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 |
| NMOS IS-04 Discovery and Registration | v1.3.2 Peer-to-peer via mDNS/DNS‑SD |
| NMOS IS-05 Connection Management | v1.1.2 |
| NMOS BCP-002-01 | Natural Grouping |
| NMOS BCP-004-01 | Receiver capabilities |
| Displays | 1 x IP Input Lock LED indicator light |
| Operating Systems | Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11. |
| Power Requirements | |
| Power Supply | 1 x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries. 1 x RJ45 Ethernet connector for power from PoE++ power supplies. |
| Operational Voltage Range | 12 - 16 V |
| Power Usage | 18W |
| Environmental | |
| Operating Temperature | 5° to 40° C (41° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non‑condensing |
In The Box
- Blackmagic 2110 IP Mini IP to HDMI Converter
