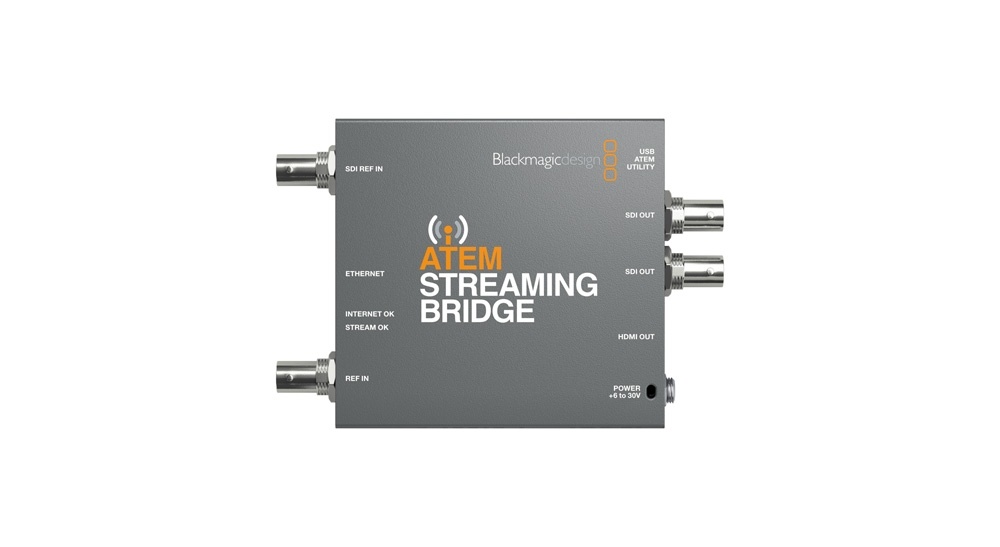

Blackmagic ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers

Product #75069 | SKU SWATEMMINISBPR | Blackmagic
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
Our Price $478
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 5 working days. Deliver to Auckland for $5.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 5 working days
Click & Collect

Features

  • For Any ATEM Mini Pro Streaming Switcher
  • HDMI and SDI Outputs
  • Up to 1080p60 Resolution Output
  • Direct, Network, and Internet Connection
  • IP Addressable, Software Controllable

Description

The Blackmagic ATEM Streaming Bridge offers customers the ability to receive an H.264 stream from any ATEM Mini Pro and convert it back to SDI and HDMI video. With this solution, users can now easily transmit video to remote locations through their local Ethernet network or globally via the internet. Utilizing advanced H.264 codecs, the ATEM Streaming Bridge ensures high quality video at extremely low data rates. This opens up possibilities for broadcasters and bloggers to collaborate on shows and create global networks of ATEM Mini Pro remote broadcast studios. Setting up the ATEM Streaming Bridge is a breeze, as the ATEM software utility enables the creation of setup files that can be conveniently emailed to remote ATEM Mini Pro studios. The ATEM Streaming Bridge truly harnesses the potential of the ATEM Mini Pro, making it an ideal choice for a remote broadcast studio.

ATEM Mini switchers provide an effortless solution for creating professional multi-camera productions that can be live streamed on platforms like YouTube. They are also perfect for innovative business presentations using Skype or Zoom. Simply connect the ATEM Mini and enjoy the ability to switch seamlessly between four high-quality video camera inputs, resulting in significantly improved image quality. Additionally, users can connect a computer to display PowerPoint slides or gaming consoles. The built-in DVE (Digital Video Effects) feature allows for exciting picture-in-picture effects, making it ideal for commentary purposes. Furthermore, there are a plethora of video effects available as well. The ATEM Mini Pro models come equipped with live streaming capabilities, allowing for direct connection to the ATEM Streaming Bridge. In addition, they offer HDMI output for projectors. With microphone inputs, users can easily incorporate high-quality desktop and lapel microphones for interviews and presentations.

Specifications

Inputs / Outputs
Audio Inputs No
Video Outputs 2x BNC (3G-SDI)
1x HDMI (1.4)
Audio Outputs No
Other I/O 1x RJ45
2x BNC Reference
Expansion Slots No
Format Support
Output Video Format HDMI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
SDI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
Standards
Video Standard Compliance SMPTE 259M/292M/296M/424M-B/425M-A/425M-B
IP Streaming
Video IP Decoding H.264: 1920 x 1080
Power
Power I/O 1x Barrel (6 to 30 VDC ) Input
Power Consumption Device: 6 W
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90% (Recommended)
General
Certifications COE, FCC, Kcc
Dimensions 5.28 x 3.63 x 0.9" / 13.41 x 9.22 x 2.29 cm
Weight 8.1 oz / 230 g

In The Box

  • Blackmagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers
