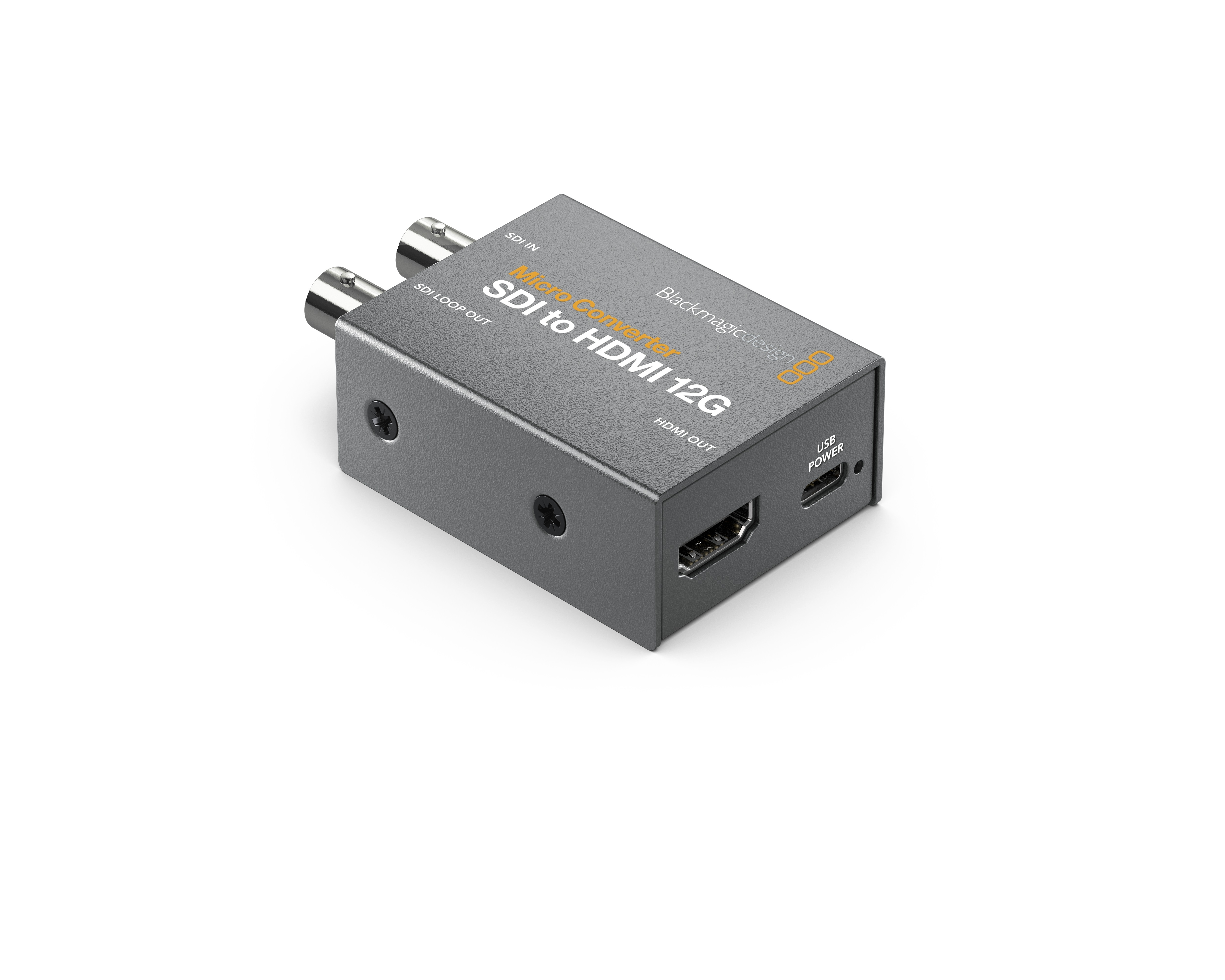

Blackmagic Micro Converter SDI to HDMI 12G with Power Supply

Product #91725 | SKU CONVCMIC/SH12G/WPSU | Blackmagic
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
Our Price $319
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 5 working days. Deliver to Auckland for $5.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 5 working days
Click & Collect

Features

  • 1 x 12G-SDI Input, 1 x HDMI Output
  • 1 x 12G-SDI Loop Output
  • Selectable SD/HD Level A/B SDI Ports
  • Supports up to DCI 4K60 Resolution I/O
  • Automatic Input Signal Detection
  • Compact, Rugged Design

Description

Super compact and rugged, the Blackmagic Micro Converter SDI to HDMI 12G with Power Supply allows for the connection of SDI cameras or computers to pro-style HDMI monitors, projectors, or displays. It is equipped with a 33-point LUT for precise color calibration. This compact convertor has one 12G-SDI input, one 12G-SDI loop output, and one HDMI output. It automatically detects and matches your SDI input to the HDMI output, supporting resolutions up to DCI/UHD 4K60.

The pocket-sized Micro Convertor SDI to HDMI 12G is designed for convenience with timecode support, SDI re-clocking for stability over long cable runs, and compatibility with a wide range of pro broadcast resolutions, including cine-style 48 fps. Its sturdy metal housing features power and signal LED status indicators, along with rugged connector interfaces. The USB Type-C port allows for easy connection and power supply from adapters, monitors, laptops, or desktop computers. It also facilitates firmware updates from a Windows or macOS computer. The convertor comes with a power supply and an international plug adapter set.

Specifications

Inputs / Outputs
Video Inputs 1x BNC (12G-SDI) Female
Audio Inputs No
Video Outputs 1x HDMI (2.0) Female
1x BNC (12G-SDI) Female (Loop Output)
Audio Outputs No
Other I/O 1x USB-C Control, Firmware Input
Expansion Slots No
Format Support
Input Video Format SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 24/25/29.97/30/47.95/48/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Output Video Format HDMI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Embedded Audio HDMI/SDI
Standards
Video Standard Compliance SMPTE 259M/292M/296M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084
HDCP Support Yes, Version 2.2
HDR Support Not Specified by Manufacturer
Hardware
OS Compatibility macOS 10.15.15 or Later
macOS 11.1 or Later
Windows 10
Power
Power I/O 1x USB-C (4.4 to 5.2 VDC ) Input
Power Consumption Device: 4 W
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90% ()
General
Dimensions 3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm
Weight 5.29 oz / 150 g

In The Box

  • Blackmagic Design Micro Convertor SDI to HDMI 12G with Power Supply
  • Power Supply

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Blackmagic Micro Converter SDI to HDMI 12G with Power Supply
  • Manufacturer: Blackmagic
  • Model: CONVCMIC/SH12G/WPSU
  • SKU: CONVCMIC/SH12G/WPSU
  • RM Product #: 91725
