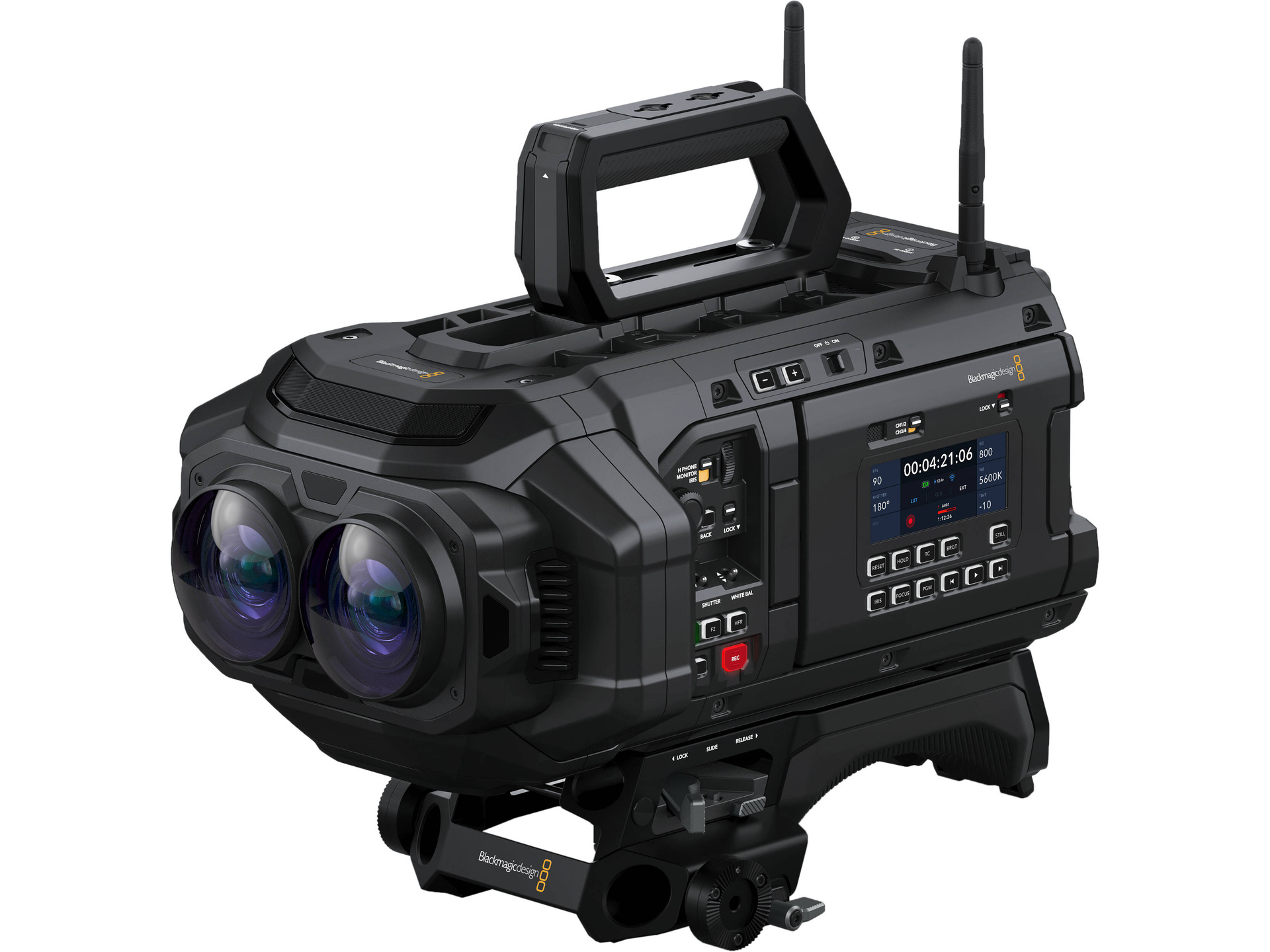

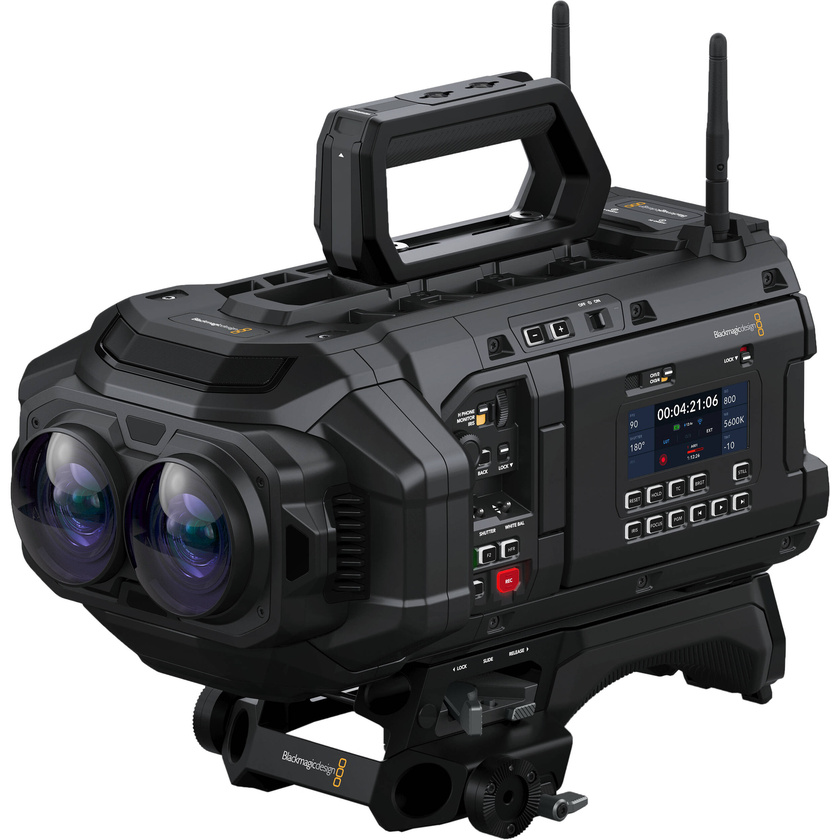

Blackmagic URSA Cine Immersive Camera

Product #122779 | SKU CINEURSAA24DS/IM | Blackmagic
Contact us for an ETA what does this mean?
Our Price $53,599
Contact us for an ETA what does this mean?
- +

Email me when stock arrives


Features

  • Apple Immersive Video Support
  • Dual 8160 x 7200 58.7MP Sensors
  • 180° Media Format
  • 8K Captured at up to 90 fps Supported
  • 16 Stops of Dynamic Range
  • Fold-Out 5" HDR Touchscreen Monitor

Description

Enter the realm of 180° media with the Blackmagic URSA Cine Immersive Camera. The innovative cinema camera boasts Apple Immersive Video support with dual 8160 x 7200 58.7MP sensors capable of capturing immersive 8K images at up to 90 fps and with a whopping 16 stops of dynamic range. The camera is equipped with a wide range of connectivity options, including 12G-SDI, 10G Ethernet, USB-C, and XLR for high-end professional audio capture. It records Blackmagic RAW files and has a convenient fold-out 5" touchscreen monitor with HDR support.

A set of antennas is included for high-speed Wi-Fi capability, along with a digital download code for DaVinci Resolve Studio editing software. Designed with a robust magnesium alloy chassis and lightweight carbon fiber polycarbonate skin, the URSA Cine Immersive provides reliability and easy mobility around the studio and on location. Power may be supplied via the integrated 8-pin LEMO connector on the rear of the camera using optional 12 and 24V power supplies or via the included B-mount battery plate when employing separately available high-voltage batteries like IDX, Blueshape, Core SWX, BEBOB, and more.

Features
  • Dual custom lenses for shooting Apple Immersive Video for Apple Vision Pro
  • Dual 8160 x 7200 (58.7MP) sensors for stereoscopic 3D immersive image capture
  • 16 stops of dynamic range
  • Lightweight, robust camera body with industry-standard connections
  • Generation 5 Color Science with new film curve
  • Each sensor supports 90 fps at 8K captured to a single Blackmagic RAW file
  • Includes high-performance Blackmagic Media Module 8TB for recording
  • High-speed Wi-Fi, 10G Ethernet, or mobile data for network connections
  • DaVinci Resolve Immersive Features
    • Monitoring on Apple Vision Pro from the DaVinci Resolve Studio timeline
    • Edit Blackmagic RAW Immersive video shot on URSA Cine Immersive
    • Immersive video viewer for pan, tilt, and roll
    • Complete post-production workflow for Immersive with edit, color, audio, and graphics
    • Export and deliver native files for viewing on Apple Vision Pro

Specifications

Effective Sensor Size 23.66 mm x 20.88 mm each
Sensors 2 x 8K sensors, Left eye and right eye.
Pixel Pitch 2.9 microns.
Lens Fixed focal length, 180°+ field of view, stereo lens pair.
Dynamic Range 16 Stops
Shooting Formats 8160 x 7200 x 2 (stereo immersive)
Frame Rates Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 and 90 fps supported.
High Speed Frame Rates 8K stereo immersive up to 90 fps.
Built in ND Filters Button activated ND filters with clear, 2‑stop, 4‑stop, 6‑stop and 8‑stop IR ND filters
Iris Control Fixed iris
Screens 2 x Monitoring Screens
1 x Camera Status Screen
Monitoring Screen Dimensions 5 inch
Monitoring Screen Resolution 1920px x 1080px
Monitoring Screen Brightness 1500 nits
Monitoring Screen Type LCD capacitive touchscreen
Monitoring Options Left Eye, Right Eye, Punch In
Controls Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 3 assignable shortcut keys on PYXIS Monitor. Fischer connector for remote run/stop
Connections
Total Video Outputs 2
SDI Rates 1.5G, 3G, 6G, 12G
Analog Audio Inputs 2 x XLR analog switchable between mic, line and AES audio. Phantom power support
Analog Audio Outputs 1 x 3.5mm headphone jack
Reference Inputs Tri-Sync/Black Burst and Timecode
USB-C Monitor Outputs 2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors
Computer Interface 2 x USB-C side expansion ports for camera accessories. Software updates using side USB-C closer to rear
Ethernet 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming

In The Box

  • Blackmagic Design URSA Cine Immersive Camera
  • Blackmagic Media Module (8TB)
  • 2 x Antenna
  • B-Mount Battery Plate
  • 250W Power Supply

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Blackmagic URSA Cine Immersive Camera
  • Manufacturer: Blackmagic
  • Model: CINEURSAA24DS/IM
  • SKU: CINEURSAA24DS/IM
  • RM Product #: 122779
