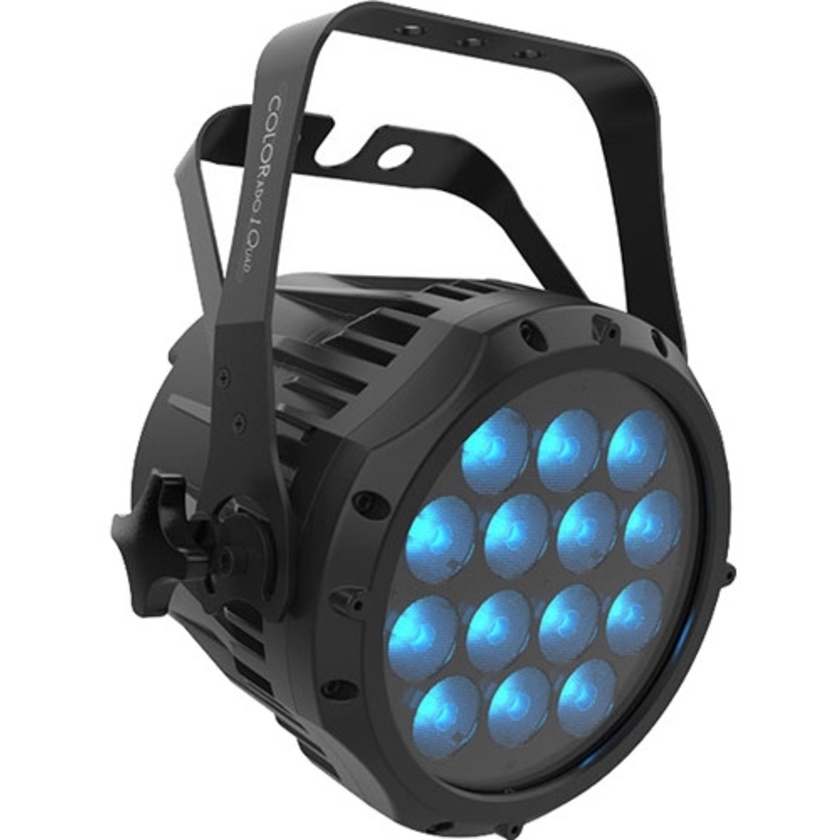

CHAUVET PROFESSIONAL COLORado 1-Quad Indoor/Outdoor Wash Light

Product #79755 | SKU COLORado 1 QUAD | Chauvet
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
Our Price $629
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 5 working days. Deliver to Auckland for $23 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 5 working days
Click & Collect

Features

  • 14 x 5W RGBW LEDs
  • 13° Beam Angle & 26° Field Angle
  • 3200 to 10,000K Colour Temperature
  • Built-In Auto & Custom Programmes
  • 8 x DMX Channel Modes

Description

Equipped with fourteen 5W LEDs, the compact Colourado 1-Quad from CHAUVET PROFESSIONAL is an RGBW (red, green, blue, white) LED fixture with a colour temperature range from 3200 to 10,000K, a 13° beam angle, and four selectable dimming curves. The fixture offers DMX and RDM control with three RGB and six RGBW DMX personalities for programming versatility. The 5-pin XLR DMX connectors and Seetronic Powerkon power connectors are IP65-rated, allowing this fixture to operate in both indoor and outdoor environments, for touring, rental, or production work.

Other features include a standalone mode with automated and customisable programmes and a password-protected LED display.The Colourado 1-Quad comes equipped with a dual-yoke bracket that can be used for conventional mounting to a truss or lighting stand, or to create a variable-angle floor stand. A power cord and a gel frame holder are included in the package.

Key Features:

  • Robust RGBW LED wash light designed for touring, rental, and production work
  • Selectable, smooth dimming curves for programming versatility
  • IP65-rated power and 5-pin XLR connectors, designed for indoor and outdoor use
  • Colour temperature presets from 3200 to 10,000K
  • 8 x DMX channel modes
  • TOUR, TR16, and AR1.D RGB DMX personalities
  • ARC.2, AR2.D, AR2.S, SSP, 16-bit, and 8-bit RGBW DMX personalities
  • M12 GORE valve for internal equalisation
  • LED display with password protection
  • Double-bracket yoke doubles as floor stand

Specifications

Light Source 14 x RGBW LEDs, 5 W (350 mA)
Life Expectancy 50,000 Hours
Colour Temperature 2,800 to 10,000K
Beam Angle 13°
Field Angle 26°
Lumens 1633
Illuminance 1510 Lux at 16' / 5 m
Dimmer Electronic
Shutter/Strobe Electronic
Strobe Rate 0 to 14 Hz
Standalone Colour Mixing Yes
Colour Temperature Presets Yes
Dimming 5 x Modes
Dimmer Curves 4 x Curves
Built-In Programmes Yes, Automated
Custom Functions Customisable Programmes: Yes
Recall Custom Programmes: Yes
Protocols DMX, RDM
DMX Channel Modes 4, 5, 6, 7, 9, 10, 13, or 15
DMX Personalities RGB: TOUR, TR16, and AR1.D
RGBW: ARC.2, AR2.D, AR2.S, SSP, 16-Bit, and 8-Bit
DMX Connectors Input: XLR 5-pin
Output: XLR 5-pin
Power Connectors Input: Seetronic Powerkon (IP65-Rated)
Output: Seetronic Powerkon (IP65-Rated)
Input Voltage 100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power Linking 120 V: 15 Units
208 V: 25 Units
230 V: 27 Units
Power Consumption 120 V, 60 Hz: 109 W, 0.9 A
208 V, 60 Hz: 110 W, 0.5 A
230 V, 50 Hz: 112 W, 0.5 A
Power Cable Edison Plug to Seetronic Powerkon (IP65-Rated)
Power Cable Length 5' / 1.5 m
Certifications & Approvals COE, MET
Mounting Double-Bracket Yoke
Ambient Temperature -4 to 113°F / -20 to 45°C
IP Rating IP65 with Pressure-Equalising M12 GORE Valve
Housing Material Die-Cast Aluminium
Gel Frame Holder Accessory Holder / Gel Frame Size: 7.5" / 19.1 cm
Dimensions (L x W x H) 11.96 x 9.96 x 7.95" / 30.4 x 24.6 x 20.2 cm
Weight 9.8 lb 4.5 kg

In The Box

  • CHAUVET PROFESSIONAL Colourado 1-Quad Indoor/Outdoor Wash Light
  • Seetronic Powerkon IP65 Power Cord
  • 7.5" Gel Frame Holder
