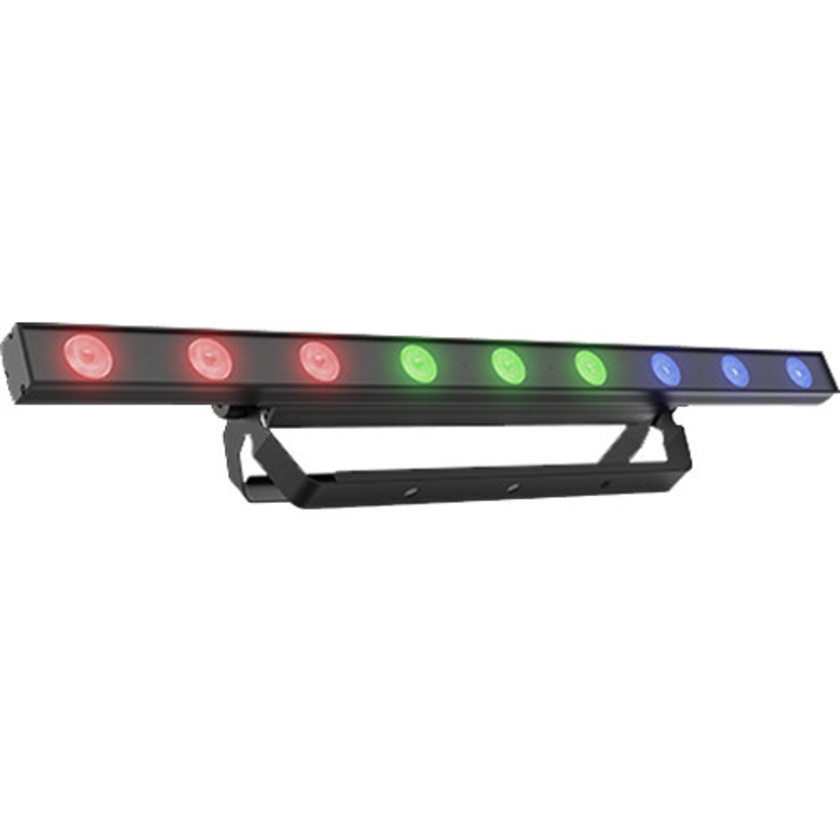

Chauvet DJ COLORband H9 ILS Hex Colour LED Strip

Product #104561 | SKU COLORband H9 ILS | Chauvet
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
Our Price $619
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 5 working days. Deliver to Auckland for $15 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 5 working days
Click & Collect

Features

  • Integrated Lighting System (ILS)
  • Chase Effect, Blinder, Colour Wash
  • RGBWA+UV Colour Mixing
  • 3 Zones of Control
  • Built-In Programmes + Sound Active Mode
  • DMX Channel: 6, 9, 11, 18, 23

Description

Feature-packed, flexible and fun describes the Chauvet DJ COLORband H9 ILS Hex Colour LED Strip, a full-sized hex-color LED strip light that functions as chase effect, blinder, or wall washer with 3 zones of control to create amazing chase effects. Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology.

Among the powerful features onboard is ILS compatibility with the cutting edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. But control options don’t stop there. COLORband H9 ILS also has D-Fi USB compatibility for wireless Master/Slave or DMX control and a built-in RF receiver compatible with the optional RFC and RFC-XL remotes. Of course, COLORband H9 ILS has convenient access to multiple prebuilt programs with or without DMX and is ideal for quiet applications due to silent operation and no moving parts.

Key Features
  • Full-size hex-color LED strip light functions as chase effect, blinder, or wall washer
  • Built-in RF receiver compatible with the optional RFC and RFC-XL remotes
  • ILS compatibility for use in the ILS ecosystem
  • D-Fi USB compatibility for wireless Master/Slave or DMX control
  • Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology
  • 3 zones of control create amazing chase effects
  • Convenient access to multiple prebuilt programs with or without DMX
  • Includes multiple DMX personalities for a wide variety of programming styles
  • Ideal for quiet applications due to silent operation and no moving parts
  • Easily transports in the optional CHS-60 VIP gear bag

Specifications

Light
Fixture Type Linear/Bar Light
Light Source 9 x Colour/UV LED - 10 W / 1.09 A
Light Source Life Expectancy 50,000 Hours
Colours Red, Green, Blue, Amber, White, Ultraviolet
Pixel Configuration 3 x Zones
Photometrics 327.8 fc / 3529 Lux at 6.56' / 2 m
Lumen Output 2977 Lumens
Beam Angle 23°
Field Angle 41°
Shutter / Strobe Electronic
Iris No
Zoom Adjustment None
Dimming Electronic, 0 to 100%
Performance
Operating Modes Automatic, DMX, Primary/Secondary, Sound-Active, Standalone, Static Colour
Macros / Programmes None
Effects None
Strobe Rate 0 to 16 Hz
Gobos None
Control
Control Protocols DMX512
DMX Channel Modes 5 Mode(s):
6 / 9 / 11 / 18 / 23-Channel
Display / Controls LED / 4-Button
Remote Control D-Fi USB, IR Remote (with Optional Equipment)
Mobile App Compatible No
*As of December, 2022: Cheque with manufacturer for the most up-to-date compatibility
Connectivity
Inputs/Outputs 2 x XLR 3-Pin DMX Input/Output
Power
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1 x powerCON
Output: 1 x powerCON
Power / Current Consumption 120 VAC, 60 Hz: 80 W / 1.1 A
230 VAC, 50 Hz: 79 W / 0.6 A
Power Linking 12 Units at 120 VAC
21 Units at 230 VAC
Environmental
IP Rating None
Environmental Protection None
Physical
Mounting Mounting Bracket
Included Accessories 1 x Power Cable
Duty Cycle None
Exterior Colour Black
Cooling Convection
Certifications COE, UKCA, RoHS, MET
*as per Manufacturer
Dimensions 39.4 x 6.8 x 2.2" / 100.1 x 17.3 x 5.6 cm
Weight 7.2 lb / 3.3 kg

In The Box

  • CHAUVET DJ COLORband H9 ILS Hex Colour LED Strip
  • Power Cord
  • Hanging Bracket and Mounting Hardware
